Key:
M1:
Motor
X1:
Terminal block for mains connection
X2:
Terminal block for motor
X11:
Sockets for digital end position system with safety
circuit (SAFETY CIRCUIT)
X14:
Terminal block for voltage selection
Connection:

Connect the digital end position system to the control.

Connect the control to the motor.

Connect the control to the mains power supply.

Cable groups must be secured directly before their relevant
terminals using a cable tie.
Ô "11. Technical data" on page 28

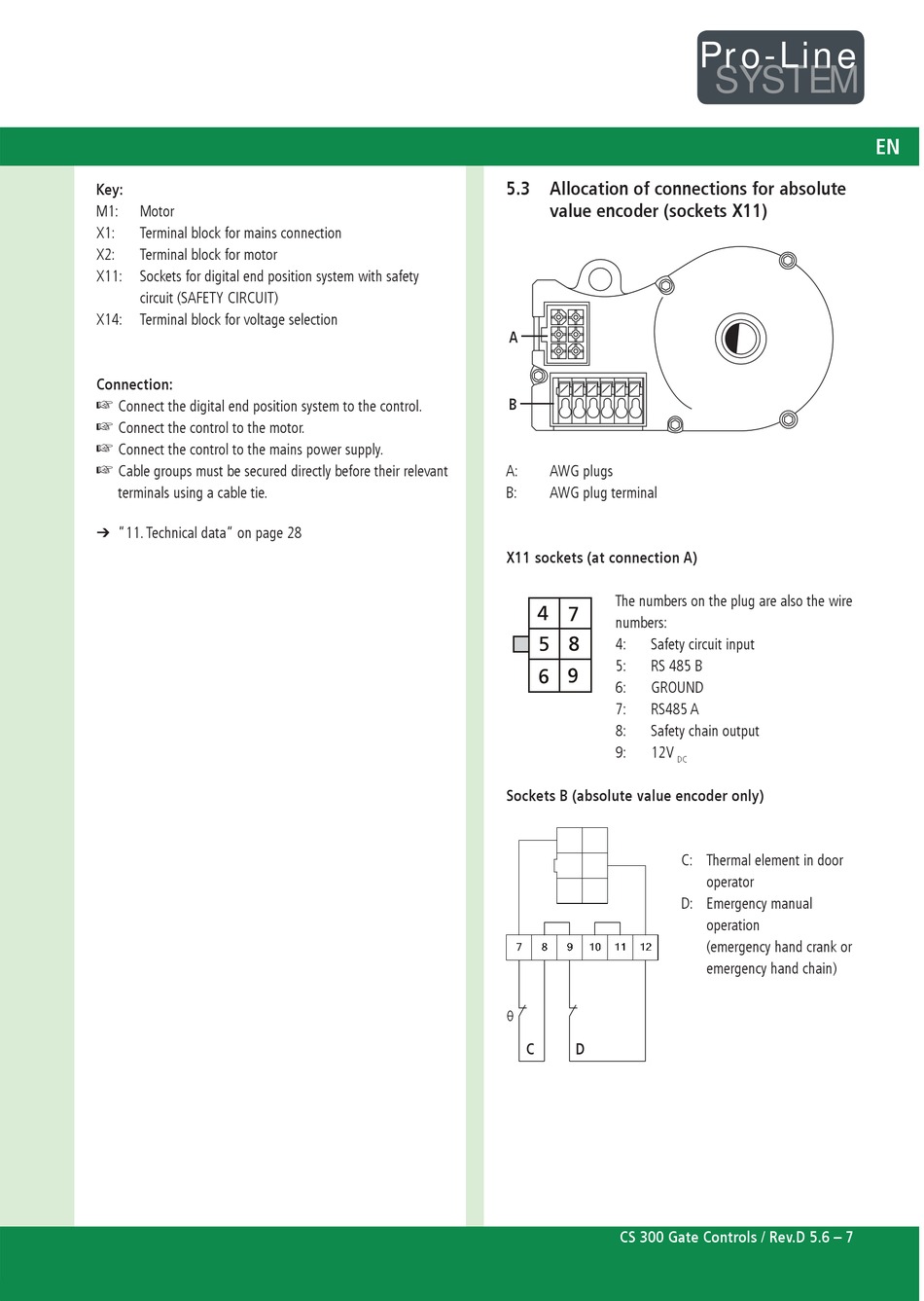

5.3
Allocation of connections for absolute
value encoder (sockets X11)
A
B
A:
AWG plugs
B:
AWG plug terminal
X11 sockets (at connection A)
The numbers on the plug are also the wire
numbers:
4:
Safety circuit input
5:
RS 485 B
6:
GROUND
7:
RS485 A
8:
Safety chain output
9:
12V
DC
Sockets B (absolute value encoder only)
C
D
CS 300 Gate Controls / Rev.D 5.6 – 7
Pro-Line
SYSTEM
C: Thermal element in door
operator
D: Emergency manual
operation
(emergency hand crank or
emergency hand chain)
