9.

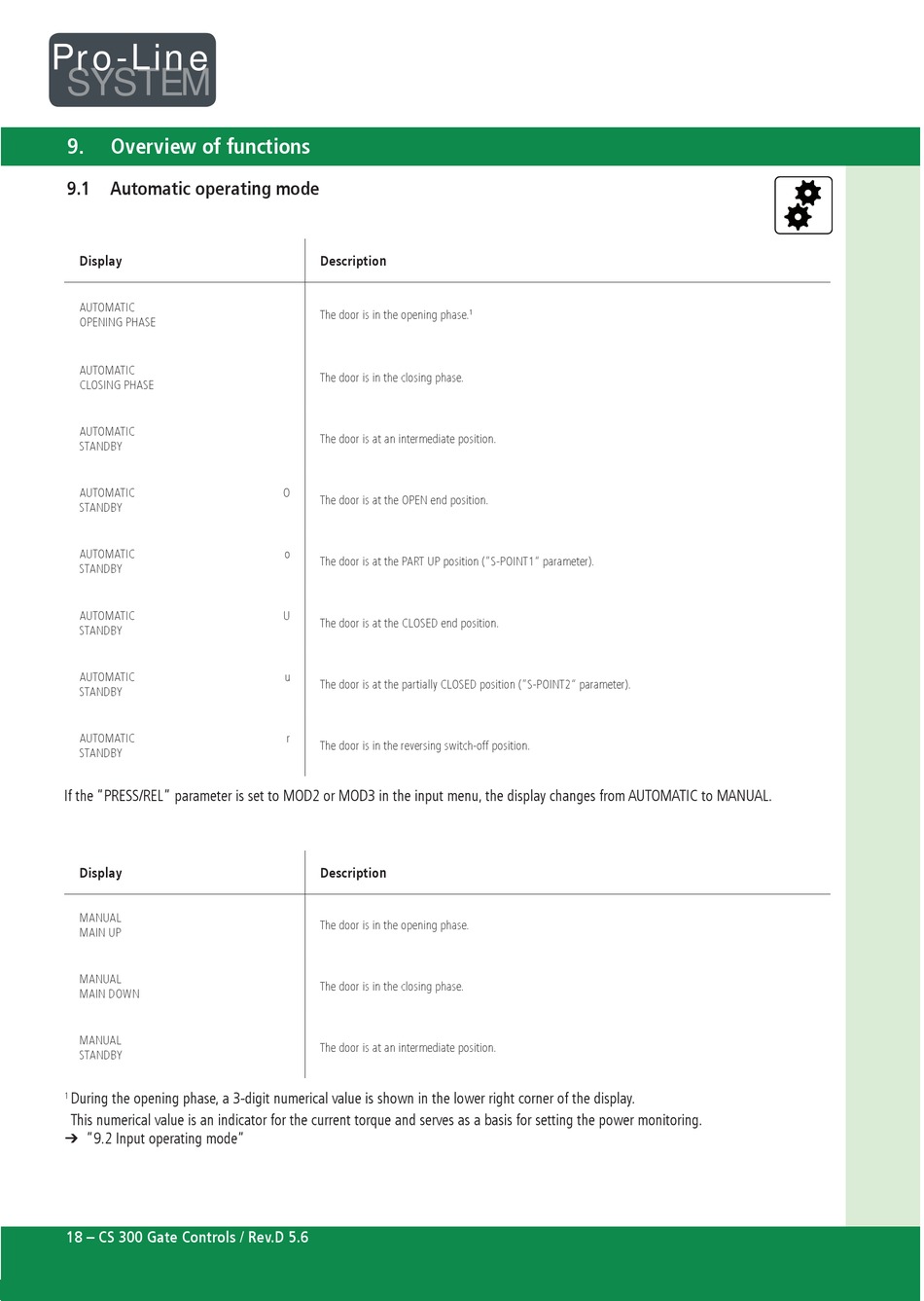

Overview of functions

9.1 Automatic operating mode
Display
AUTOMATIC
OPENING PHASE
AUTOMATIC
CLOSING PHASE
AUTOMATIC
STANDBY
AUTOMATIC
STANDBY
AUTOMATIC
STANDBY
AUTOMATIC
STANDBY
AUTOMATIC
STANDBY
AUTOMATIC
STANDBY
If the "PRESS/REL" parameter is set to MOD2 or MOD3 in the input menu, the display changes from AUTOMATIC to MANUAL.
Display
MANUAL
MAIN UP
MANUAL
MAIN DOWN
MANUAL
STANDBY
During the opening phase, a 3-digit numerical value is shown in the lower right corner of the display.
1
This numerical value is an indicator for the current torque and serves as a basis for setting the power monitoring.
Ô "9.2 Input operating mode"
18 – CS 300 Gate Controls / Rev.D 5.6
Description
The door is in the opening phase.
The door is in the closing phase.
The door is at an intermediate position.
O
The door is at the OPEN end position.
o
The door is at the PART UP position ("S-POINT1" parameter).
U
The door is at the CLOSED end position.
u
The door is at the partially CLOSED position ("S-POINT2" parameter).
r
The door is in the reversing switch-off position.
Description
The door is in the opening phase.
The door is in the closing phase.
The door is at an intermediate position.
1
