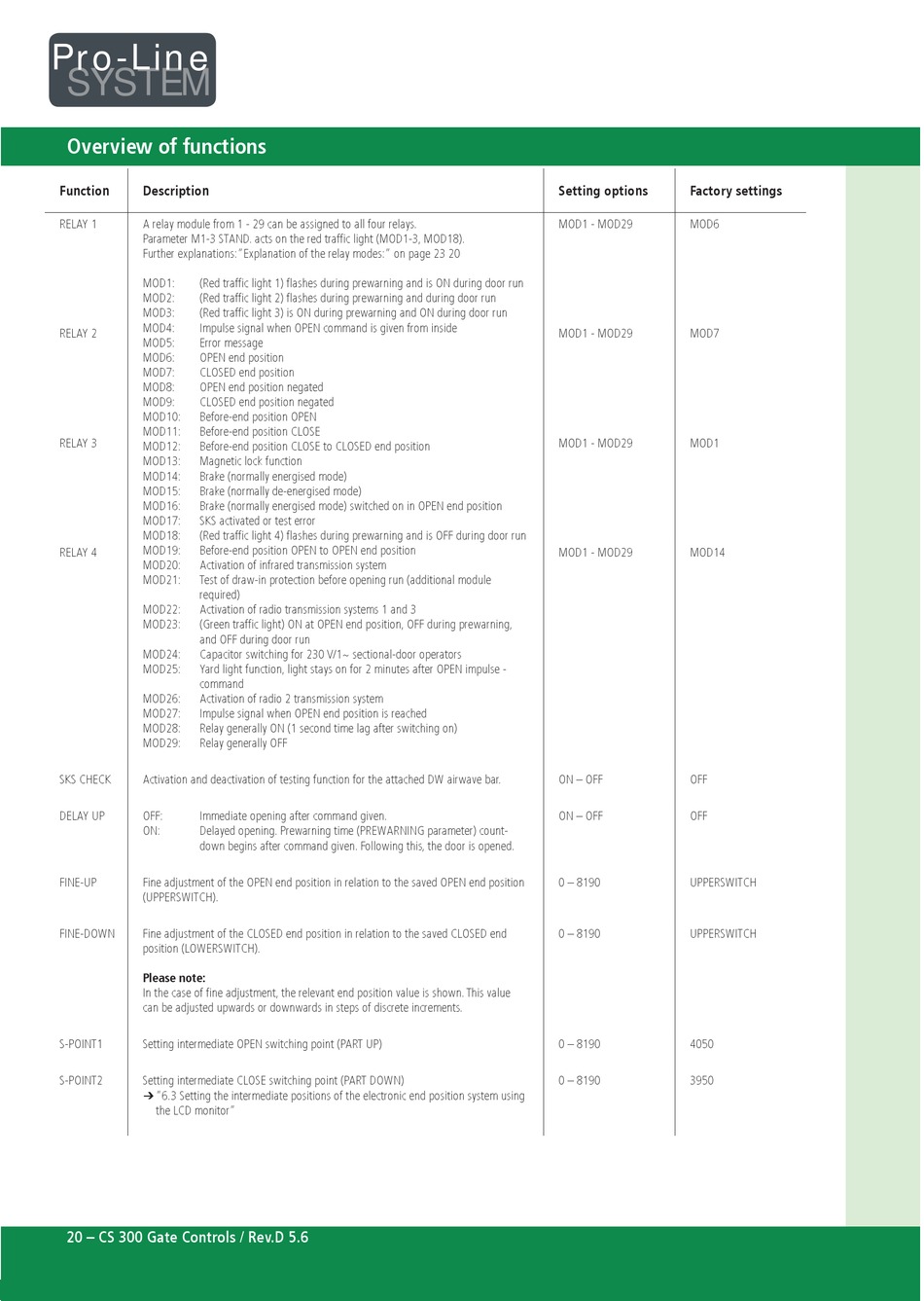

Pro-Line System CS300 Operating Instructions Manual page 20

Pro-Line
SYSTEM
Overview of functions
Function Description
RELAY 1 A relay module from 1 - 29 can be assigned to all four relays.
Parameter M1-3 STAND. acts on the red traffic light (MOD1-3, MOD18).
Further explanations:"Explanation of the relay modes:" on page 23 20
MOD1: (Red traffic light 1) flashes during prewarning and is ON during door run
MOD2: (Red traffic light 2) flashes during prewarning and during door run
MOD3: (Red traffic light 3) is ON during prewarning and ON during door run
MOD4: Impulse signal when OPEN command is given from inside
RELAY 2
MOD5: Error message
MOD6: OPEN end position
MOD7: CLOSED end position
MOD8: OPEN end position negated
MOD9: CLOSED end position negated
MOD10: Before-end position OPEN
MOD11: Before-end position CLOSE
RELAY 3
MOD12: Before-end position CLOSE to CLOSED end position
MOD13: Magnetic lock function
MOD14: Brake (normally energised mode)
MOD15: Brake (normally de-energised mode)
MOD16: Brake (normally energised mode) switched on in OPEN end position
MOD17: SKS activated or test error
MOD18: (Red traffic light 4) flashes during prewarning and is OFF during door run
MOD19: Before-end position OPEN to OPEN end position
RELAY 4
MOD20: Activation of infrared transmission system
MOD21: Test of draw-in protection before opening run (additional module
required)
MOD22: Activation of radio transmission systems 1 and 3
MOD23: ( Green traffic light) ON at OPEN end position, OFF during prewarning,
and OFF during door run
MOD24: Capacitor switching for 230 V/1~ sectional-door operators
MOD25: Yard light function, light stays on for 2 minutes after OPEN impulse -
command
MOD26: Activation of radio 2 transmission system
MOD27: Impulse signal when OPEN end position is reached
MOD28: Relay generally ON (1 second time lag after switching on)
MOD29: Relay generally OFF
SKS CHECK Activation and deactivation of testing function for the attached DW airwave bar.
DELAY UP OFF: Immediate opening after command given.
ON: Delayed opening. Prewarning time (PREWARNING parameter) count-
down begins after command given. Following this, the door is opened.
FINE-UP Fine adjustment of the OPEN end position in relation to the saved OPEN end position
(UPPERSWITCH).
FINE-DOWN Fine adjustment of the CLOSED end position in relation to the saved CLOSED end
position (LOWERSWITCH).
Please note:
In the case of fine adjustment, the relevant end position value is shown. This value
can be adjusted upwards or downwards in steps of discrete increments.
S-POINT1 Setting intermediate OPEN switching point (PART UP)
S-POINT2 Setting intermediate CLOSE switching point (PART DOWN)
Ô "6.3 Setting the intermediate positions of the electronic end position system using
the LCD monitor"
20 – CS 300 Gate Controls / Rev.D 5.6
Setting options Factory settings
MOD1 - MOD29 MOD6
MOD1 - MOD29 MOD7
MOD1 - MOD29 MOD1
MOD1 - MOD29 MOD14
ON – OFF OFF
ON – OFF OFF
0 – 8190 UPPERSWITCH
0 – 8190 UPPERSWITCH
0 – 8190 4050
0 – 8190 3950
