Programming - Pro-Line System CS300 Operating Instructions Manual

Pro-Line
SYSTEM
7.

Programming

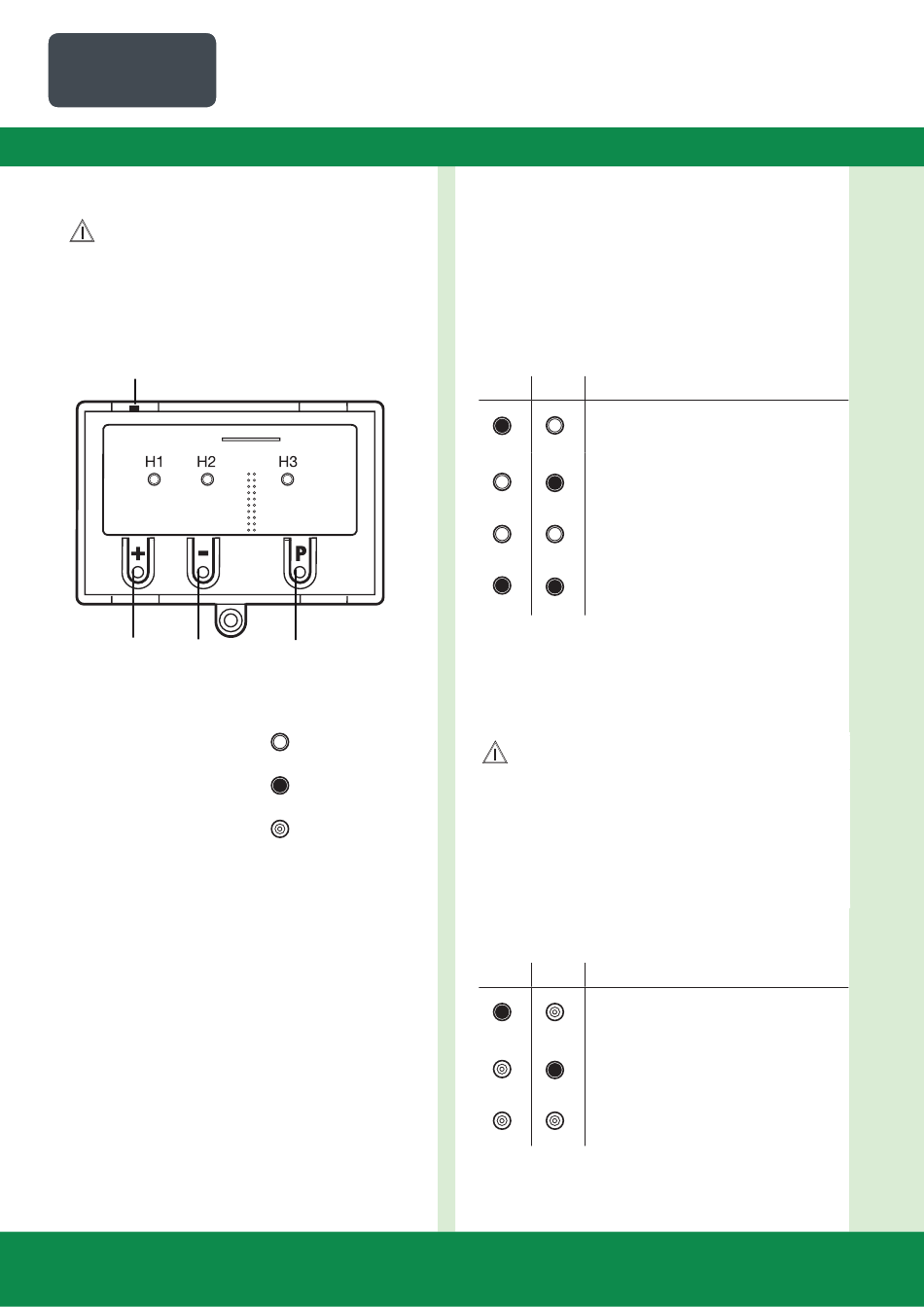

7.1 Overview of LED module
ATTENTION!
Damage can occur through improper installation!
The mains power supply must be switched off before
connecting the display unit. Only an MFZ LED module
(article number 590054) may be used.
D
A B
Key:
A: Button (+)
B: Button (–)
C: Button (P)
D: Jumper
H1: LED red
H2: LED red
H3: LED green
If jumper H is removed, the (+) button, the (–) button and the
(P) button have no function.
The LED indicator still functions.
7.2 LED module operating modes
The control has four modes of operation with the LED module:
1. AUTOMATIC
2. ADJUSTMENT
The operating mode that the control is operating in is shown
by the LEDs.
− In AUTOMATIC mode there is no LED flashing.
− In ADJUSTMENT mode at least one LED is flashing.
14 – CS 300 Gate Controls / Rev.D 5.6
C
LED off
LED lit up
LED flashing
By pressing button (P), it is possible to change between
operating modes.
Operating mode 1: AUTOMATIC
The door/gate system is operated in AUTOMATIC operating
mode.
LED indicators:
H1 H2 Status
The door/gate is open.
The programmed OPEN end position has been
reached.
The door/gate is closed.
The programmed CLOSED end position has been
reached.
The door/gate is in the intermediate position.
No end position reached.
The door has been moved beyond the CLOSED/
OPEN end position.
Operating mode 2: ADJUSTMENT
ADJUSTMENT mode is used for setting the OPEN/CLOSED
end positions.
ATTENTION!
Malfunctions can occur as a result of incorrect
operation of the control!
In ADJUSTMENT mode, the door will not stop automatically
when it reaches the end position if an electronic end
position system (AWG) is used. The door can be damaged if
it is moved beyond the end position.
LED indicators:
H1 H2 Status
The OPEN end position has been programmed in
this door position.
The CLOSED end position has been programmed in
this door position.
The OPEN and CLOSED end position has not been
programmed in this door position.
