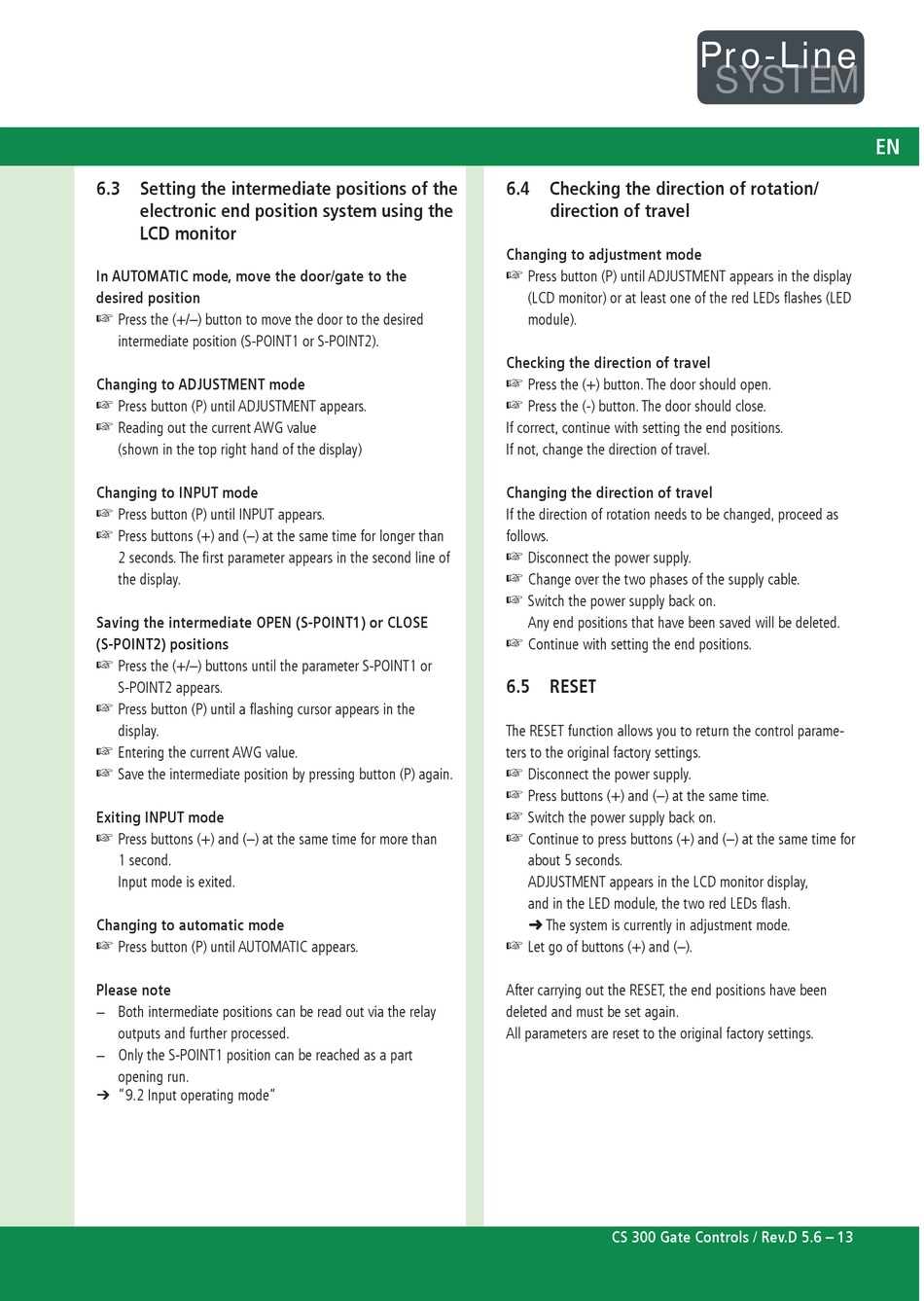

6.3 Setting the intermediate positions of the
electronic end position system using the
LCD monitor
In AUTOMATIC mode, move the door/gate to the
desired position

Press the (+/–) button to move the door to the desired
intermediate position (S-POINT1 or S-POINT2).
Changing to ADJUSTMENT mode

Press button (P) until ADJUSTMENT appears.

Reading out the current AWG value
(shown in the top right hand of the display)
Changing to INPUT mode

Press button (P) until INPUT appears.

Press buttons (+) and (–) at the same time for longer than
2 seconds. The first parameter appears in the second line of
the display.
Saving the intermediate OPEN (S-POINT1) or CLOSE
(S-POINT2) positions

Press the (+/–) buttons until the parameter S-POINT1 or
S-POINT2 appears.

Press button (P) until a flashing cursor appears in the
display.

Entering the current AWG value.

Save the intermediate position by pressing button (P) again.
Exiting INPUT mode

Press buttons (+) and (–) at the same time for more than
1 second.
Input mode is exited.
Changing to automatic mode

Press button (P) until AUTOMATIC appears.
Please note
− Both intermediate positions can be read out via the relay
outputs and further processed.
− Only the S-POINT1 position can be reached as a part
opening run.
Ô "9.2 Input operating mode"
6.4 Checking the direction of rotation/
direction of travel
Changing to adjustment mode

Press button (P) until ADJUSTMENT appears in the display
(LCD monitor) or at least one of the red LEDs flashes (LED
module).
Checking the direction of travel

Press the (+) button. The door should open.

Press the (-) button. The door should close.
If correct, continue with setting the end positions.
If not, change the direction of travel.
Changing the direction of travel
If the direction of rotation needs to be changed, proceed as
follows.

Disconnect the power supply.

Change over the two phases of the supply cable.

Switch the power supply back on.
Any end positions that have been saved will be deleted.

Continue with setting the end positions.
6.5 RESET
The RESET function allows you to return the control parame-
ters to the original factory settings.

Disconnect the power supply.

Press buttons (+) and (–) at the same time.

Switch the power supply back on.

Continue to press buttons (+) and (–) at the same time for
about 5 seconds.
ADJUSTMENT appears in the LCD monitor display,
and in the LED module, the two red LEDs flash.
➜ The system is currently in adjustment mode.

Let go of buttons (+) and (–).
After carrying out the RESET, the end positions have been
deleted and must be set again.
All parameters are reset to the original factory settings.
