4.2

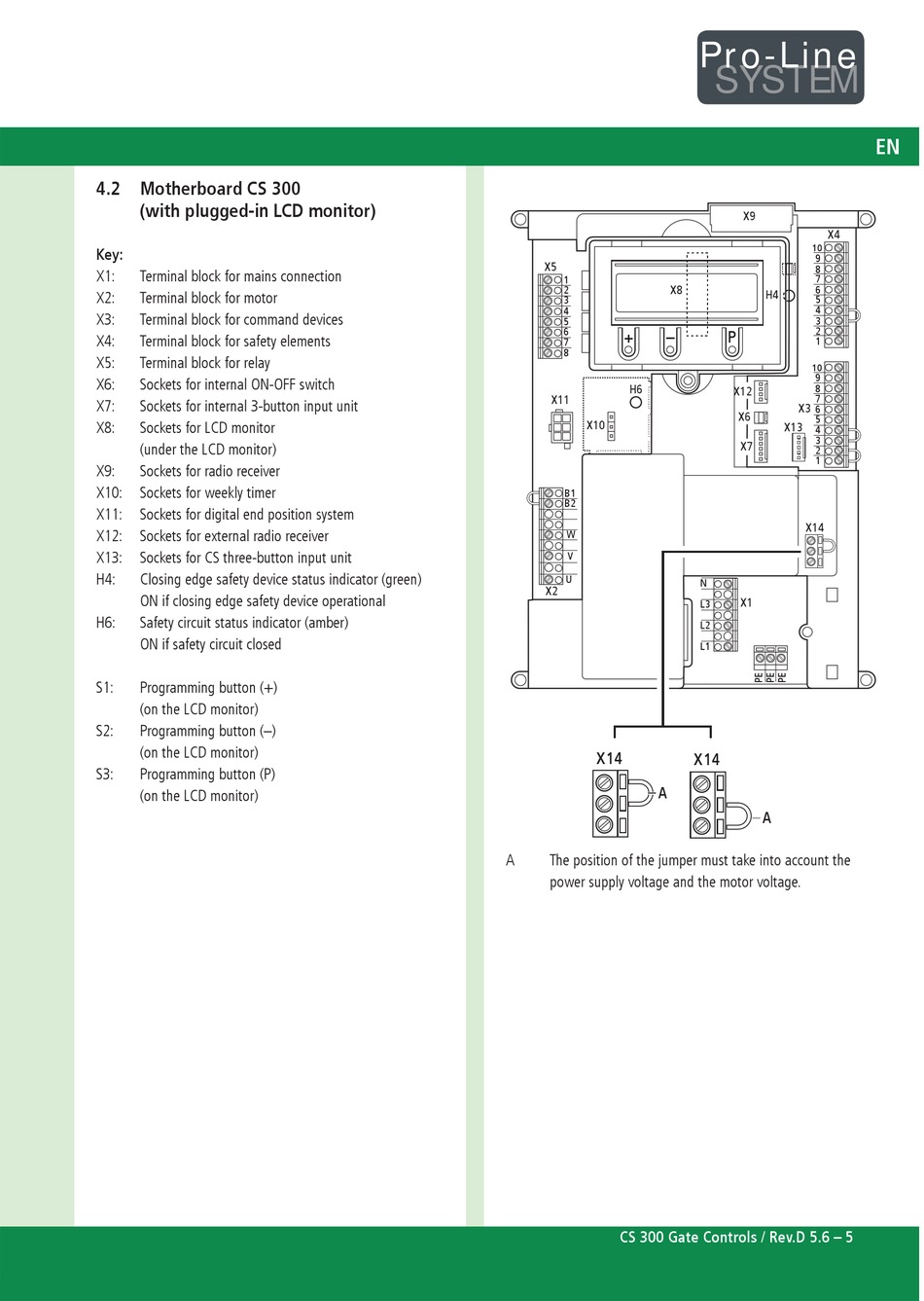

Motherboard CS 300
(with plugged-in LCD monitor)
Key:
X1:
Terminal block for mains connection
X2:
Terminal block for motor
X3:
Terminal block for command devices
X4:
Terminal block for safety elements
X5:
Terminal block for relay
X6:
Sockets for internal ON-OFF switch
X7:
Sockets for internal 3-button input unit
X8:
Sockets for LCD monitor
(under the LCD monitor)
X9:
Sockets for radio receiver
X10:
Sockets for weekly timer
X11:
Sockets for digital end position system
X12:
Sockets for external radio receiver
X13:
Sockets for CS three-button input unit
H4:
Closing edge safety device status indicator (green)
ON if closing edge safety device operational
H6:
Safety circuit status indicator (amber)
ON if safety circuit closed
S1:
Programming button (+)
(on the LCD monitor)
S2:
Programming button (–)
(on the LCD monitor)
S3:
Programming button (P)
(on the LCD monitor)
X5
1
X8
2
3
4
5
6
+
–
7
8
H6
X11
X10
B1
B2
W
V
U
X2
X14
A
400 V
A
The position of the jumper must take into account the
power supply voltage and the motor voltage.
CS 300 Gate Controls / Rev.D 5.6 – 5
Pro-Line
SYSTEM
X9
X4
10
9
8
7
6
H4
5
4
3
2
P
1
10
9
8
X12
7
X3
6
X6
5
X13
4
3
X7
2
1
X14
N
X1
L3
L2
L1
X14
A
230 V
