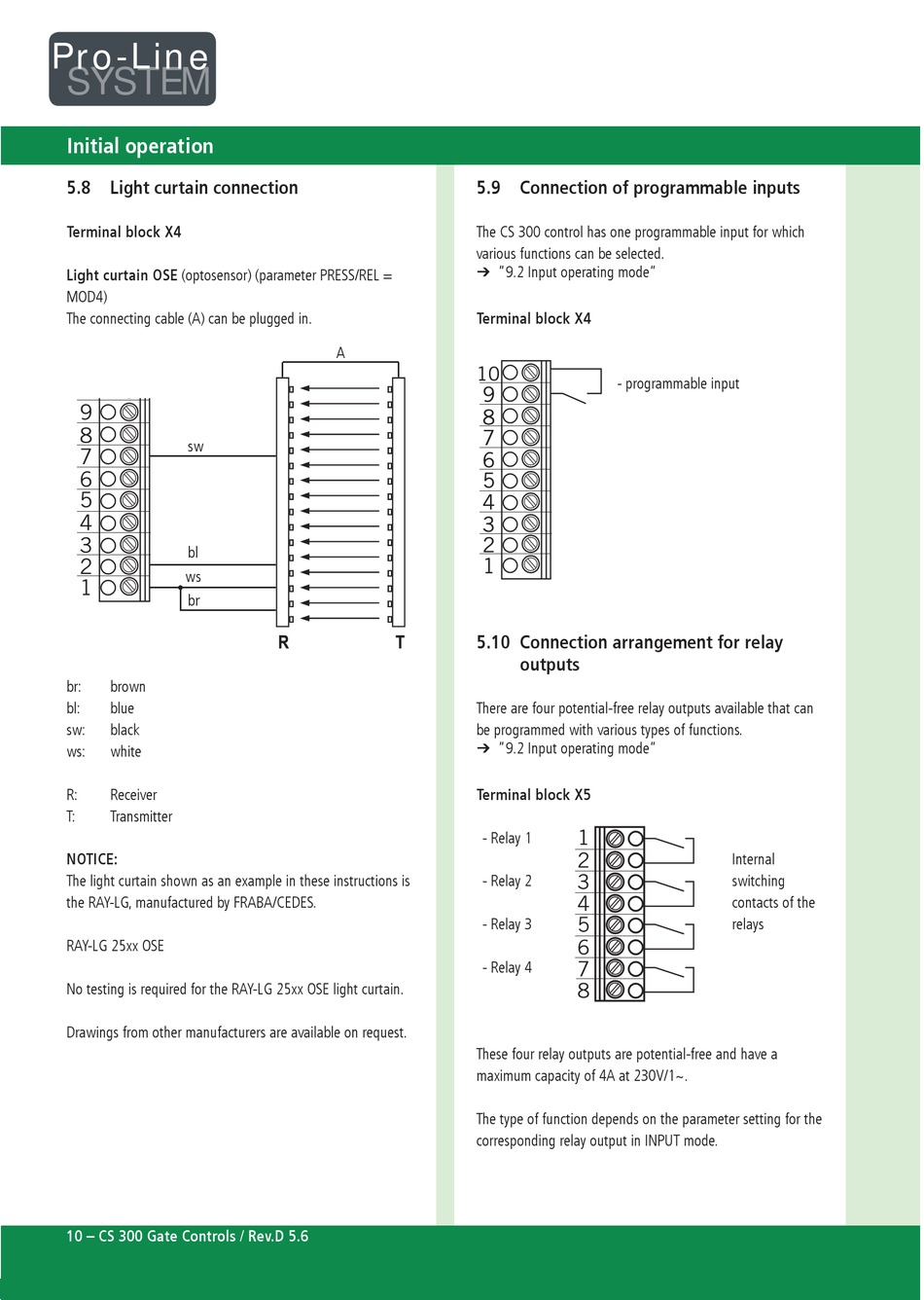

Initial operation
5.8 Light curtain connection
Terminal block X4
Light curtain OSE (optosensor) (parameter PRESS/REL =
MOD4)
The connecting cable (A) can be plugged in.
12
11
10
9
8
sw
7
6
5
4
3
bl
2
ws
1
br
br: brown
bl: blue
sw: black
ws: white
R: Receiver
T: Transmitter
NOTICE:
The light curtain shown as an example in these instructions is
the RAY-LG, manufactured by FRABA/CEDES.
RAY-LG 25xx OSE
No testing is required for the RAY-LG 25xx OSE light curtain.
Drawings from other manufacturers are available on request.
10 – CS 300 Gate Controls / Rev.D 5.6
5.9
The CS 300 control has one programmable input for which
various functions can be selected.
Ô "9.2 Input operating mode"
Terminal block X4
A
5.10 Connection arrangement for relay
There are four potential-free relay outputs available that can
be programmed with various types of functions.
Ô "9.2 Input operating mode"
Terminal block X5
- Relay 1
- Relay 2
- Relay 3
- Relay 4
These four relay outputs are potential-free and have a
maximum capacity of 4A at 230V/1~.
The type of function depends on the parameter setting for the
corresponding relay output in INPUT mode.
Connection of programmable inputs
- programmable input
outputs
1
2
3
4
5
6
7
8
Internal
switching
contacts of the
relays
