3.1.3 Front Panel Configuration
The 520 indicator can be configured using a series of menus accessed through the indicator front panel when the
indicator is in setup mode. Table 3-1 summarizes the functions of each of the main menus.
Menu
CONFIG Configuration
FORMAT Format
CALIBR Calibration
SERIAL Serial
PROGRM Program
PFORMT Print Format
SETPTS Setpoints
DIG IN Digital Input
ALGOUT Analog Output
VERSION Version
Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 3-2).
The ( ) and
UNITS PRINT
( ) move up and down (vertically) to different menu levels. The
GROSS/NET
key for selecting parameter values within the menus. A label over each of these keys identifies the direction
provided by the key when navigating through the setup menus.
Configure grads, zero tracking, zero range, motion band, overload, A/D sample rate, tare
function, power-up mode, and digital filtering parameters.
Set format of primary and secondary units, decimal format, and display rate.
Calibrate indicator. See Section 4.0 on page 36 for calibration procedures.
Configure EDP and printer serial ports.
Set date and time formats, passwords, keyboard locks, regulatory mode, and user ID
consecutive number values; enable accumulator, checkweigh, count mode, peak hold, gravity
adjustment and millivolt calibration; define setpoint prompts.
Set print format used for header, gross, net, count, setpoint, and EDP format tickets. See
Section 11.0 for more information.
Configure setpoints and batching mode.
Assign digital input functions.
Configure analog output module. Used only if analog output option is installed.
Display installed software version number.
Table 3-1. 520 Menu Summary
MODE
SETUP MODE 5-KEY FUNCTIONS

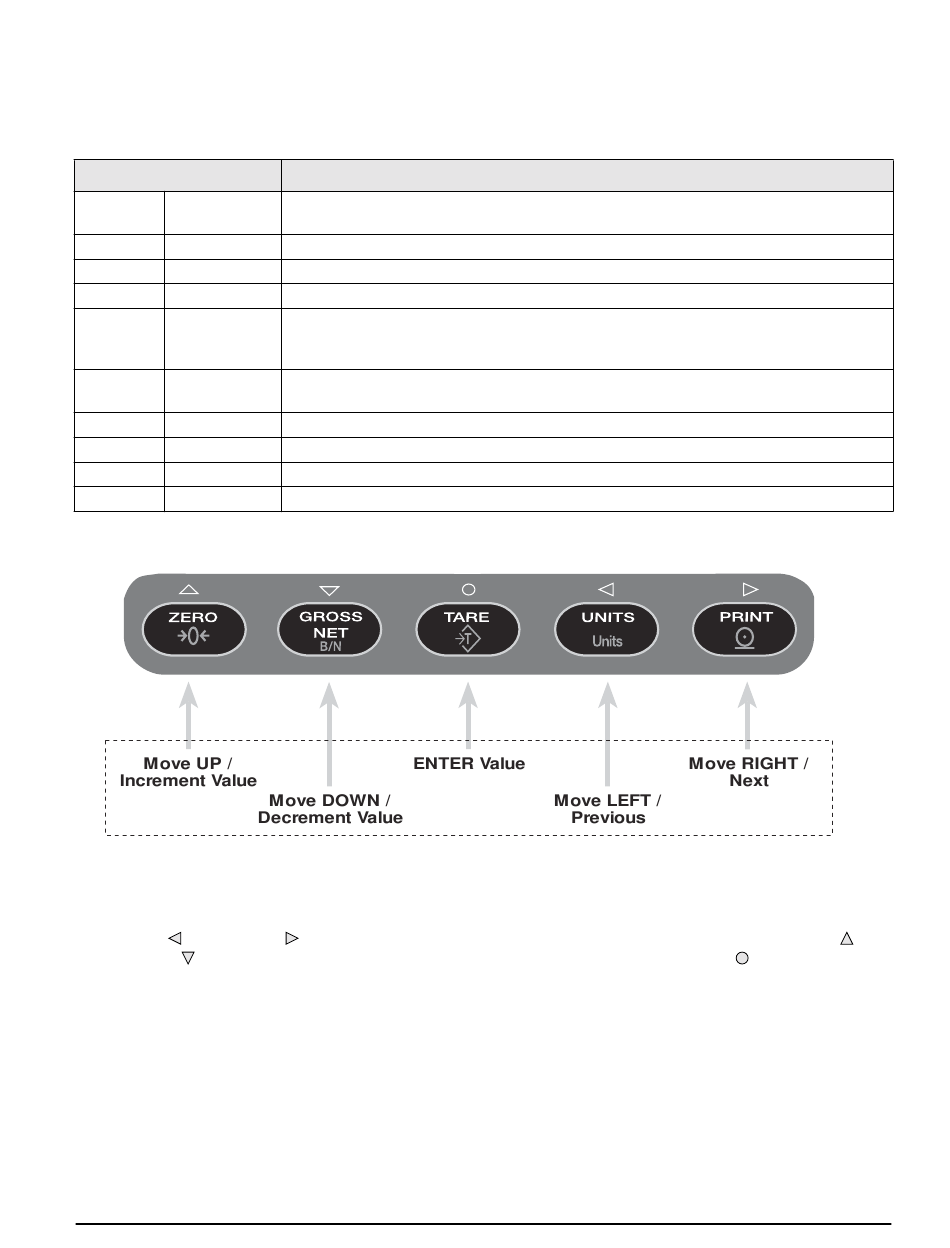

Figure 3-2. Five-Key Keypad Functions in Setup Mode
( ) keys scroll left and right (horizontally) on the same menu level;
Menu Function
ENTER SAMPLE
ZERO
TARE
key ( ) serves as an Enter
Configuration
( ) and
