Rice Lake 520 Installation Manual page 18

(2.75)
3.88
2.84
(6.22)
Figure 2-5. 520 Wire Seal
7.36
6.50

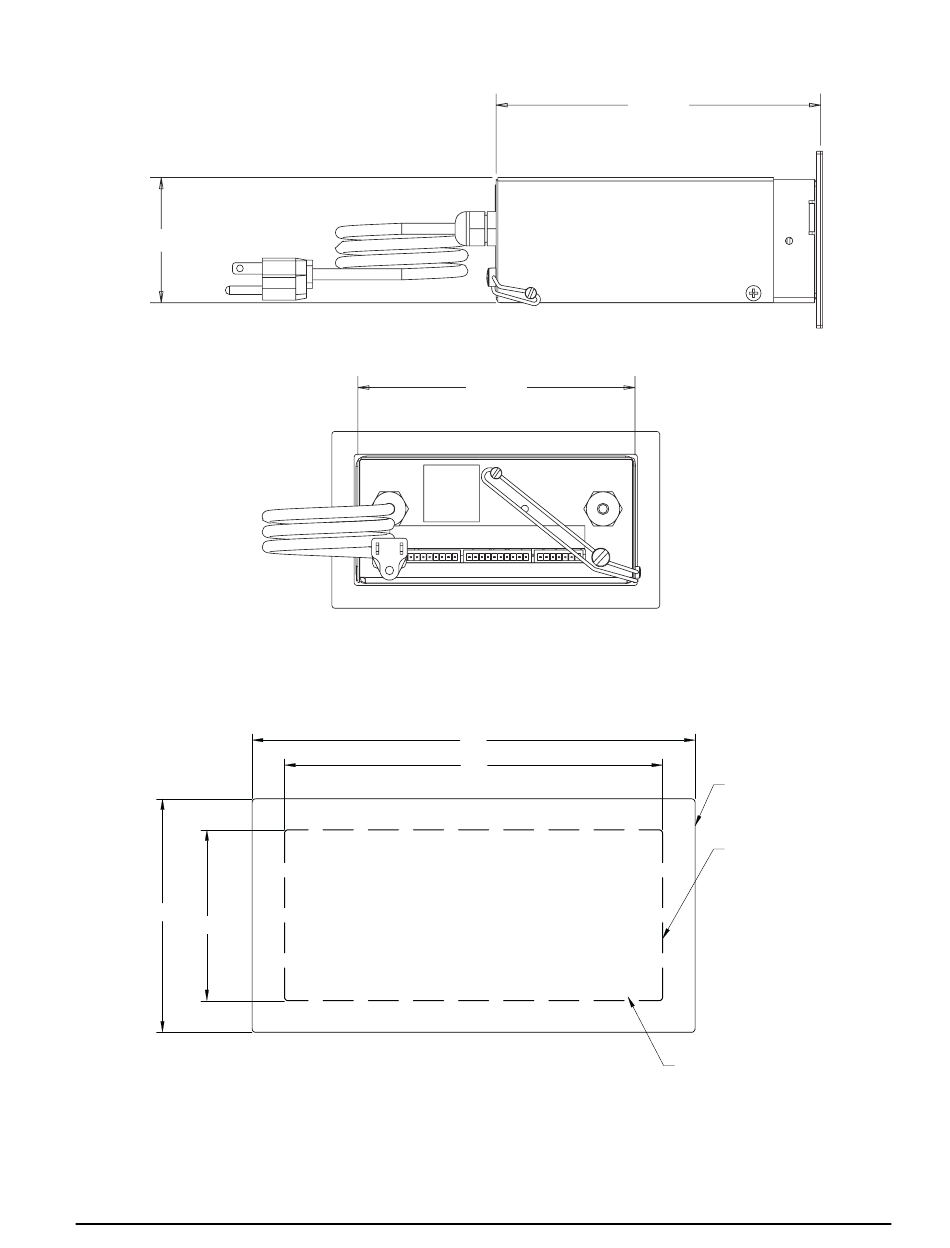

Figure 2-6. 520 Panel Mount Cut Out Template
(7.29)
Outside perimeter of
exterior faceplate
(solid line)
Cutout in panel
(dashed line)
Outline of interior
housing (dotted line)
Installation 13
