Repair Parts and Maintenance Guide
Repair Parts and Maintenance Guide

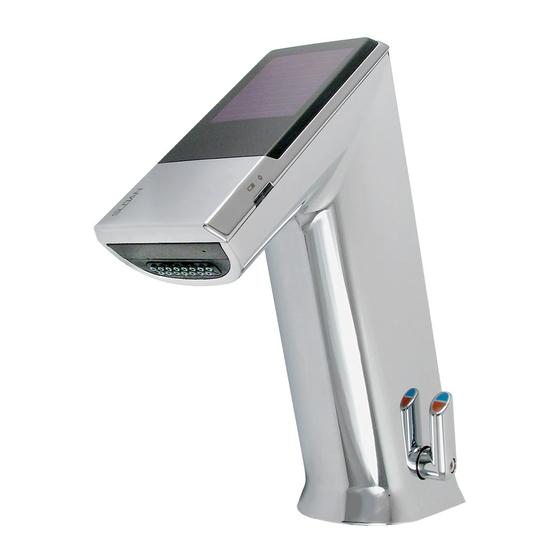

BASYS
®
Infrared Sensor Activated

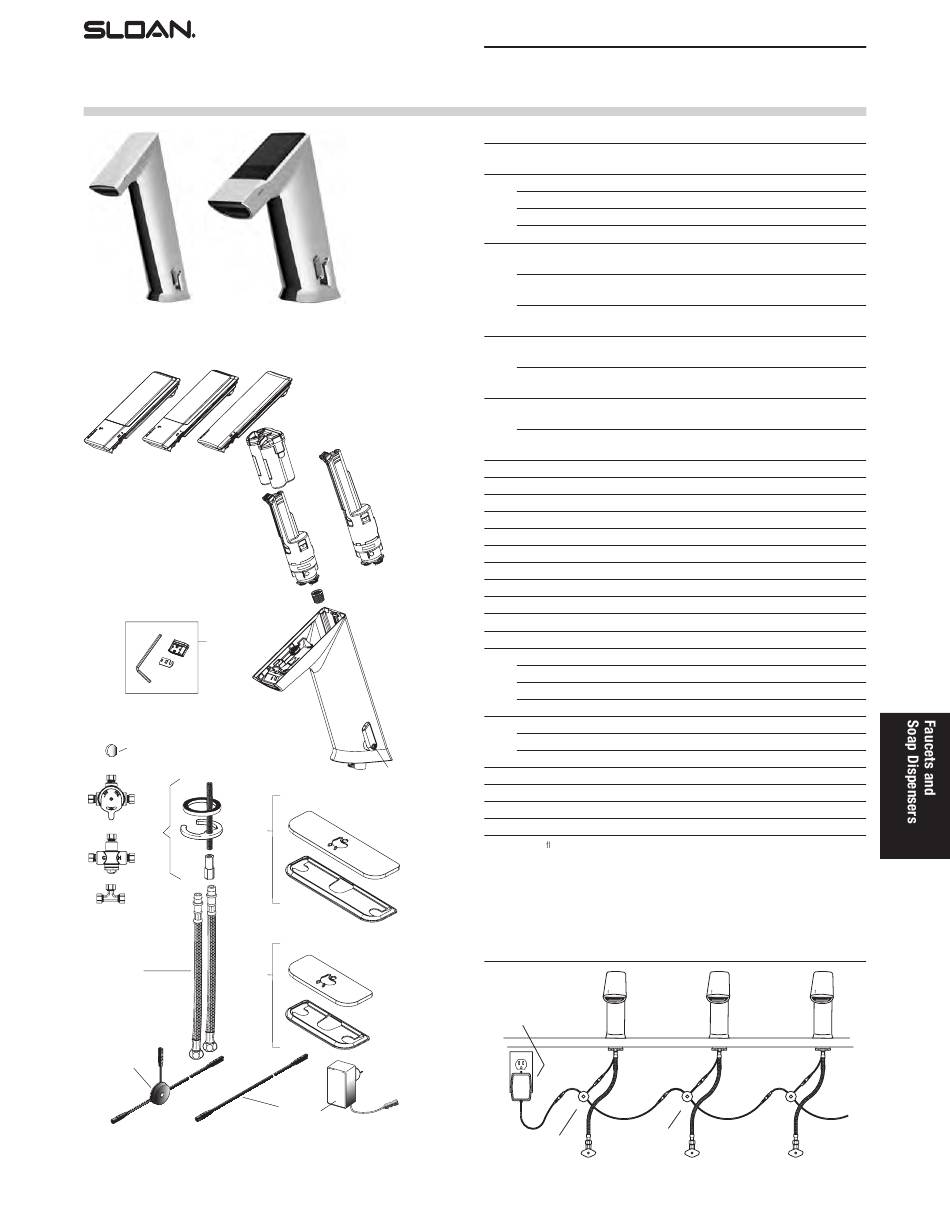

PARTS LIST—BASYS FAUCETS
Item
No.
Code No. Part No.
Description
1.
Mid Mount Faucet Assembly
Mid Mount Faucet Assembly with Mixer
High Mount Faucet Assembly
High Mount Faucet Assembly with Mixer
3324104
2.
EFX-1002-A
0.5 gpm/1.9 Lpm Multi-Lam Insert (includes
insert, o-ring, 2.5 mm allen key and removal tool)
3324103
EFX-1001-A
1.5 gpm/5.7 Lpm Aerated Stream Insert (includes
insert, o-ring, 2.5 mm allen key and removal tool)
3324102
EFX-1000-A
1.5 gpm/5.7 Lpm Laminar Stream Insert (includes
insert, o-ring, 2.5 mm allen key and removal tool)
3324122
3A.
EFX-15-A
0.5 gpm/1.9 Lpm Solenoid Valve Caddy Assembly
Mid Mount (Green)
3324123
EFX-16-A
1.5 gpm/5.7 Lpm Solenoid Valve Caddy Assembly
– Mid Mount (Blue)
3324124
3B.
EFX-17-A
0.5 gpm/1.9 Lpm Solenoid Valve Caddy Assembly
– High Mount (Green)
3324125
EFX-18-A
1.5 gpm/5.7 Lpm Solenoid Valve Caddy Assembly
– High Mount (Blue)
4.
0324019
EFX-19
Strainer (Filter)
5.
3324128
EFX-7-A
Battery Pack Assembly
6A.
3324118
EFX-1-A
Crown Assembly
6B.
3324119
EFX-3-A
Solar Crown Assembly
6C.
3324120
EFX-4-A
Solar Crown with LCD Assembly
7.
Mixer Handle Assembly
8.
0324035
EFX-33
Handle Cap
0335000
9.
EAF-1
Faucet Mounting Kit (Pedestal)
3325023
10.
EAF-1008
13" (330 mm) Flexible Supply Hoses (2)
3324101
11.
EFX-26-A
Trim Plate for 8" Centerset Sink
3324100
12.
EFX-20-A
Trim Plate for 4" Centerset Sink
0335009
13.
EAF-11
Plug-in Voltage Adapter (US)
0335041
EAF-41
Plug-in Voltage Adapter (EU)
0335039
EAF-39
Plug-in Voltage Adapter (UK)
0335037
EAF-37
Box Type Voltage Adapter
14.
0335024
EAF-24-A
11-13/16" (300 mm) Extension Cable
0335025
EAF-25-A
47-1/4" (1200 mm) Extension Cable
0335015
EAF-17-A
126" (3200 mm) Extension Cable
15.
0335023
EAF-23-A
Splitter
16.
3326009
MIX-60-A
Mechanical, Below Deck Mixing Valve
17.
0326045
MIX-135-A
Thermostatic, Below Deck Mixing Valve
3365461
18.
ETF-617-A
Bak-Chek Tee
NOTE: If changing ow rate caddy and spray insert must be changed in conjunction.
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
ADAPTER
DAISY CHAIN
DAISY CHAIN
ELECTRICAL
ELECTRICAL CABLE
CABLE
The information contained in this document is subject to change without notice.
131
TO ADDITIONAL
FAUCETS
(6 MAX.)
