Sloan REGAL XL series Installation Instructions Manual

I I NSTALLATION INSTRUCTIONS FOR EXPOSED REGAL
WATER CLOSET AND URINAL FLUSHOMETERS
Sloan Valve Company warrants its Regal XL Flushometers to be made of first class materials, free from defects of material or workmanship under normal use and
to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years (1
year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be
thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for
labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from
Sloan Valve Company for purpose of resale.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR
ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

PRIOR TO INSTALLATION

Before you install the Regal XL Flushometer, be sure the items listed
below are installed. Also, refer to the rough-in diagrams on the next page.
• Closet or urinal fixture
• Drain line
• Water supply line
Important:
• INSTALL ALL PLUMBING IN ACCORDANCE WITH APPLICABLE CODES
AND REGULATIONS.
• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN ADEQUATE
VOLUME OF WATER FOR EACH FIXTURE.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.

TOOLS REQUIRED FOR INSTALLATION

• Straight blade screwdriver
• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed spud wrench

LIMITED WARRANTY

The Sloan Regal XL Flushometer is designed to operate with 10 to 100
psi (69 to 689 kPa) of water pressure. THE MINIMUM PRESSURE
REQUIRED TO THE VALVE IS DETERMINED BY THE TYPE OF FIXTURE
SELECTED. Consult fixture manufacturer for minimum pressure
requirements. Most Low Consumption water closets (1.6 gpf/6.0 Lpf)
require a minimum flowing pressure of 25 psi (172 kPa).
Code No. 0816312
Rev. 1 (05/10)

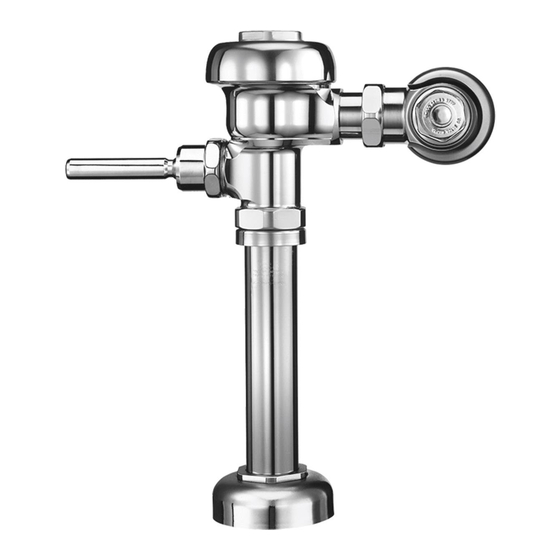

XL
®
Closet Flushometer
1½" (38 mm) Top Spud
MODELS 110/111,
113, 115 & 116
Closet Flushometer
1½" (38 mm) Back Spud
MODEL 120 & 122
Service Sink Flushometer
1½" (38 mm) Top Spud
MODEL 117
Urinal Flushometer
1¼" (32 mm) Top Spud
MODEL 180
Urinal Flushometer
¾" (19 mm) Top Spud
MODEL 186
Squat Toilet Flushometer
1½" (38 mm) Back Spud
MODEL 137
