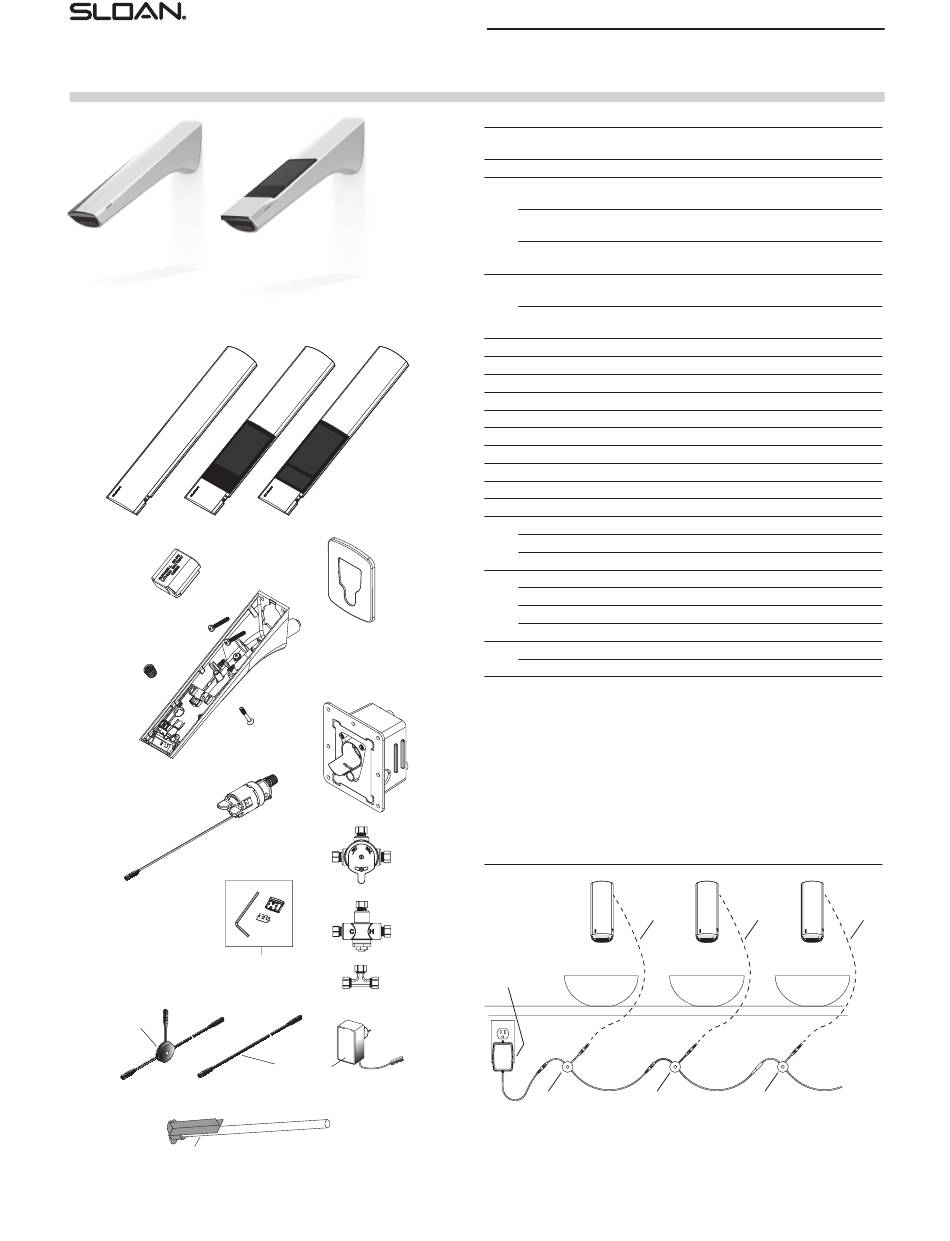

Repair Parts and Maintenance Guide
BASYS
Faucet
®
Infrared Sensor Activated
PARTS LIST—BASYS FAUCETS
Item
No.
Code No.
Part No.
Description
1.
—
—
Wall Mount Faucet Assembly
3324104
2.
EFX-1002-A 0.5 gpm/1.9 Lpm Multi-Lam Spray Head (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324103
EFX-1001-A 1.5 gpm/5.7 Lpm Aerated Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324102
EFX-1000-A 1.5 gpm/5.7 Lpm Laminar Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3.
3324162
EFX-1011-A 0.5 gpm/1.9 Lpm Solenoid Valve Caddy Assembly
– Wall (Green)‡
3324163
EFX-1012-A 1.5 gpm/5.7 Lpm Solenoid Valve Caddy Assembly
– Wall (Blue) ‡
0324019
4.
EFX-19
Strainer (Filter)
5.
—
EFX-1013-A Mounting Assembly
6A.
3324160
EFX-1009-A Bowed Crown Assembly
6B.
3324138
EFX-1010-A Solar Crown Assembly
3324139
6C.
EFX-1018-A Solar Crown with LCD Assembly
—
7.
—
CR-P2 Lithium Battery
8.
3326009
MIX-60-A
Mechanical, Below Deck Mixing Valve
9.
0326045
MIX-135-A Thermostatic, Below Deck Mixing Valve
3365461
10.
ETF-617-A Bak-Chek Tee Assembly
0335023
11.
EAF-23-A
Splitter
12.
0335024
EAF-24-A
11-13/16" (300 mm) Extension Cable
0335025
EAF-25-A
47-1/4" (1200 mm) Extension Cable
0335015
EAF-17-A
126" (3200 mm) Extension Cable
0335009
13.
EAF-11
Plug-in Voltage Adapter (US)
0335041
EAF-41
Plug-in Voltage Adapter (EU)
0335039
EAF-39
Plug-in Voltage Adapter (UK)
0335037
EAF-37
Box Type Voltage Adapter
14.
3324165
EFX-1014-A Wall Flange
—
15.
—
Purge Tool
NOTE: If changing flow rate caddy and spray insert must be changed in conjunction.
† Single Supply faucets include Bak-Chek
®
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
‡ Old style / T-shaped contact.
New style / Plug contact
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
CABLE
BEHIND
THE WALL
6 VDC
PLUG-IN
ADAPTER
161
CABLE
CABLE
BEHIND
BEHIND
THE WALL
THE WALL
