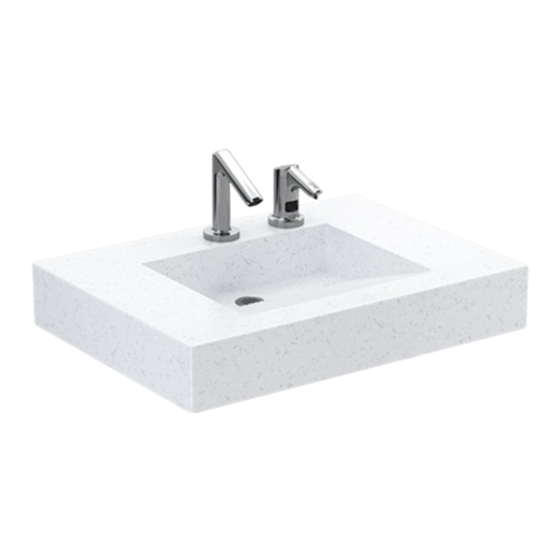

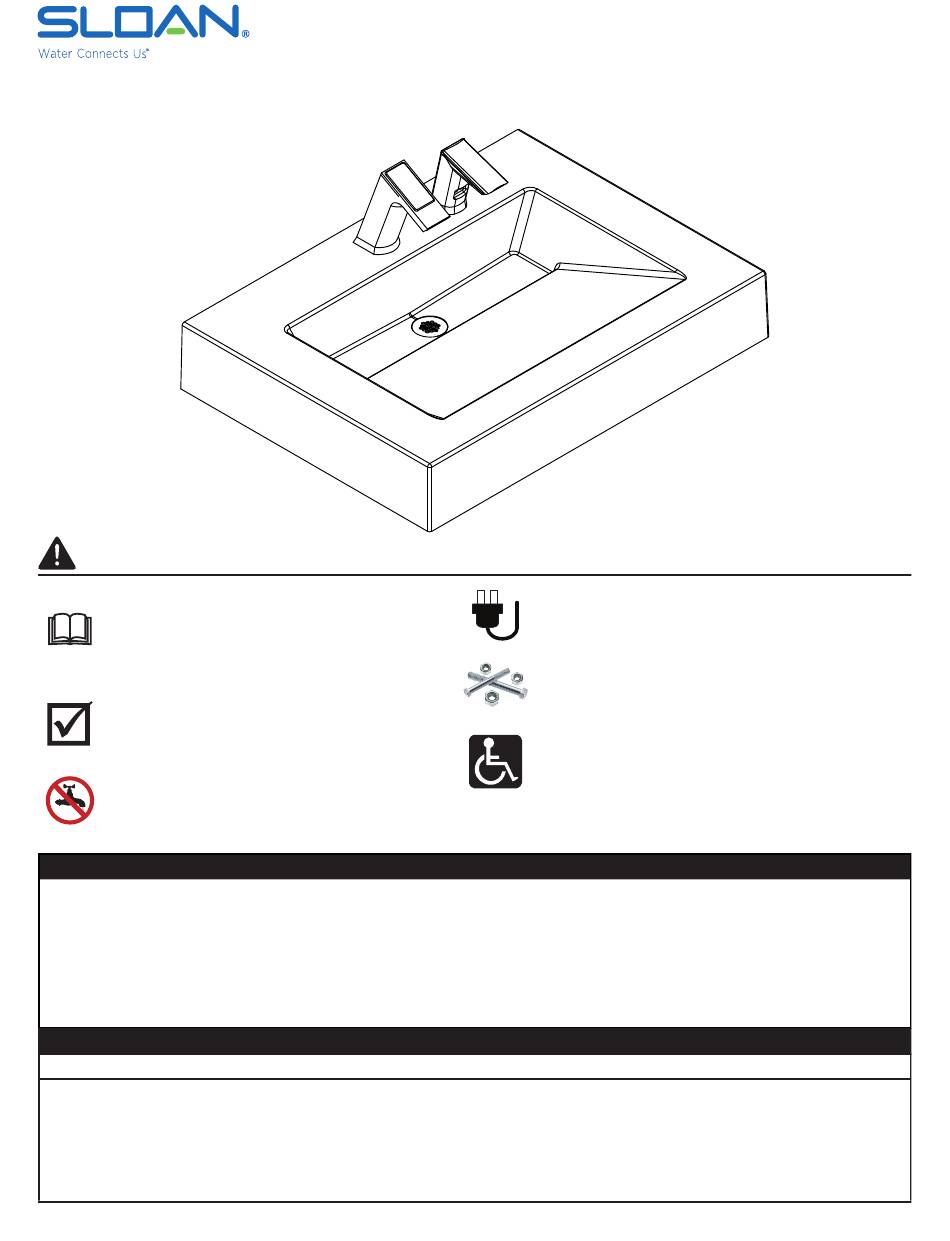

QSGR-81000, Sink System w/
Brackets
One Station Quartz
Important
Read this entire installation manual to ensure
proper installation. When fi nished with the
installation, fi le this manual with the owner or
maintenance department. Compliance and
conformity to local codes and ordinances is
the responsibility of the installers.
Separate parts from packaging and make
sure all parts are accounted for before
discarding any packaging material. If any
parts are missing, do not begin installation until
all parts are obtained.
Make sure that all water supply lines have
been fl ushed and completely turned off
before starting the installation. Debris in supply
lines can cause valves to malfunction.
Tools and Supplies Required for Installation
•
Electric drill for drilling anchor holes.
•
Standard sockets, basin wrench, and open end wrench set for
installing anchoring fasteners and faucets.
•
Pipe wrench for installing drain lines.
•
Phillips and straight blade screwdrivers.
•
Tubing cutter
•
Level
•
Carpenter's square
Prior to Installation
ADEQUATE STRUCTURAL SUPPORT IN OR BEHIND THE WALL IS REQUIRED. REFER TO THE APPROPRIATE ROUGH-IN DIAGRAM FOR DRY
•
WEIGHT OF SINK.
ALL ELECTRICAL WIRING IS TO BE INSTALLED IN ACCORDANCE WITH NATIONAL/LOCAL CODES AND REGULATIONS. ELECTRICAL OUT-
•
LETS SHOULD BE RECESSED AND INSTALLED PRIOR TO INSTALLATION.
ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES AND REGULATIONS.
•
BEFORE CONNECTING FLEX HOSES TO SUPPLY STOPS, FLUSH ALL WATER LINES UNTIL WATER IS CLEAR.
•
•
HOT AND COLD WATER SUPPLY LINES/TEMPERED SUPPLY LINE AND DRAIN LINES. RECOMMENDED TO HAVE CONTROL STOPS ON WATER
SUPPLY LINES IN PLACE PRIOR TO INSTALLATION.
10500 Seymour Ave Franklin Park, IL 60131 | Phone: +1.800.982.5839 | Fax: +1.800.447.8329 | www.Sloan.com
Turn off electrical power to the electrical outlets,
then unplug units prior to installation. Electrical
power MUST remain off until installation is
complete.
Installers hardware must be appropriate for
wall construction. Wall anchors and mounting
fasteners MUST have a minimum pull-out rating of
1,000 lbs.
For standard height mounting, DO NOT exceed
the recommended 34 inch distance from the top
of the lav deck to the fi nished fl oor. To meet ADA
requirements the lav deck cannot not exceed
the 34 inch maximum height dimension.
•
Caulk gun
•
1/2" NPT hot/cold or tempered supply piping
•
1 1/2" NPT drain piping including p-trap
•
Adhesive: Loctite® PL Premium® FAST GRAB Polyurethane
Construction Adhesive
•
110 volt GFCI protected electrical outlet for 100-120 VAC plug-
in transformer
•
Screen fi lter(s) included with faucet(s)
•
Backing supplied by others to meet local codes
CAUTION
Copyright © 2023 Sloan. All rights reserved.
Installation Instructions
Code No. 68160048
Rev. 1 (08/2023)
Page: 1
