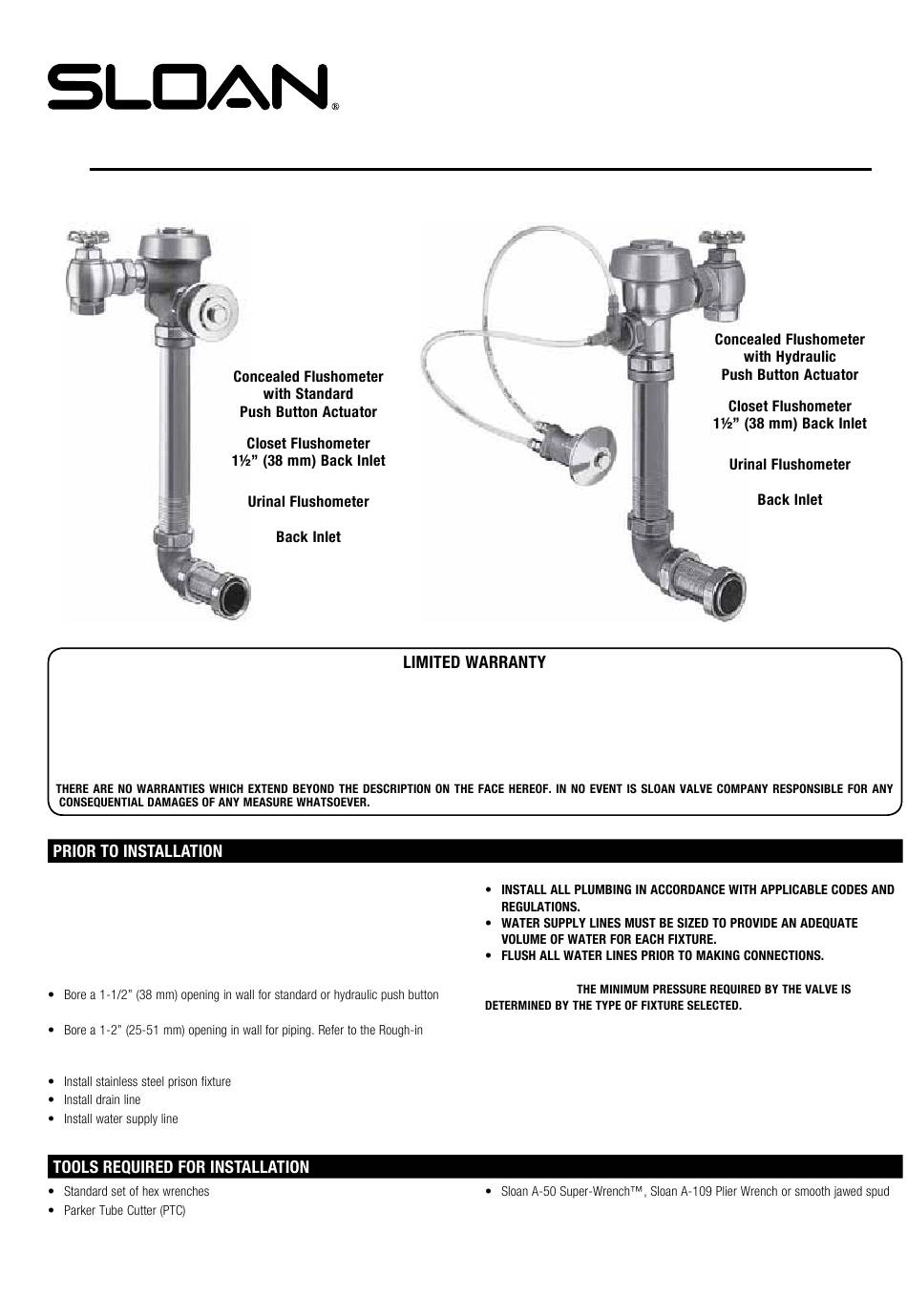

Stainless steel water closets, urinals and combination fixtures. concealed flushometer with standard push button actuator. closet flushometer 1 1/2 inch (38 mm) back inlet. urinal flushometer 1/2 inch (38 mm) & 3/4 inch (19 mm) back inlet.

Advertisement

Quick Links

INSTALLATION INSTRUCTIONS FOR STAINLESS STEEL
WATER CLOSETS, URINALS AND COMBINATION FIXTURES
1½" (38 mm) & 3/4" (19 mm)
Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and
workmanship for a period of three (3) years (one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase. During
this period, Sloan Valve Company will, at its option, repair, replace, or refund the purchase price of any product which fails to conform with this warranty under normal use
and service. This shall be the sole and exclusive remedy under this warranty. Products must be returned to Sloan Valve Company, at customer's cost. No claims will be
allowed for labor, transportation or other costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from Sloan
Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
Check that the "L" dimension shown on the flushometer package is correct for your
application. Determine the "L" dimension for your application by using the following
formula:
"L" dimension = Wall Thickness (to the nearest whole inch) + 2-3/4" (Models
609, 611 and 613), 4-3/4" (Models 601 and 603) OR 6-3/4" (Model 681).
Prior to installing the Sloan Prison Flushometer, perform the following functions using
the rough-in diagrams on Pages 2 and 3.
actuator
drawings on Pages 2 and 3. (This is
conjunction with fixture.)

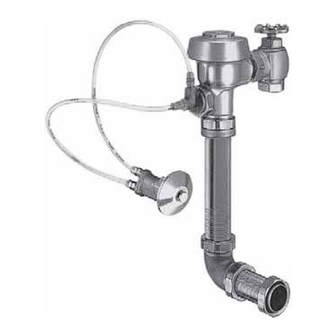

MODELS 601, 603, 611 & 681
MODELS 609 & 613
NOT
required if wall sleeve is used in
IMPORTANT:
Sloan's flushometers are designed to operate with 10 to 100 psi (69 to 689 kPa)
of water pressure.
Consult fixture manufacturer for minimum pressure requirements. Most Low
Consumption water closets (1.6 gpf/6.0 Lpf) require a minimum flowing pressure of
25 psi (172 kPa).
wrench
Code No. 0816331
Rev. 4 (05/13)
MODEL 9603
1½" (38 mm) & 3/4" (19 mm)
MODELS 9609 & 9613
Made in the U.S.A.
