How to Install

1

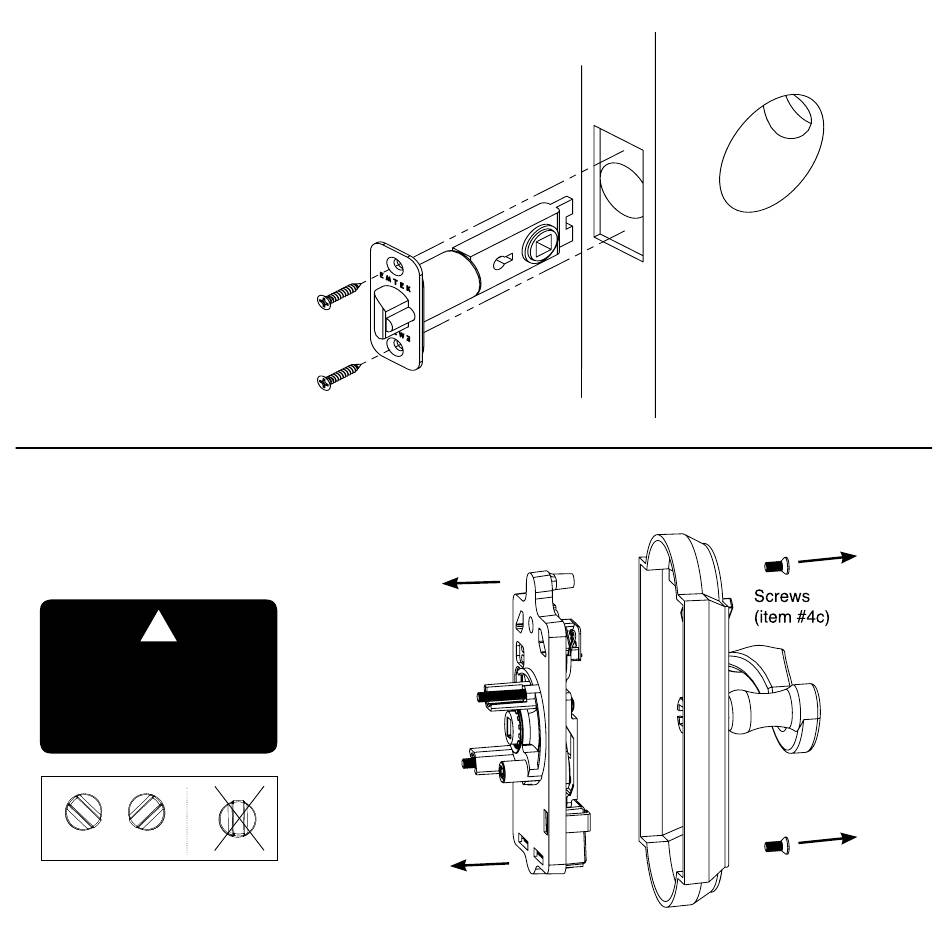

Install Latch

Fasten Latch using two
#8 x 3/4" Wood Screws
(item #6).
Remove Screws from Inside Trim Plate
Use a Phillips head screwdriver to remove
screws (item #4c) shown below and detach
Inside Trim Plate from the Inside Chassis.
!
Remove inside chassis from
trim plate before installing
the outside trim. Thumbturn
must be in neutral position.
LH RH
See Page 3 for Handing
Information.
