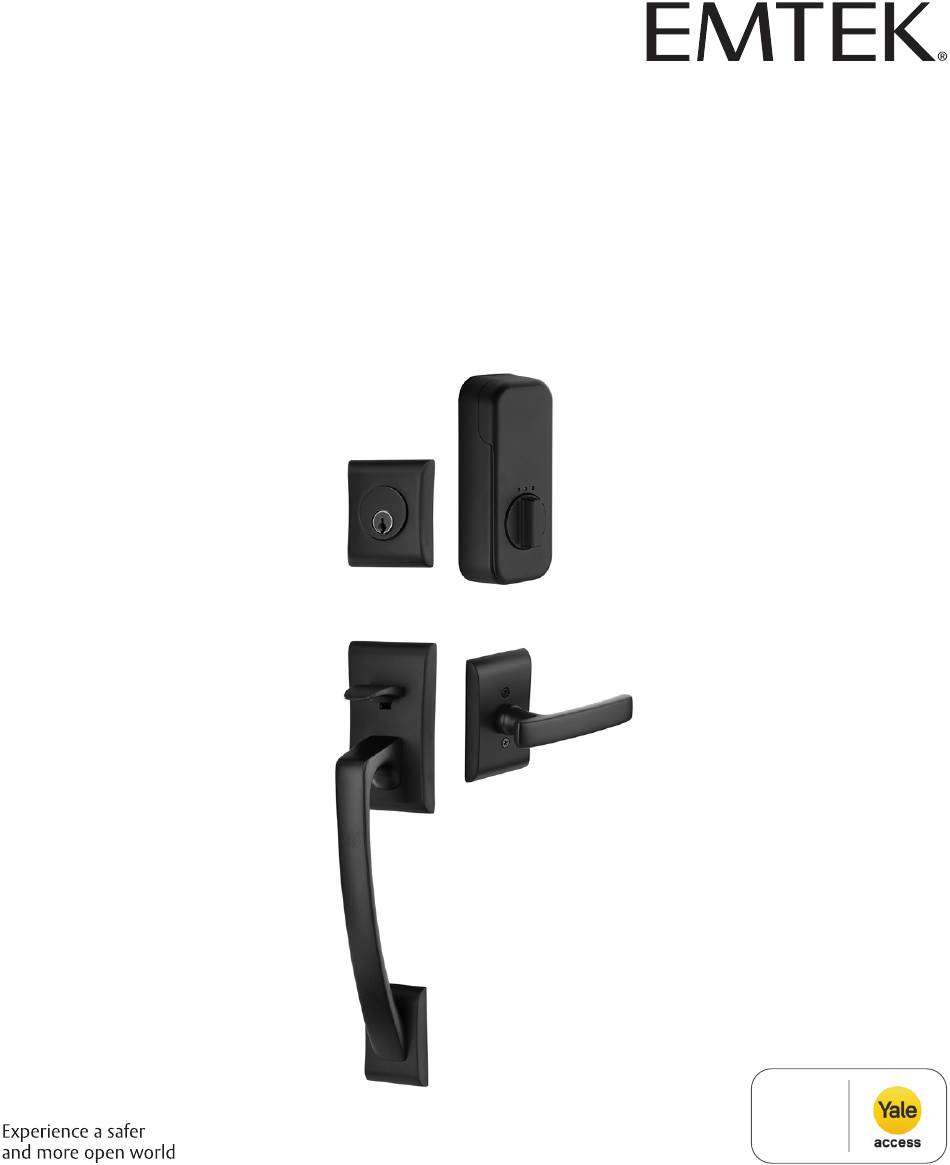

- Page 1 EMPowered™ Motorized SMART Lock Upgrade Works with Yale Access Sectional Entry Set WORKS WITH...
-
Page 2: What's In The Box
What’s in the box ITEM NO. DESCRIPTION QTY. ITEM NO. DESCRIPTION QTY. EMPower Unit Deadbolt Extension Collar Deadbolt Cylinder Smart Module Passage Latch Battery Cover AA Batteries Latch Face Plate Decorative Cap M4-0.7 x 8mm Machine Screws #8-32 Flat head Machine Screw Interior Escutcheon Threaded Washer #10-32 x 2-1/8”... - Page 3 23/8” Door Prep 2-3/8" 1" Dia. Edge Bores 2-3/4" 23/4” 21/4” 2 1 4 " 21/8” 51/2” Dia. 2-1/8" Dia. 5-1/2” Bores Bores 21/4” 2 1 4 " 1" Template Door Jamb Prep 11/8” 1-1/8" 2 3 4 " 23/4” 2 1 4 "...
- Page 4 Install Latches Note: Use only the supplied latch for proper functionality.
- Page 5 Install Grip and Interior Lever/Knob...
-
Page 6: Remove Battery Cover
Remove Battery Cover Loosen screw on bottom to remove cover. - Page 7 Install Lock Cylinder & Interior Mounting Plate Extension Collar required for thin doors. Must use screw guide...
- Page 8 Check Interior Mounting Plate Alignment Center tail piece in mounting plate hole before tightening.
- Page 9 Install Interior Escutcheon Bolt must be in retracted (unlocked) position.
-
Page 10: Testing Operation
Testing Operation... -
Page 11: Install Batteries
Install Batteries Bolt must be in retracted (unlocked) position before installing batteries. -
Page 12: Handing The Lock
Handing the Lock To hand the lock, hold the button until you hear one beep. - Page 13 Register The Module To register the module, hold the button for two seconds.
- Page 14 Installing DoorSense Surface Mount Option DoorSense Mounting DoorSense Mounting Cover Screws Housing Tape 1-1/2” 1. Determine mounting location 1-1/2” 3-1/2” 3-1/2”...
- Page 15 Installing DoorSense Surface Mount Option 2. Attach mounting tape then screw into frame 3. Complete the DoorSense™ setup in the Yale Access app Lock Settings after completing step 12.
- Page 16 Installing DoorSense Flush Mount Option DoorSense DoorSense Housing 1. Remove magnet from housing and place DoorSense onto the magnet...
-
Page 17: Flush Mount Option
Installing DoorSense Flush Mount Option 2. Drill hole and Insert DoorSense 5/8” Diameter 1/2” Deep 3-1/2” 3. Complete the DoorSense™ setup in the Yale Access app Lock Settings after completing step 12. - Page 18 Download or go the Yale Access App to Complete Installation Set Up an Emtek Lock in the Yale Access App QR Codes Coming Soon SET UP A DEVICE CAN’T SCAN CAN’T FIND THE EMTEK RADIO MODULE MD-01 THE CODE SERIAL NUMBER...
-
Page 19: Install Cover
Install Cover Secure cover by tightening screw on bottom. -
Page 20: Hardware Troubleshooting
Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Symptom Suggested Action Door is binding • Check that door and frame are properly aligned and door is free swinging. • Check hinges: They should not be loose or have excessive wear on knuckles. -
Page 21: Programming Troubleshooting
Daylight Saving Time (DST). NOTE TO INSTALLER AND CONSUMER While EMTEK has included several features to prevent lockout (low battery warnings), it is still possible for a lockout situation to occur. Because this product has a mechanical override... - Page 22 Resetting Lock to Factory Default When lock is reset to factory defaults, all programming features are reset to original default settings (see below). 1. Remove battery cover and batteries. 2. Remove the interior escutcheon to access the reset button. 3. The reset button (see image) is located beside the PCB cable connector.
- Page 23 Compliance FCC INTERFERENCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 IN8-EMPCYLSECT REV 21A 04-23-2021 Copyright © 2021, EMTEK Products, Inc. an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of EMTEK Products, Inc. is prohibited. WARNING: This product can expose you to chemicals including lead, which is known to the state of California to...
Need help?
Do you have a question about the Adams Handleset EMPowered EMP4414FRKUS10B-2 and is the answer not in the manual?
Questions and answers
How do I remove this? I am changing doors..
To remove the Emtek Adams Handleset EMP4414FRKUS10B-2, follow these general steps based on the installation reverse process:
1. Remove Battery Cover: Loosen the screw on the bottom of the interior escutcheon to remove the battery cover.
2. Remove Interior Escutcheon: Ensure the bolt is in the retracted (unlocked) position, then unscrew and remove the interior escutcheon.
3. Remove Interior Mounting Plate: Unscrew the mounting plate and carefully disconnect any wiring if applicable.
4. Remove Lock Cylinder: Detach the lock cylinder by removing screws and the extension collar if used.
5. Remove Grip and Interior Lever/Knob: Unscrew and detach the handle components from both sides of the door.
6. Remove Deadbolt Latch and Strike Plates: Unscrew the deadbolt latch from the door edge and remove the strike plates from the door jamb.
Reverse the installation steps using appropriate tools, and handle components carefully to avoid damage.
This answer is automatically generated
