Emtek Modern Style Installation & Programming Manual page 5

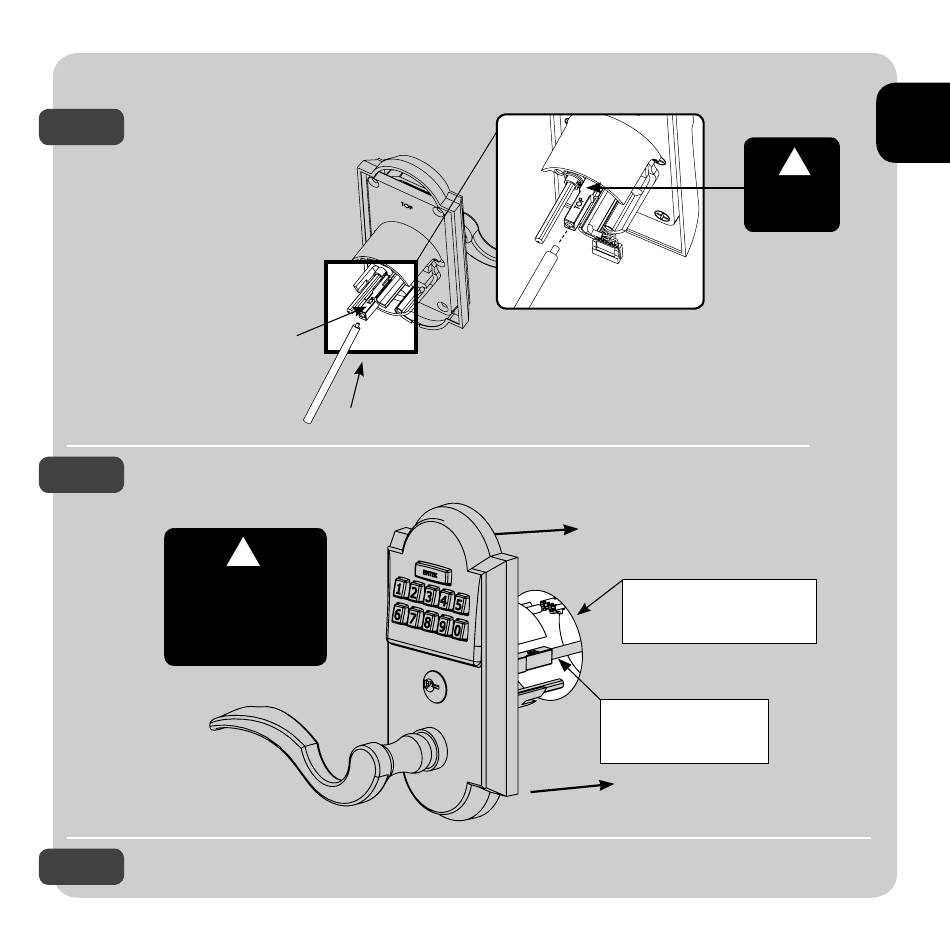

STEP 1
While holding Outside Trim
Plate Assembly, Press the Plastic
Extender (A) into end of Spindle
Shaft (B). The Shaft is properly
aligned when the marking
'TOP' can be seen from
an overhead view.
STEP 2
Position the Outside Trim Plate Assembly through the bore hole.
Once positioned,
outside trim plate
assembly requires
support.
STEP 3
With the Outside Trim Plate Assembly flush to the door, REMOVE the Plastic Extender.
Install Outside Trim Plate Assembly
B
A
!
!
This side
on top.
Feed wire harness
through the bore hole.
Fit Plastic Extender
through latch.
