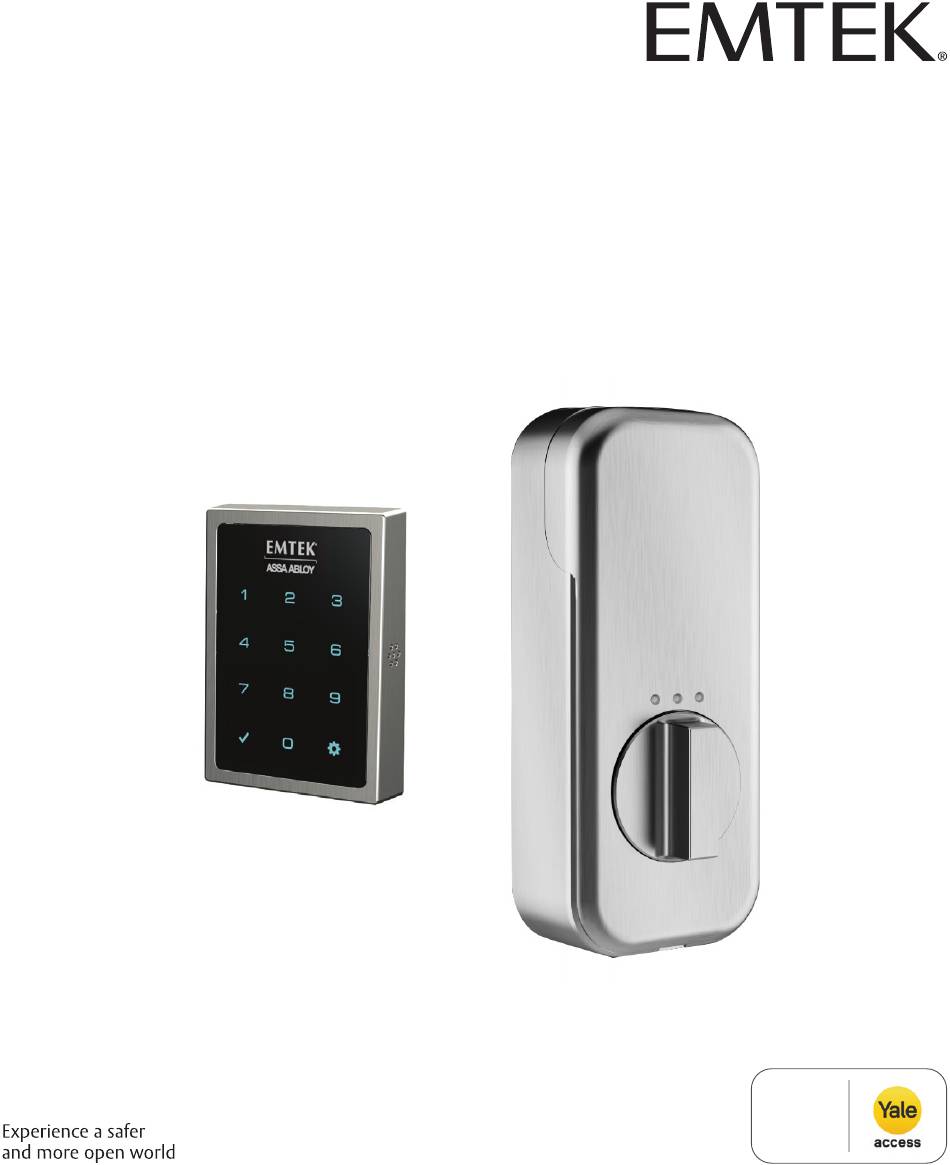

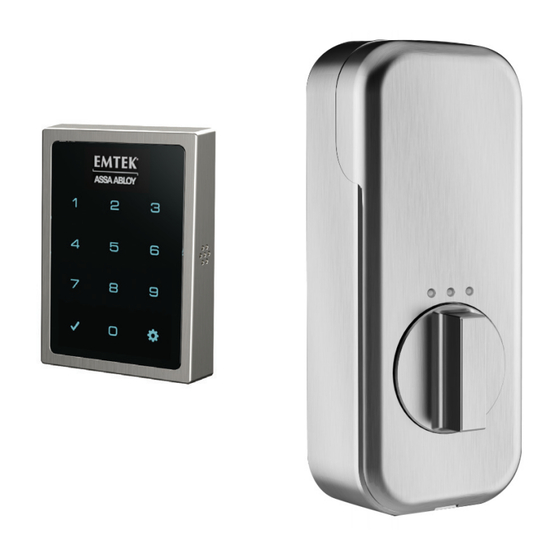

- Page 1 EMPowered Motorized Touchscreen Works with Yale Access Keypad Smart Lock Deadbolt WORKS WITH...
-
Page 2: What's In The Box
What’s in the box Battery Interior Mounting Cover Escutcheon Plate Deadbolt Latch 2-3/4” Strike Plate Security Plate Deadbolt Latch 2-3/8” AA x4 Connect Wi-Fi DoorSense™ Batteries Bridge #8-32 x 5/16” Machine Screws #10-32 x 1-3/8” Machine Screws #8 x 3/4” #10 x 3”... - Page 3 Door Prep 2-3/8” or 2-3/4” Backset 1/8” Deep 2-1/4” 2-1/8” Diameter Bore 1” 1” Diameter Edge Bore Door Jamb Prep 3/16” Deep 1-1/4” Deep 1-1/4” 2-3/4” 3/4” 1-1/8”...
- Page 4 Install Latch & Strike Plate Note: Use only the supplied latch for proper functionality. Bolt must be in retracted (unlocked) position. Note horizontal orientation of mechanism.
- Page 5 Install Touchscreen Escutcheon Outside of the door Inside of the door...
- Page 6 Install Interior Mounting Plate Loosen screw to remove cover.
- Page 7 Connect the Cable Assembly...
- Page 8 Install Interior Escutcheon See comment about reset button on page 26, “Resetting Lock to Factory Default.”...
-
Page 9: Testing Operation
Testing Operation... - Page 10 Installing DoorSense Surface Mount Option DoorSense Mounting DoorSense Mounting Cover Screws Housing Tape 1. Determine mounting location 1-1/2” 3-1/2”...
- Page 11 Installing DoorSense Surface Mount Option 2. Attach mounting tape then screw into frame 3. Complete the DoorSense™ setup in the Yale Access app Lock Settings after completing step 12.
- Page 12 Installing DoorSense Flush Mount Option DoorSense DoorSense Housing 1. Remove magnet from housing and place DoorSense onto the magnet...
-
Page 13: Flush Mount Option
Installing DoorSense Flush Mount Option 2. Drill hole and Insert DoorSense 5/8” Diameter 1/2” Deep 3-1/2” 3. Complete the DoorSense™ setup in the Yale Access app Lock Settings after completing step 12. -
Page 14: Install Batteries
Install Batteries Bolt must be in retracted (unlocked) position before installing batteries. - Page 15 Creating Master PIN Code Creating a Master PIN Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. “Register Master PIN Code.
-
Page 16: Handing The Lock
Handing the Lock Activate the Lock “Handing Lock” “Handing Lock Complete”... - Page 17 Register The Module “Enter Master PIN Code. Press the gear key to continue.” Follow steps below to enter the Programming Menu on the host lock to register your module: 1. Enter the Master PIN Code on the keypad, then select the gear key Press 2.
- Page 18 Download or go the Yale Access App to Complete Installation Set Up an Emtek Lock in the Yale Access App QR Codes Coming Soon SET UP A DEVICE CAN’T SCAN CAN’T FIND THE EMTEK RADIO MODULE MD-01 THE CODE SERIAL NUMBER...
-
Page 19: Install Cover
Install Cover Secure cover by tightening screw on bottom. -
Page 20: Feature Programming Through Menu Mode Using Master Pin Code
Feature Programming Through Menu Mode Using Master PIN Code* 1. Touch screen with back of hand or palm to activate. 2. Enter 4-8 digit master PIN Code* followed by key. Lock Response: “Menu mode, enter number, press key to continue.” 3. - Page 21 Master PIN Code Setting Register Continue User PIN Code Registration Complete Continue Delete Complete Continue All User Codes Complete Automatic Re-lock Disable Advanced Lock Settings 30 sec 60 sec 2 min Continue 3 min Complete Inside Indicator Light Enable Disable One Touch Locking Enable Disable...
- Page 22 Definitions All Code Lockout Mode: This feature is enabled by the Master PIN Code. When enabled, it restricts all user (except Master) PIN Code access. When attempting to enter a code while the unit is in Lockout, the RED locked padlock will appear on the screen.
- Page 23 Previous: While in Menu Mode, pressing this icon cancels the current operation and returns the user to the previous step. Privacy Mode: Privacy mode is disabled by default Privacy mode is enabled/ disabled in the app. Shutdown Time: The unit is shutdown (flashing RED) for sixty (60) seconds and does not allow operation after the wrong code entry limit (5 attempts) has been met.
-
Page 24: Programming Troubleshooting
Programming Troubleshooting Symptom Suggested Action Lock does not respond • Touchscreen becomes active when pressed with whole hand. Use larger area of the hand or fingers - door is open and and verify contact with at least 3 numbers. accessible. •... -
Page 25: Hardware Troubleshooting
Because this product does not have a mechanical override (a key), EMTEK recommends to use this product in an environment where there are additional entry points into the dwelling. - Page 26 Resetting Lock to Factory Default When lock is reset to factory defaults, all User Codes (including the Master PIN Code*) are deleted and all programming features are reset to original default settings (see below). 1. Remove battery cover and batteries. 2.
- Page 27 Compliance FCC INTERFERENCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 28 IN8-EMPWRUNTY REV 21A 01-14-21 Copyright © 2021, EMTEK Products, Inc. an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of EMTEK Products, Inc. is prohibited. WARNING: This product can expose you to chemicals including lead, which is known to the state of California to...
