How to Install

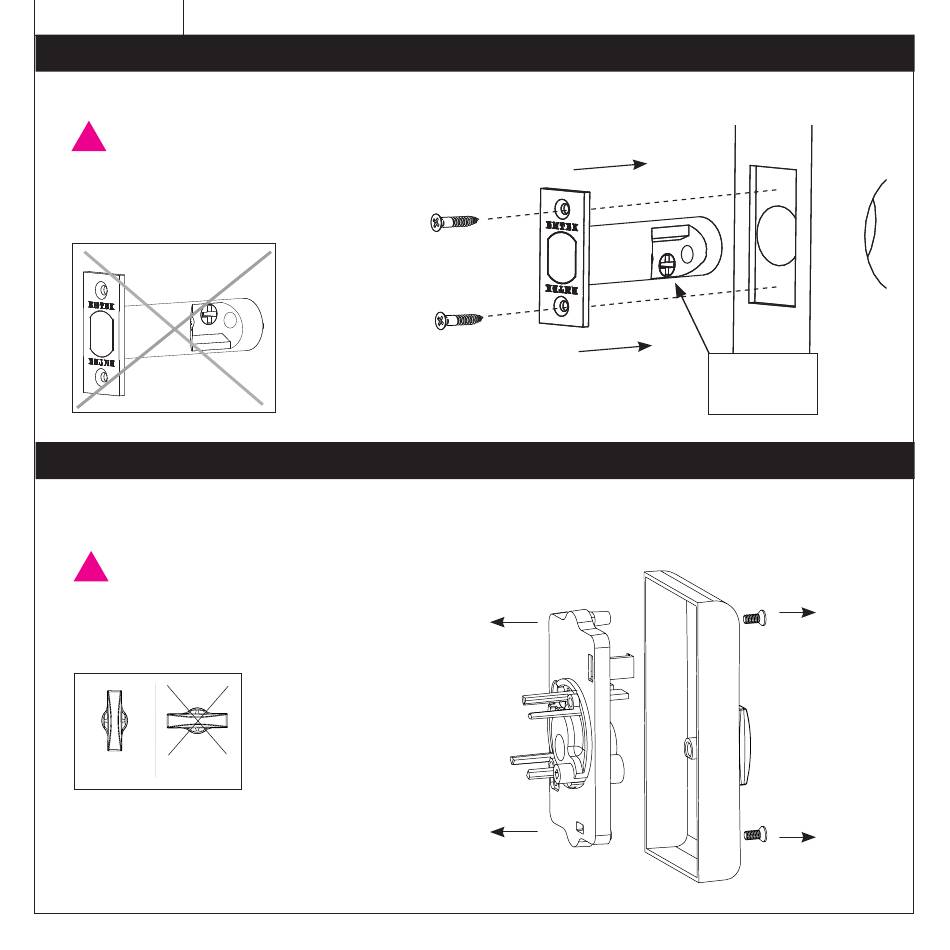

1. Install Latch

Fasten Latch using two #8 x 3/4" Wood Screws (item #6).
!
THE LATCH ASSEMBLY MUST BE ORIENTED
AS SHOWN AND THE BOLT MUST BE IN THE
RETRACTED POSITION FOR INSTALLATION.
2. Remove Screws from Inside Trim Plate
Use a Phillips head screwdriver to remove screws (item #4c) shown below and detach Inside Trim
Plate from the Inside Chassis.
!
REMOVE INSIDE CHASSIS FROM TRIM PLATE
BEFORE INSTALLING THE OUTSIDE TRIM.
THUMBTURN MUST BE IN UNLOCKED POSITION.
Unlocked Locked
4
Crosshairs
at bottom.
screws
(item #4c)
