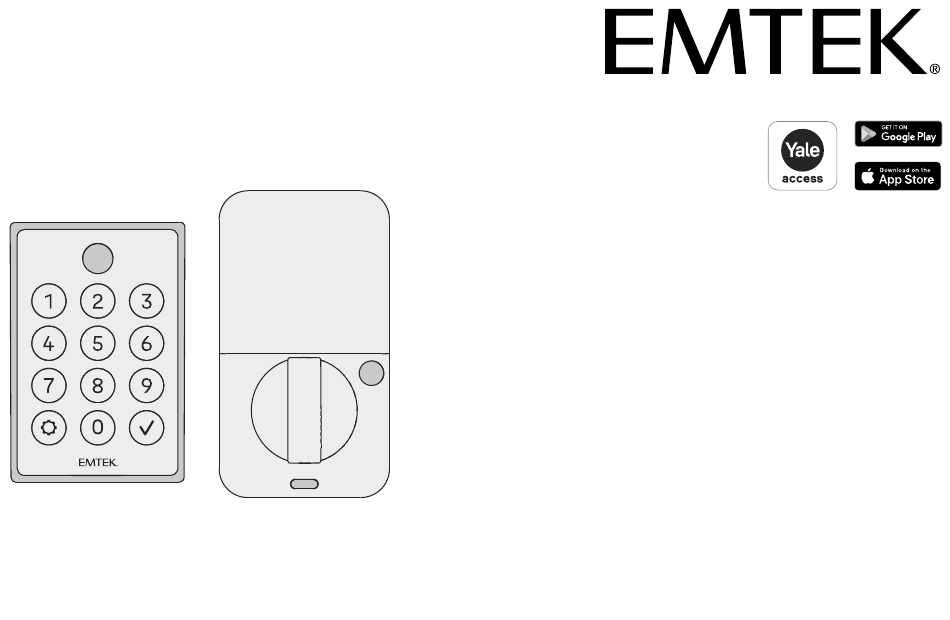

EMPOWERED™ 2 Touch

Key Free Deadbolt

Download Yale Access App

Create an account if you don't already have one, and tap "Set Up a Device".

Note: If you have an account with the August App, use the same username and password for the Yale

Access App.

Install and Set Up Your Lock

Follow the step-by-step Installation Guide in this manual (pages 9-24), or refer to the app

for installation instructions with helpful videos.

Note: If you use the app, please tear off the Door Checker and the Marking Template (pages 5-7) to use

when prompted.

Use Your Lock

Unlock with your fingerprint, create permanent or temporary entry codes, set up Auto-Lock

and more (pages 25-34).

P/N EMPPAD2 Rev A

ISL-2225-00-109
