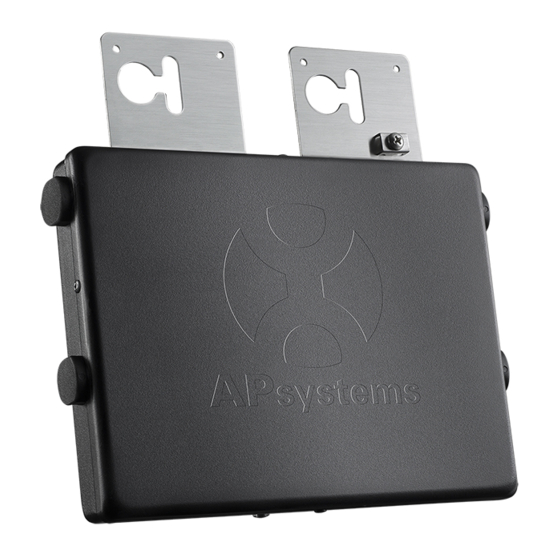

APsystems YC500A-EU Microinverter

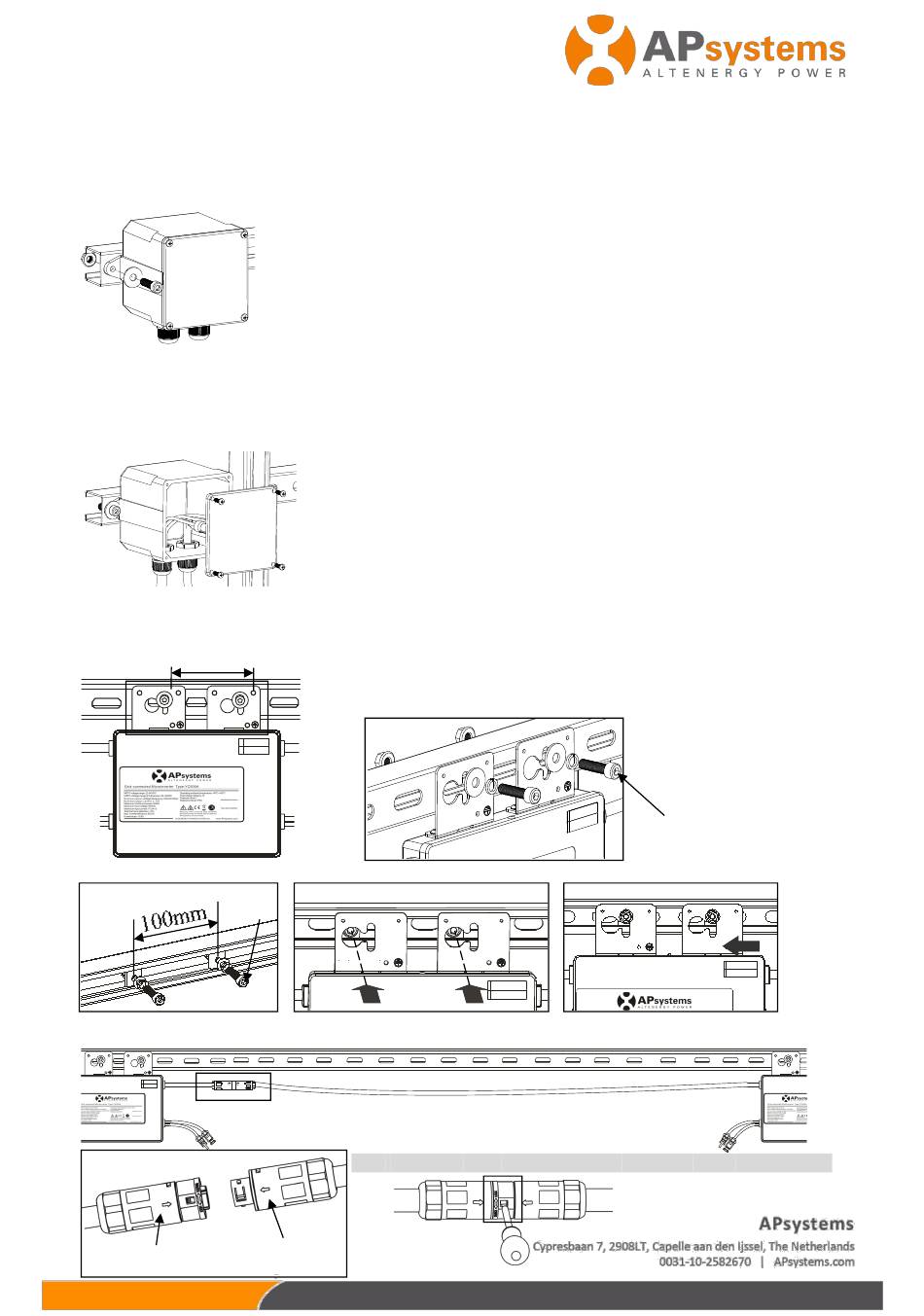

Step 1.Verify the grid voltage to match with microinverter rating.
Step 2. Install the AC branch circuit junction box.
Step 3.Connect the cables to the branch junction box.
a. Put the unused end of the AC interconnector cable into the branch junction box.
b. Place cable connecting to the point of utility interconnection into the branch junction box.
c. Wire the conductors: L- BROWN; N - BLUE; PE – YELLOW GREEN.
Step 4. Attach the APsystems microinverters to the racking or the PV module
frame.
100mm
Option 1:
B
Option 2:
M8
Step 5. Connect the APsystems microinverter AC cables.
A
Female
Connector
Connector
Quick Installation Guide
A
Best Practice: Use screwdriver to split the Main connectors.
Male
1
M8
B
REV3.5 Quick Installation Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APsystems YC500A-EU
Summary of Contents for APsystems YC500A-EU
-
Page 1: Quick Installation Guide
Place cable connecting to the point of utility interconnection into the branch junction box. c. Wire the conductors: L- BROWN; N - BLUE; PE – YELLOW GREEN. Step 4. Attach the APsystems microinverters to the racking or the PV module frame. - Page 2 Step 8. Complete the APsystems installation map. Each APsystems microinverter has two removable serial number labels. Peel labels off, affix one to the respective location on the APsystems installation map, and affix another to the PV module frame which is easy to see. Use the Scanning Gun to scan the serial numbers on the map into the computer or scan by mobile phone, then complete the setting (see ECU manual).
