Porsche(with m.o.s.t. 25 amplifier) data interface 2004-2009

Advertisement

Quick Links

Porsche
(with M.O.S.T. 25 amplifier)
INTERFACE FEATURES
• Provides accessory power
• Retains R.A.P. (retained accessory power)
• Designed for amplified models
INTERFACE COMPONENTS

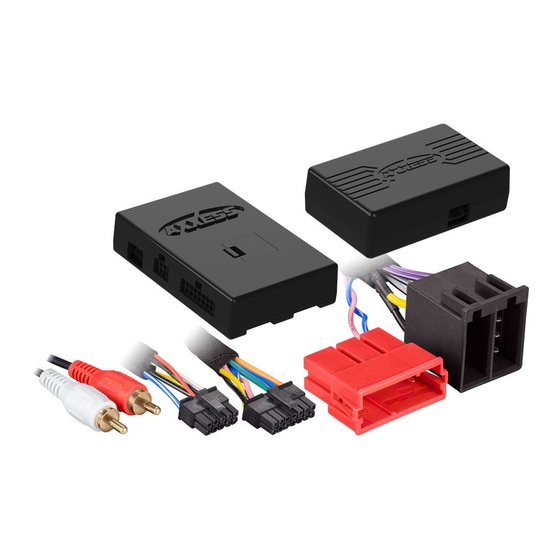

• AX-PO904 interface
• AX-PO904 amplifier interface
• AX-PO904 harness
APPLICATIONS
PORSCHE
911 (997)
2004-2009
AxxessInterfaces.com
Data Interface
2004-2009
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains balance
• Micro "B" USB updatable
Boxster (987)
2004-2009
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
Cayman (987c)
2004-2009
AX-PO904
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made .......................................2
Installing the interface ..........................................2
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 2/27/18 INSTAX-PO904
