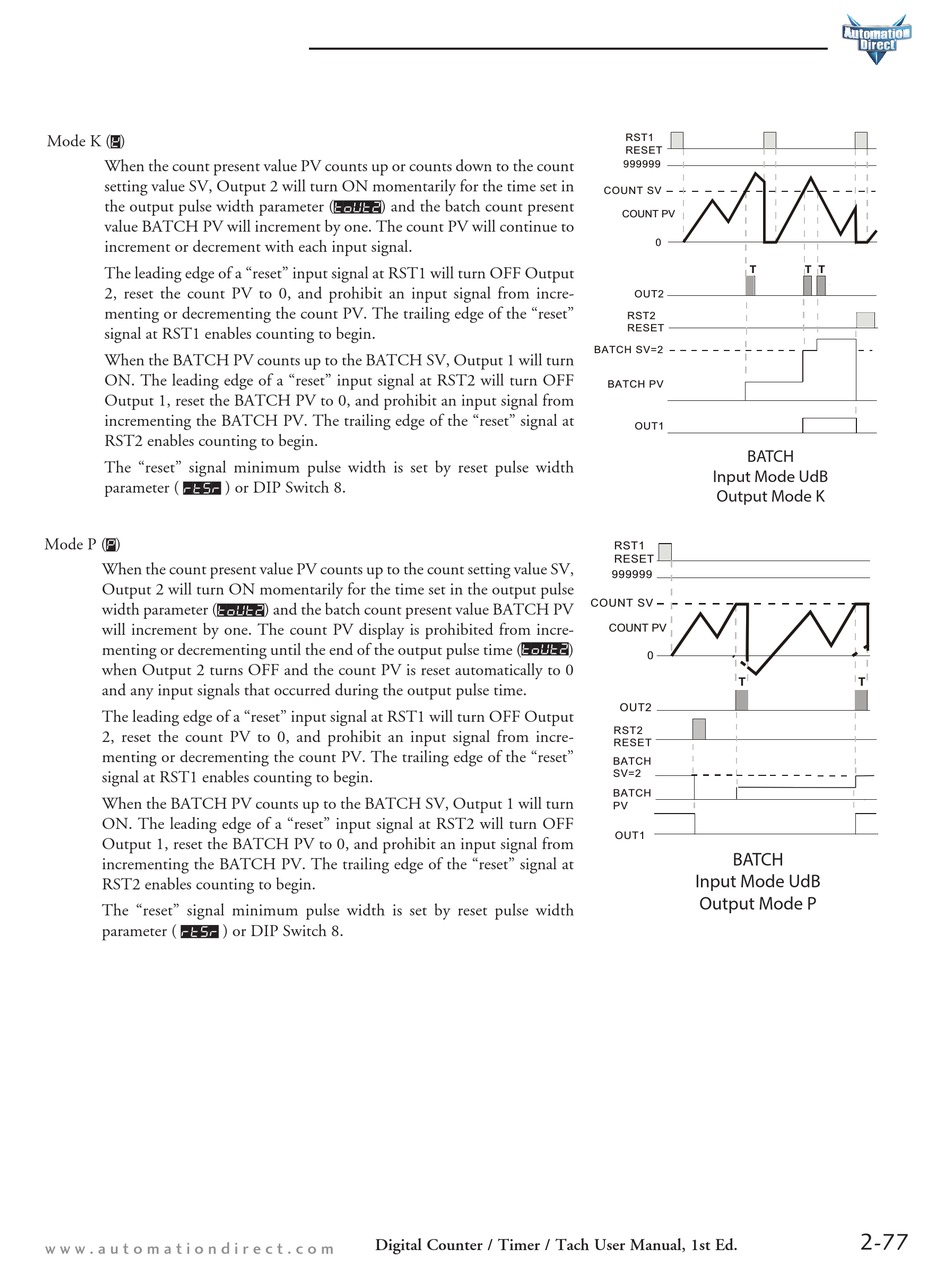

Mode K ( k )
When the count present value PV counts up or counts down to the count
setting value SV, Output 2 will turn ON momentarily for the time set in
the output pulse width parameter ( tout2 ) and the batch count present
value BATCH PV will increment by one. The count PV will continue to
increment or decrement with each input signal.
The leading edge of a "reset" input signal at RST1 will turn OFF Output
2, reset the count PV to 0, and prohibit an input signal from incre-
menting or decrementing the count PV. The trailing edge of the "reset"
signal at RST1 enables counting to begin.
When the BATCH PV counts up to the BATCH SV, Output 1 will turn
ON. The leading edge of a "reset" input signal at RST2 will turn OFF
Output 1, reset the BATCH PV to 0, and prohibit an input signal from
incrementing the BATCH PV. The trailing edge of the "reset" signal at
RST2 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse width
parameter ( rtSr ) or DIP Switch 8.
Mode P ( P )
When the count present value PV counts up to the count setting value SV,
Output 2 will turn ON momentarily for the time set in the output pulse
width parameter ( tout2 ) and the batch count present value BATCH PV
will increment by one. The count PV display is prohibited from incre-
menting or decrementing until the end of the output pulse time (tout2)
when Output 2 turns OFF and the count PV is reset automatically to 0
and any input signals that occurred during the output pulse time.
The leading edge of a "reset" input signal at RST1 will turn OFF Output
2, reset the count PV to 0, and prohibit an input signal from incre-
menting or decrementing the count PV. The trailing edge of the "reset"
signal at RST1 enables counting to begin.
When the BATCH PV counts up to the BATCH SV, Output 1 will turn
ON. The leading edge of a "reset" input signal at RST2 will turn OFF
Output 1, reset the BATCH PV to 0, and prohibit an input signal from
incrementing the BATCH PV. The trailing edge of the "reset" signal at
RST2 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse width
parameter ( rtSr ) or DIP Switch 8.
w w w . a u t o m a t i o n d i r e c t . c o m
Digital Counter / Timer / Tach User Manual, 1st Ed.
RST1
RESET
999999
COUNT SV
COUNT PV
0
T
OUT2
RST2
RESET
BATCH SV=2
BATCH PV
OUT1
BATCH
Input Mode UdB
Output Mode K
RST1
RESET
999999
COUNT SV
COUNT PV
0
T
OUT2
RST2
RESET
BATCH
SV=2
BATCH
PV
OUT1
BATCH
Input Mode UdB
Output Mode P
T
T
T
2-77
