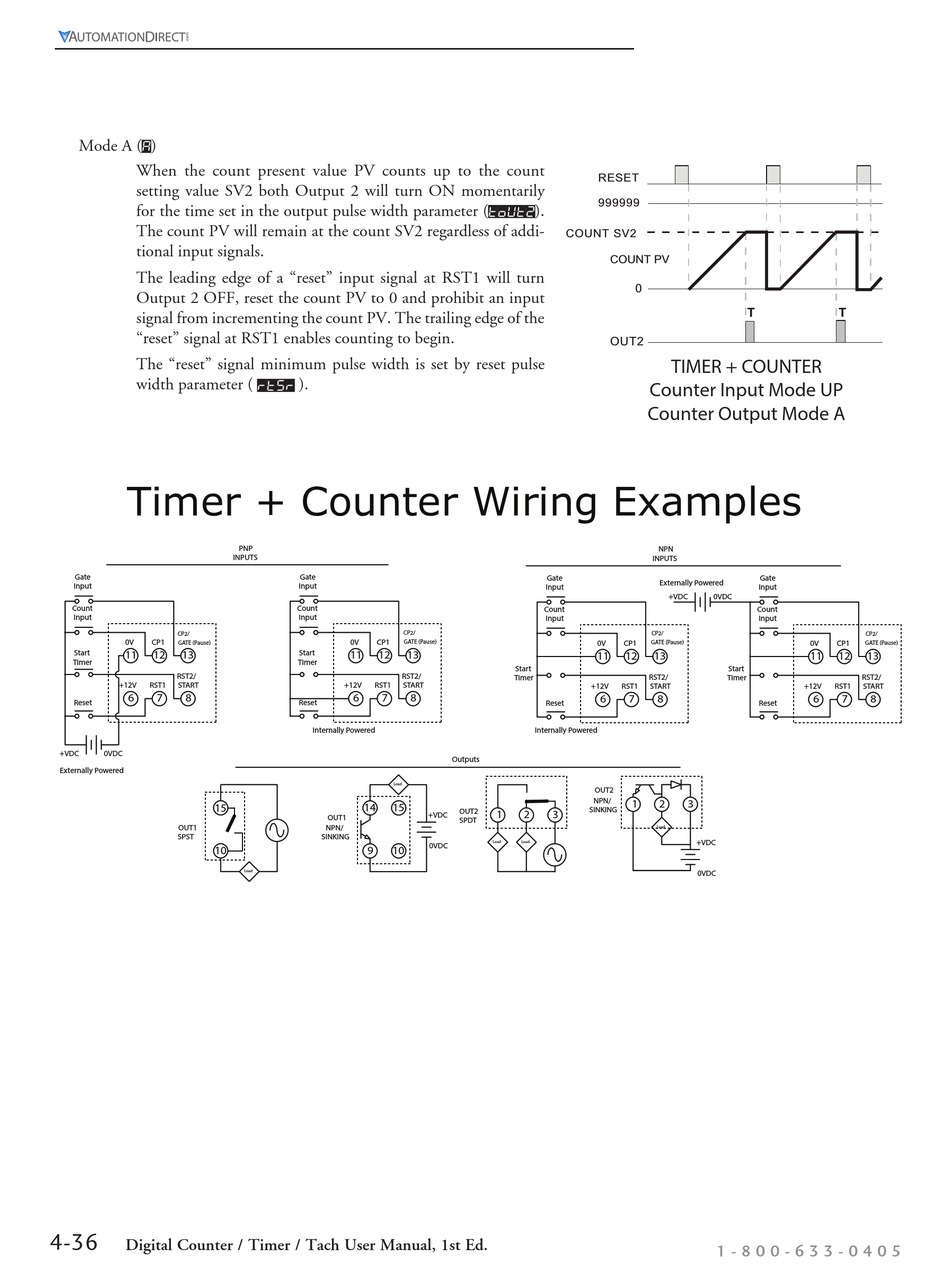

Mode A ( A )
When the count present value PV counts up to the count
setting value SV2 both Output 2 will turn ON momentarily
for the time set in the output pulse width parameter ( tout2 ).
The count PV will remain at the count SV2 regardless of addi-
tional input signals.
The leading edge of a "reset" input signal at RST1 will turn
Output 2 OFF, reset the count PV to 0 and prohibit an input
signal from incrementing the count PV. The trailing edge of the
"reset" signal at RST1 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse
width parameter ( rtSr ).
Timer + Counter Wiring Examples
Gate
Input
Count
Input
CP2/
0V CP1
GATE (Pause)
Start 11 12 13
Timer
RST2/
+12V RST1 START
6 7 8
Reset
+VDC 0VDC
Externally Powered
15
OUT1
SPST
10
4-36
Digital Counter / Timer / Tach User Manual, 1st Ed.
PNP
INPUTS
Gate
Input
Count
Input
CP2/
0V CP1 GATE (Pause)
Start 11 12 13
Timer
RST2/
+12V RST1 START
6 7 8
Reset
Internally Powered
Load
14 15
OUT1
NPN/
SINKING
9 10
Load
RESET
999999
COUNT SV2
Gate
Input
Count
Input
0V
11
Start
Timer
+12V
6
Reset
Internally Powered
Outputs
OUT2
NPN/
SINKING
OUT2
1 2 3
+VDC
SPDT
Load Load
0VDC
COUNT PV
0
T
OUT2
TIMER + COUNTER
Counter Input Mode UP
Counter Output Mode A
NPN
INPUTS
Gate
Externally Powered
Input
+VDC 0VDC
Count
Input
CP2/
CP1 GATE (Pause)
12 13
Start
RST2/ Timer
RST1 START
7 8
Reset
1 2 3
Load
+VDC
0VDC
