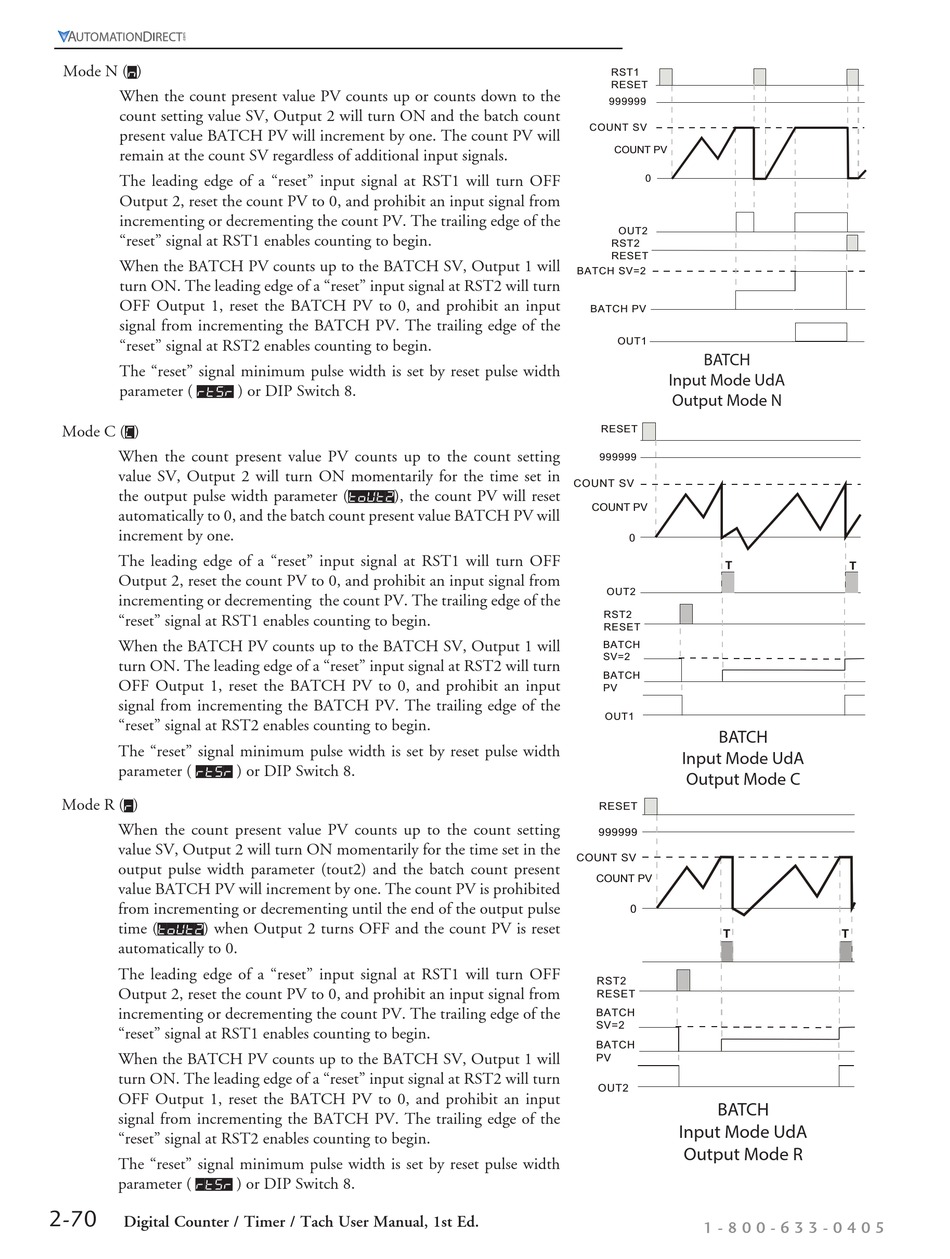

Mode N ( n )
When the count present value PV counts up or counts down to the
count setting value SV, Output 2 will turn ON and the batch count
present value BATCH PV will increment by one. The count PV will
remain at the count SV regardless of additional input signals.
The leading edge of a "reset" input signal at RST1 will turn OFF
Output 2, reset the count PV to 0, and prohibit an input signal from
incrementing or decrementing the count PV. The trailing edge of the
"reset" signal at RST1 enables counting to begin.
When the BATCH PV counts up to the BATCH SV, Output 1 will
turn ON. The leading edge of a "reset" input signal at RST2 will turn
OFF Output 1, reset the BATCH PV to 0, and prohibit an input
signal from incrementing the BATCH PV. The trailing edge of the
"reset" signal at RST2 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse width
parameter ( rtSr ) or DIP Switch 8.
Mode C ( C )
When the count present value PV counts up to the count setting
value SV, Output 2 will turn ON momentarily for the time set in
the output pulse width parameter ( tout2 ), the count PV will reset
automatically to 0, and the batch count present value BATCH PV will
increment by one.
The leading edge of a "reset" input signal at RST1 will turn OFF
Output 2, reset the count PV to 0, and prohibit an input signal from
incrementing or decrementing the count PV. The trailing edge of the
"reset" signal at RST1 enables counting to begin.
When the BATCH PV counts up to the BATCH SV, Output 1 will
turn ON. The leading edge of a "reset" input signal at RST2 will turn
OFF Output 1, reset the BATCH PV to 0, and prohibit an input
signal from incrementing the BATCH PV. The trailing edge of the
"reset" signal at RST2 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse width
parameter ( rtSr ) or DIP Switch 8.
Mode R ( r )
When the count present value PV counts up to the count setting
value SV, Output 2 will turn ON momentarily for the time set in the
output pulse width parameter (tout2) and the batch count present
value BATCH PV will increment by one. The count PV is prohibited
from incrementing or decrementing until the end of the output pulse
time ( tout2 ) when Output 2 turns OFF and the count PV is reset
automatically to 0.
The leading edge of a "reset" input signal at RST1 will turn OFF
Output 2, reset the count PV to 0, and prohibit an input signal from
incrementing or decrementing the count PV. The trailing edge of the
"reset" signal at RST1 enables counting to begin.
When the BATCH PV counts up to the BATCH SV, Output 1 will
turn ON. The leading edge of a "reset" input signal at RST2 will turn
OFF Output 1, reset the BATCH PV to 0, and prohibit an input
signal from incrementing the BATCH PV. The trailing edge of the
"reset" signal at RST2 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse width
parameter ( rtSr ) or DIP Switch 8.
2-70
Digital Counter / Timer / Tach User Manual, 1st Ed.
