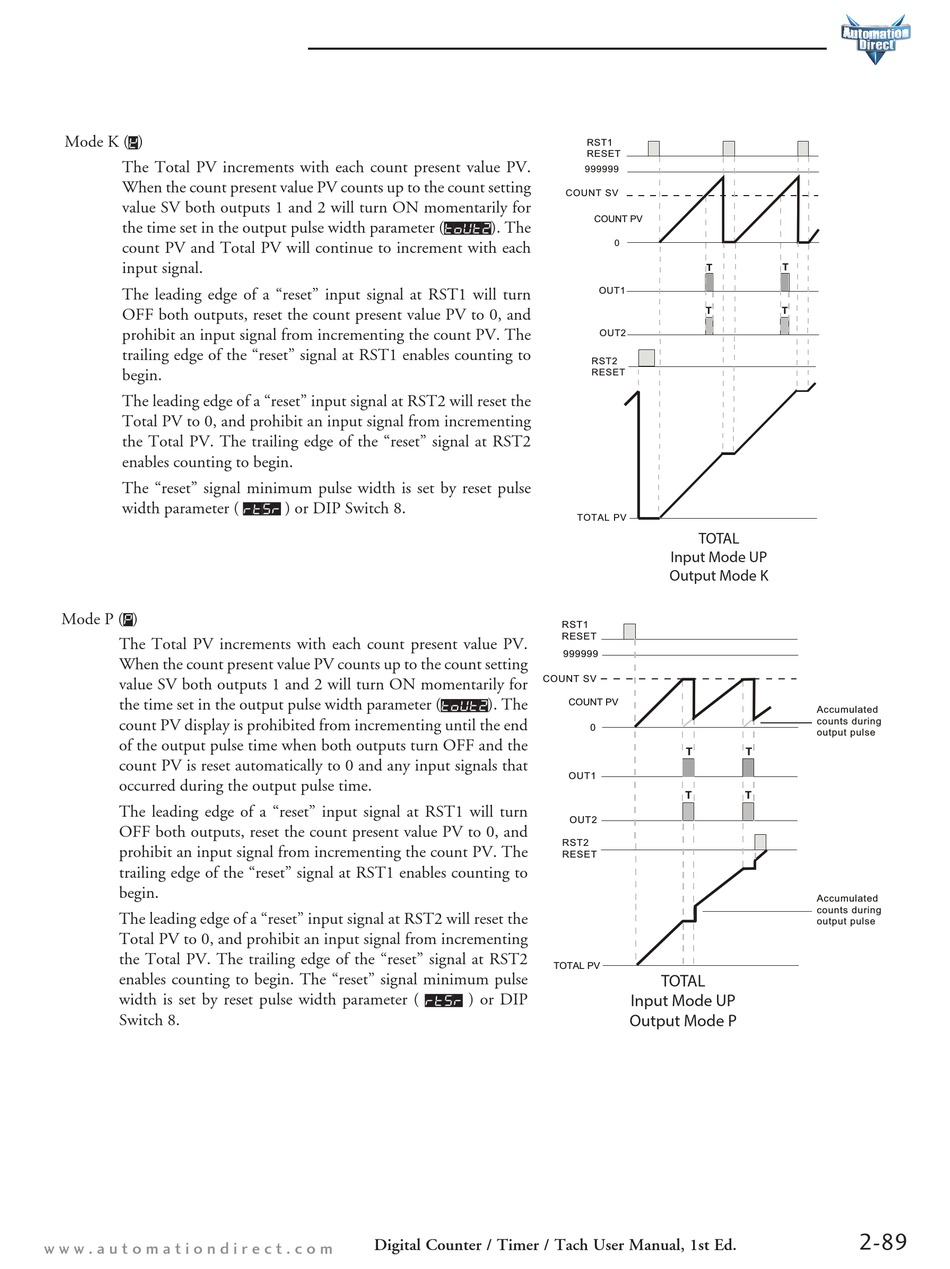

Mode K ( k )
The Total PV increments with each count present value PV.
When the count present value PV counts up to the count setting
value SV both outputs 1 and 2 will turn ON momentarily for
the time set in the output pulse width parameter ( tout2 ). The
count PV and Total PV will continue to increment with each
input signal.
The leading edge of a "reset" input signal at RST1 will turn
OFF both outputs, reset the count present value PV to 0, and
prohibit an input signal from incrementing the count PV. The
trailing edge of the "reset" signal at RST1 enables counting to
begin.
The leading edge of a "reset" input signal at RST2 will reset the
Total PV to 0, and prohibit an input signal from incrementing
the Total PV. The trailing edge of the "reset" signal at RST2
enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse
width parameter ( rtSr ) or DIP Switch 8.
Mode P ( P )
The Total PV increments with each count present value PV.
When the count present value PV counts up to the count setting
value SV both outputs 1 and 2 will turn ON momentarily for
the time set in the output pulse width parameter ( tout2 ). The
count PV display is prohibited from incrementing until the end
of the output pulse time when both outputs turn OFF and the
count PV is reset automatically to 0 and any input signals that
occurred during the output pulse time.
The leading edge of a "reset" input signal at RST1 will turn
OFF both outputs, reset the count present value PV to 0, and
prohibit an input signal from incrementing the count PV. The
trailing edge of the "reset" signal at RST1 enables counting to
begin.
The leading edge of a "reset" input signal at RST2 will reset the
Total PV to 0, and prohibit an input signal from incrementing
the Total PV. The trailing edge of the "reset" signal at RST2
enables counting to begin. The "reset" signal minimum pulse
width is set by reset pulse width parameter ( rtSr ) or DIP
Switch 8.
w w w . a u t o m a t i o n d i r e c t . c o m
COUNT SV
Digital Counter / Timer / Tach User Manual, 1st Ed.
RST1
RESET
999999
COUNT SV
COUNT PV
0
T
OUT1
T
OUT2
RST2
RESET
TOTAL PV
TOTAL
Input Mode UP
Output Mode K
RST1
RESET
999999
COUNT PV
0
T
OUT1
T
OUT2
RST2
RESET
TOTAL PV
TOTAL
Input Mode UP
Output Mode P
T
T
Accumulated
counts during
output pulse
T
T
Accumulated
counts during
output pulse
