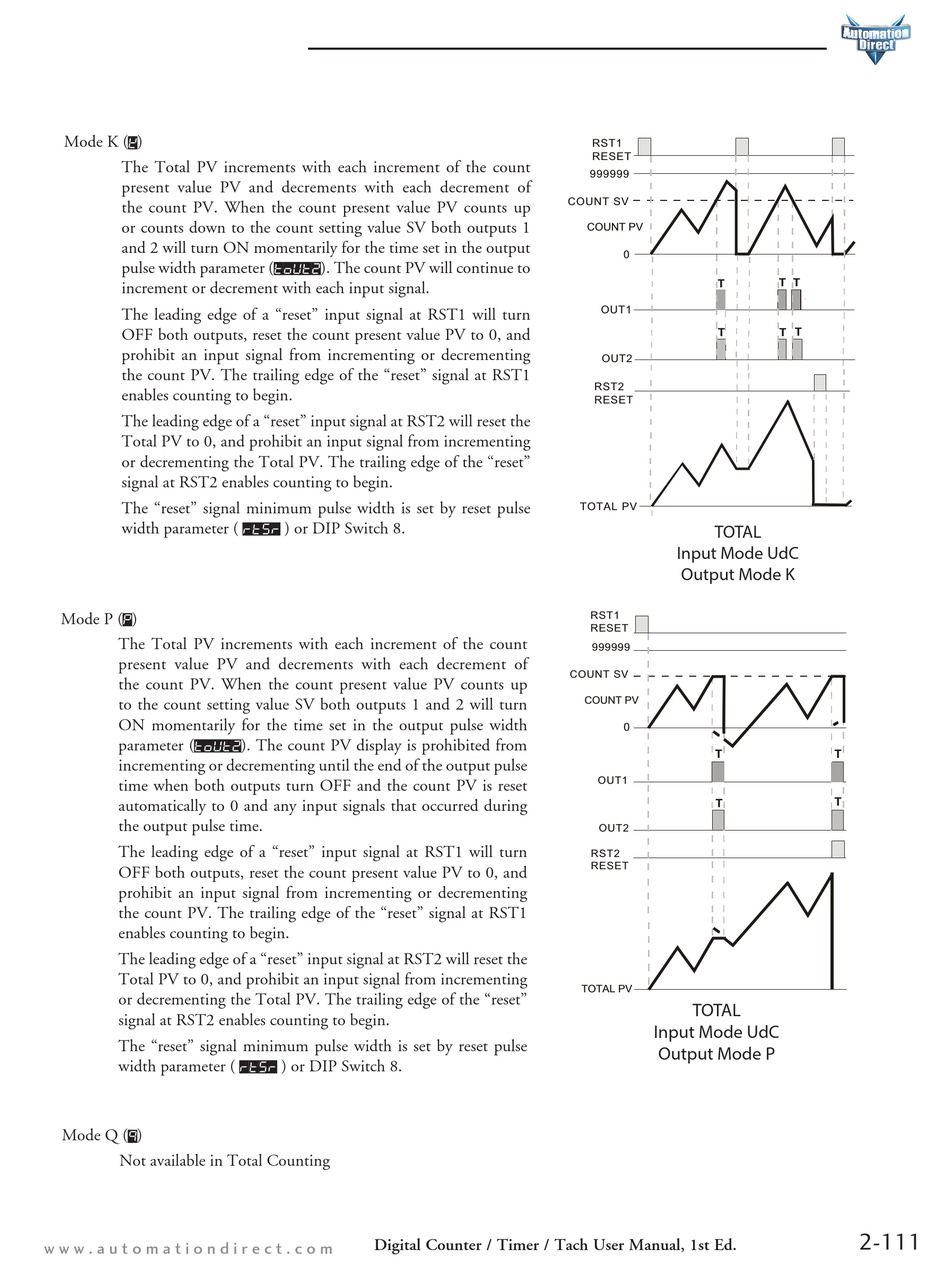

Mode K ( k )
The Total PV increments with each increment of the count
present value PV and decrements with each decrement of
the count PV. When the count present value PV counts up
or counts down to the count setting value SV both outputs 1
and 2 will turn ON momentarily for the time set in the output
pulse width parameter ( tout2 ). The count PV will continue to
increment or decrement with each input signal.
The leading edge of a "reset" input signal at RST1 will turn
OFF both outputs, reset the count present value PV to 0, and
prohibit an input signal from incrementing or decrementing
the count PV. The trailing edge of the "reset" signal at RST1
enables counting to begin.
The leading edge of a "reset" input signal at RST2 will reset the
Total PV to 0, and prohibit an input signal from incrementing
or decrementing the Total PV. The trailing edge of the "reset"
signal at RST2 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse
width parameter ( rtSr ) or DIP Switch 8.
Mode P ( P )
The Total PV increments with each increment of the count
present value PV and decrements with each decrement of
the count PV. When the count present value PV counts up
to the count setting value SV both outputs 1 and 2 will turn
ON momentarily for the time set in the output pulse width
parameter ( tout2 ). The count PV display is prohibited from
incrementing or decrementing until the end of the output pulse
time when both outputs turn OFF and the count PV is reset
automatically to 0 and any input signals that occurred during
the output pulse time.
The leading edge of a "reset" input signal at RST1 will turn
OFF both outputs, reset the count present value PV to 0, and
prohibit an input signal from incrementing or decrementing
the count PV. The trailing edge of the "reset" signal at RST1
enables counting to begin.
The leading edge of a "reset" input signal at RST2 will reset the
Total PV to 0, and prohibit an input signal from incrementing
or decrementing the Total PV. The trailing edge of the "reset"
signal at RST2 enables counting to begin.
The "reset" signal minimum pulse width is set by reset pulse
width parameter ( rtSr ) or DIP Switch 8.
Mode Q ( q )
Not available in Total Counting
w w w . a u t o m a t i o n d i r e c t . c o m
Digital Counter / Timer / Tach User Manual, 1st Ed.
RST1
RESET
999999
COUNT SV
COUNT PV
0
T
OUT1
T
OUT2
RST2
RESET
TOTAL PV
TOTAL
Input Mode UdC
Output Mode K
RST1
RESET
999999
COUNT SV
COUNT PV
0
T
OUT1
T
OUT2
RST2
RESET
TOTAL PV
TOTAL
Input Mode UdC
Output Mode P
T T
T T
T
T
2-111
