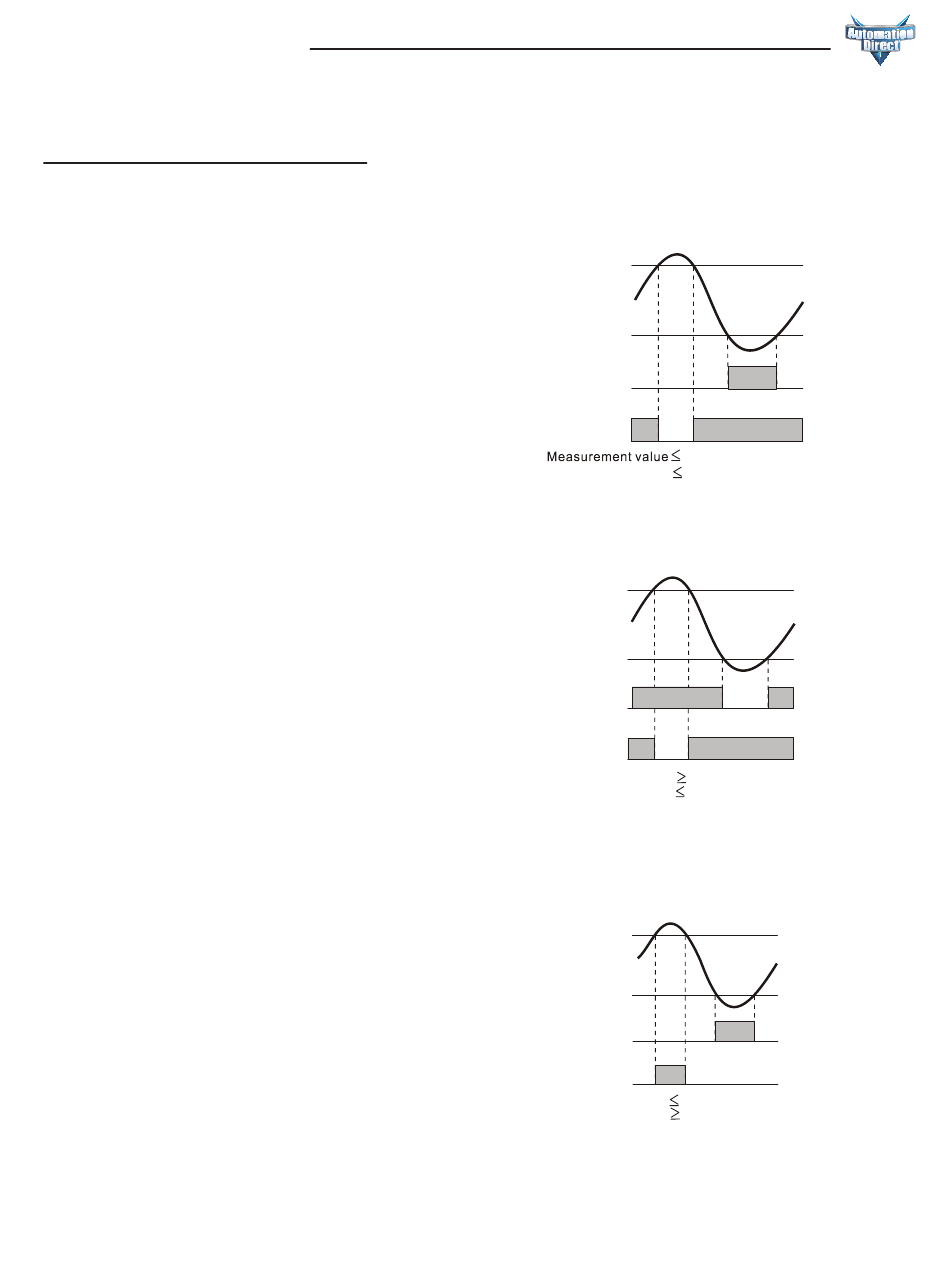

Tachometer Output Modes
2Lo1Lo
When the measured present value PV is less than or
equal to the set value SV1 Output 1will turn ON.
When the measured PV is greater than SV1 Output 1
will turn OFF.
When the measured present value PV is less than or
equal to the set value SV2 Output 2 will turn ON.
When the measured PV is greater than SV2 Output 2
will turn OFF.
2Lo1Hi
When the measured present value PV is greater than
or equal to the set value SV1 Output 1 will turn ON.
When the measured PV is less than SV1 Output 1 will
turn OFF.
When the measured present value PV is less than or
equal to the set value SV2 Output 2 will turn ON.
When the measured PV is greater than SV2 Output 2
will turn OFF.
2Hi1Lo
When the measured present value PV is less than or
equal to the set value SV1 Output 1will turn ON. When
the measured PV is greater than SV1 Output 1 will turn
OFF.
When the measured present value PV is greater than
or equal to the set value SV2 Output 2 will turn ON.
When the measured PV is less than SV2 Output 2 will
turn OFF.
w w w . a u t o m a t i o n d i r e c t . c o m
OUT2 set value
Measurement value
OUT1 set value
Measurement value
OUT2 set value
Measurement value
OUT1 set value
Measurement value
Measurement value
OUT2 set value
Measurement value
OUT1 set value
Measurement value
Measurement value
Digital Counter / Timer / Tach User Manual, 1st Ed.
2
L
o
1
L
o
OUT1
OUT2
OUT1 set value : OUT1 ON
OUT2 set value : OUT2 ON
2
L
o
1
i H
OUT1
OUT2
OUT1 set value : OUT1 ON
OUT2 set value : OUT2 ON
2
H
1 i
L
o
OUT1
OUT2
OUT1 set value : OUT1 ON
OUT2 set value : OUT2 ON
(LO-LO)
(LO-HI)
(HI-LO)
5-3
