HP ENVY 5540 Set-‐Up

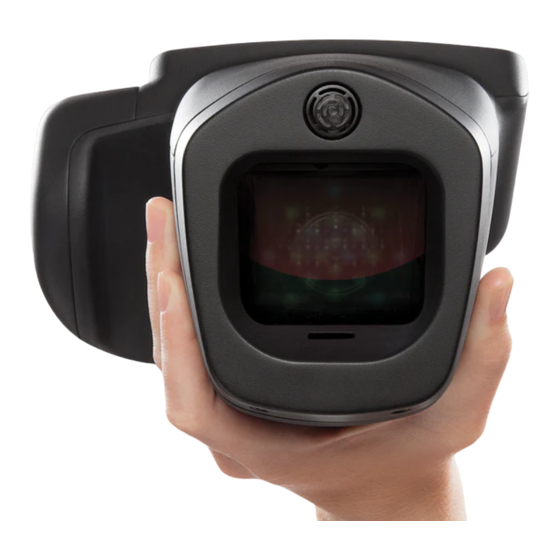

Spot VS100, VS100-B, 30028, 30018

Need help?

Do you have a question about the Spot VS100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Welch Allyn Spot VS100

Page 1 HP ENVY 5540 Set-‐Up Spot VS100, VS100-B, 30028, 30018...
Page 2 HP Printer Set-Up: Please follow the HP manufacturer instructions to unpack and set-up the printer • Please use the following pages to connect your Spot VS100 to the HP 5540 • Note: id and passwords in this document are “examples,” please note actual id...
Page 3 - HP ENVY 5540 T ouchscreen, 1 & 2 Select icon indicated above NOTE: Status will be off unless customer already turned on. IF OFF: Tap the settings icon.
Page 4 - HP ENVY 5540 T ouchscreen, 3 & 4 Tap “OFF” to toggle to “ON” After toggling on the customer should see this screen. Then tap the back arrow.
Page 5 - HP ENVY 5540 T ouchscreen, 5 NOTE: The customer may find The customer should now see the screen above. it easier to write down Confirm Status is “ON” the Name and Password than coping it from the Advise customer SSID is the entire WiFi Direct Name and printer.
Page 6 - Select “T ools” on Spot VS100...
Page 7 - Select “Network”...
Page 8 - Confirm wireless power is enabled (green)
Page 9 - Select “edit” to enter SSID Name...
Page 10 - Enter SSID Name, select “OK” HP-Print-7E-ENVY 5540 series SSID Name = WIFI Direct Name taken from printer NOTE: CAPITALIZATION, spaces and characters must be entered exactly!
Page 11 - Choose “Security Type” WPA HP-Print-7E-ENVY 5540 series...
Page 12 - Select “Passphrase” HP-Print-7E-ENVY 5540 series...
Page 13 - Enter “Passphrase” then select OK 71700006 Passphrase = WIFI Direct Password from printer WPA Passphrase is between 8 and 64 characters...
Page 14 - Select “OK” again; wait for connection HP-Print-7E-ENVY 5540 series...
Page 15 - Network Connection in Process...
Page 16 - WiFi Connection Confirmed; select X HP-Print-7E-ENVY 5540 series HP- ‐ P rint-‐ENVY 5540 series 192.168.223.100 1. If Current Network and IP Address do NOT populate: 2. Confirm the SSID has been entered correctly. Capitalization, symbols and spaces have to be EXACTLY the same. If correct proceed to step 3.
Page 17 - Select “Printer”...
Page 18 - Select Printer, if shown HP-ENVY 5540 series {38137C] 1. Select HP-ENVY 5540 if displayed. 2. IF NOT displayed confirm network connection. 3. Reboot screener and printer. Turn off both. Turn on printer first, then Spot 4. If the printer does not show up after reboot proceed to the next page...
Page 19 - If printer is not shown, select + HP- ENVY 100 d410 series HP Photosmart 3308 All-in-one 1. Tap on the “+” 2. Search for HP ENVY 100 d14 series or HP Photosmart 3308 All-in- one Printer then select the printer...
Page 20 - If Discovered Printer is Shown, select “Save” 1. Name field can be edited to customer preference if desired. 2. Have customer edit driver field. 1. Tap EDIT 2. Search 5530 3. Choose HP ENVY 5530 driver.
Page 21 - After “Save” selected, tap “Print T est Page”...
Page 22 - T est Page Printed...
