> MAINTENANCE PARTS CLEANING & REPLACING PROCEDURES
WARNING
W
> Always use this menu to perform cleanings or replace parts :
Menu
>
Maintenance

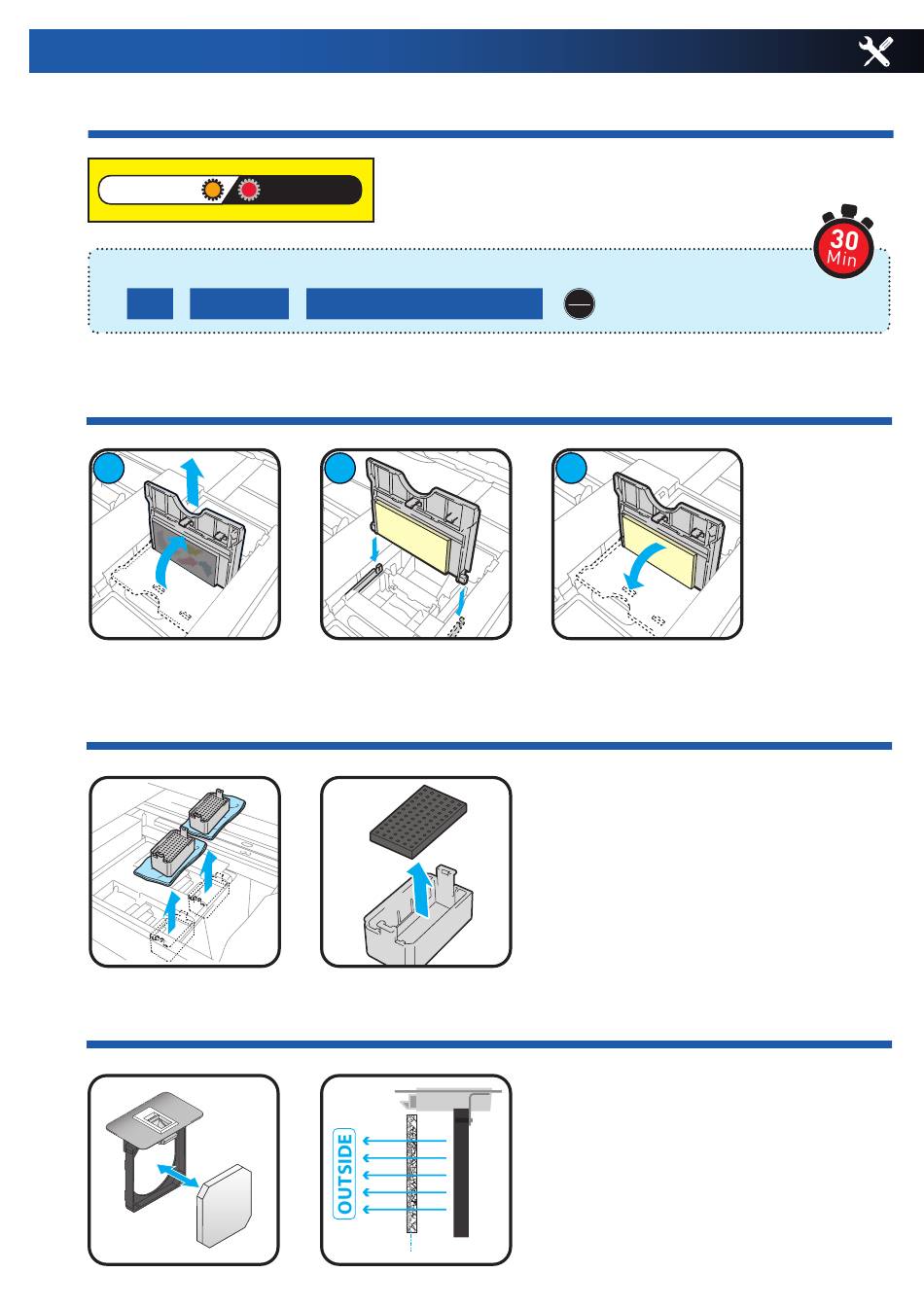

> WIPER CLEANER REPLACEMENT
1
Simply remove the old Wiper Cleaner by lifting it up. Replace with a new one.
> FLUSHING FOAM REPLACEMENT
> FAN FILTER REPLACEMENT
In case of Warning/Error messages please follow the
ERROR
E
following procedures:
>
Maintenance Part Clean/Replace
2
MESH
AIR FLOW
FINE
COARSE

MAINTENANCE PARTS EXCHANGE

>
and follow instructions on the display
MENU
OK
3
Lift up the flushing receivers and
place them on cleaning paper to
avoid dripping ink.
Remove Flushing Foams and clean
the holes of the receivers.
Install new Foams and put back the
receivers at their original location.
Extract the 2 filter holders from the
back of the machine.
Mount a new Fan Filter in each black
frames.
Coarse mesh surface in direction of
the inner side of the printer and fine
mesh surface in direction of the out-
side of the printer.
