Wiper Cleaning

>
Nozzle Guards Cleaning
>
Wipe clean the 2 nozzle guards
dipped in Cleaning Solution
Be sure not to touch the nozzle surface
Manually move the carriage to such a position
that you can perform the cleaning with ease
CLEAN
8

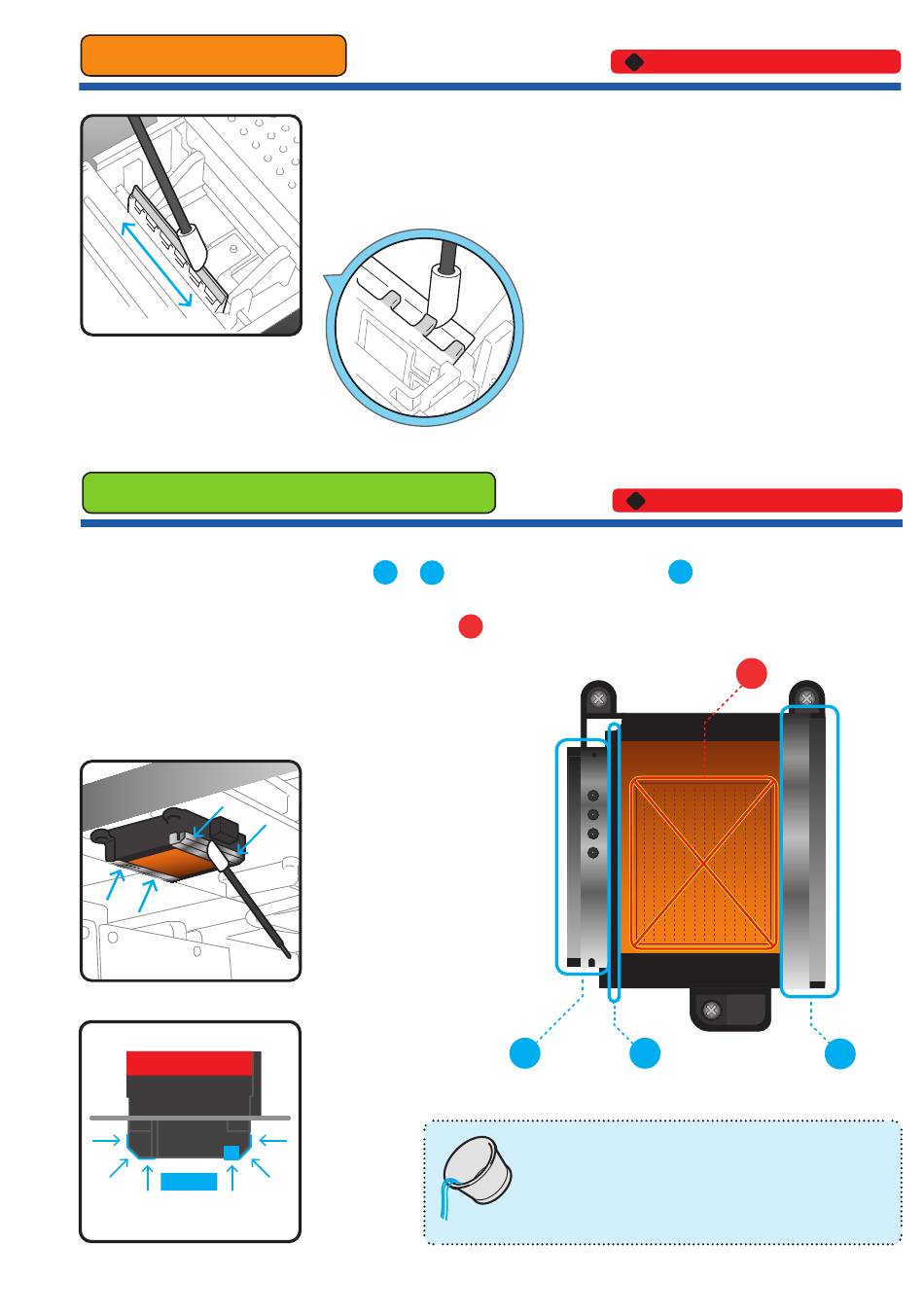

Both white plastic wipers [White & CMYK] should be cleaned
on both sides and top with the Cleaning Stick R dipped in
Cleaning Solution.
1 & 3 and the black resin area
at all !
4
TO BE DONE EVERY WEEK
!
Use the tip of the Cleaning Stick R
to clean under the teeth of the wiper
holder and remove the dried ink
Be sure to use the Cleaning stick R
separately for white ink and color ink!
TO BE DONE EVERY WEEK
!
2
1 2
> The remaining Cleaning Solution from
the Cleaning Cup should be emptied in the
Maintenance Station under the front side of
each Flushing Receivers
with the Clean Stick R
4
3
