TECHCON SYSTEMS TS550R User Manual page 8

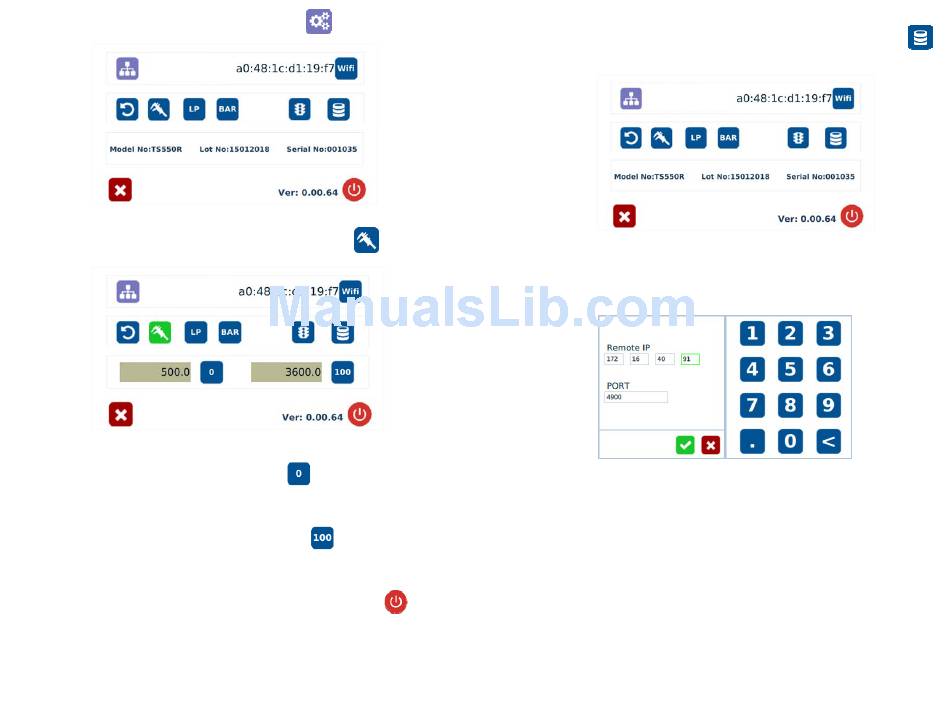

4. Touch the Setup icon to enter the setup screen
5. Touch the Calibration icon to enter the calibration screen
Note: Make sure the air pressure line is not connected to the unit at this time.
6. Touch the "0" icon to set the pressure to 0
7. Now connect the supplied air pressure line to the back of the unit and turn
up input air pressure to 100 psi
8. Touch the "100" icon to set the pressure to 100
Note: The digital values shown at "0" and "100" icons are for reference only.
The actual calibrated values will be different.
9. Touch the Reboot icon to save the settings and reboot the system
10. Wait until the system completes the rebooting sequence and the home
screen is displayed
The unit is now calibrated and ready to operate
8
18. Go to the setup screen of the controller and touch the "Remote Server"
icon
19. Enter the Server IPv4 address recorded in step #11 into Remote IP address box
20. Touch the Check Mark icon to save
21. The controller is now connected to the webserver site.
