Installation
CAUTION:
Do not use thread sealant on header or pigtail
connections.
7. Additional shipping cartons contain header
segments and header wall brackets.
Depending on number of cylinders, header
extensions are configured with two or three
cylinder inlets. Large manifold systems may
also include combinations and multiples of
each type of header extension. Remove large
nut and plug from right manifold inlet. Attach
appropriate header extension to right side of
manifold control panel. Position cylinder inlet
connections of each header extension so they
are pointing out (away from wall) and tighten
header extension (Figure 4).
CAUTION:
Each header segment must be supported by
a header bracket before additional header
segments are added.

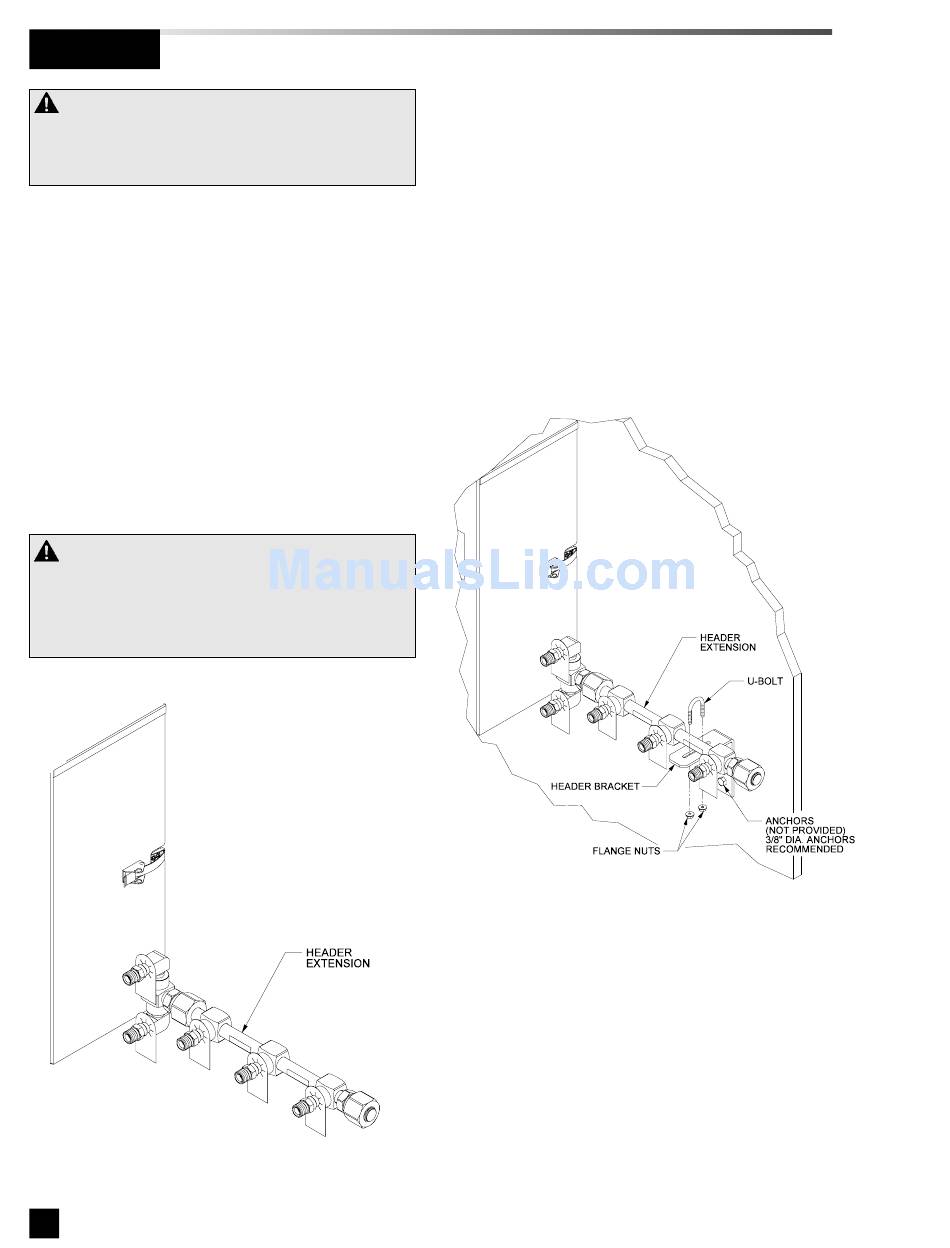

Figure 4
8
Part No. 6-847703-00 Rev. C00
8. Each header extension is shipped with a
header bracket. Position bracket against wall
and on bottom side of header as shown in
Figure 5. Attach bracket to wall using
appropriate anchors (by others). 3/8"
diameter anchors are recommended.
9. Assemble u-bolt and bracket hardware as
shown. Tighten u-bolt nuts.
10. Install large nut and plug removed in step 7 on
end of last header extension. Tighten large
nut.
Figure 5
