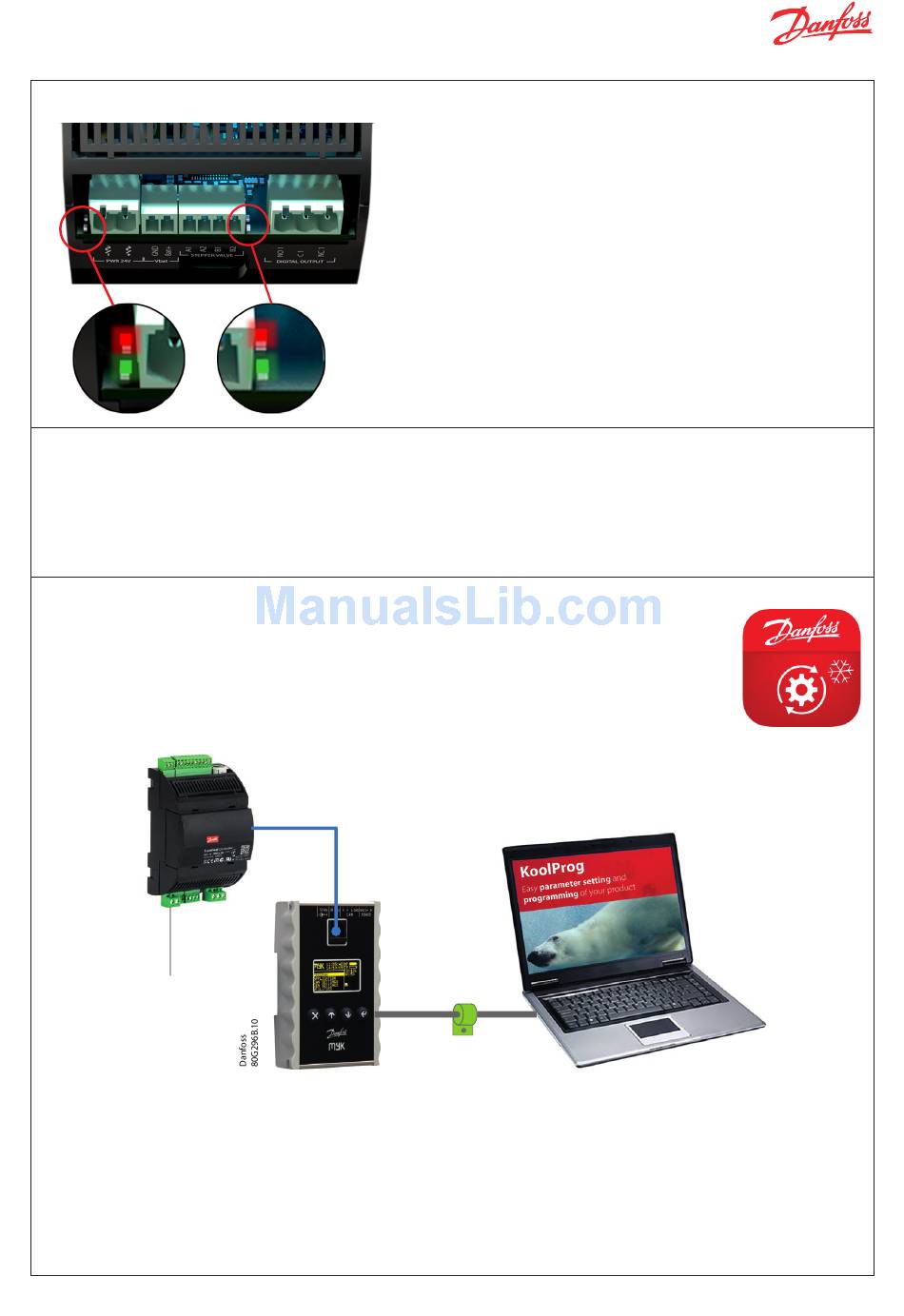

LED indication

(B)
(A)

USER INTERFACE

EKE 1B can be setup using one of the following user interfaces:
1. Danfoss KoolProg software
2. Danfoss MMIGRS2 external display
3. Communication bus: Modbus RS485 RTU
KoolProg
KoolProg is a software tool for quickly and easily configuring EKE controllers. It enables you
to make online changes to parameter configuration, copy settings to multiple controllers,
monitor the live status of input/outputs, and quickly analyze controller behavior and
program patterns with a graphical trending tool.
KoolProg Software is available for download free of charge at
KoolProg requires a Gateway (code 080G9711) to connect to the PC.
EKE
Power supply

Important note!

To guarantee a reliable USB connection to a host device (e.g. industrial PC), you must:
• Connect terminals R and H on MMIMYK CAN port using a termination wire.
• Place cable holder close to MMIMYK to keep USB connector firmly in place.
• Keep USB cable length < 1 m.
• Place MMIMYK and route USB cable far from noise sources (inverter, motors, contactors etc.)
© Danfoss | DCS (az) | 2018.06
CANRJ
Cable holder
Gateway
MMIMYK Gateway
(A)
Two status LEDs to indicate operational status
• Steady green = power ON
• Flashing green = data transmission / initialization
• Flashing red = alarm / error condition
(B)
Two status LEDs to indicate valve operation
• Flashing red = valve closing
• Steady red = valve fully closed
• Flashing green = valve opening
• Steady green = valve fully open
• Both green and red flashing = valve-related alarm
http://koolprog.danfoss.com.
USB
DKRCC.PI.RS0.C6.02 | 9
