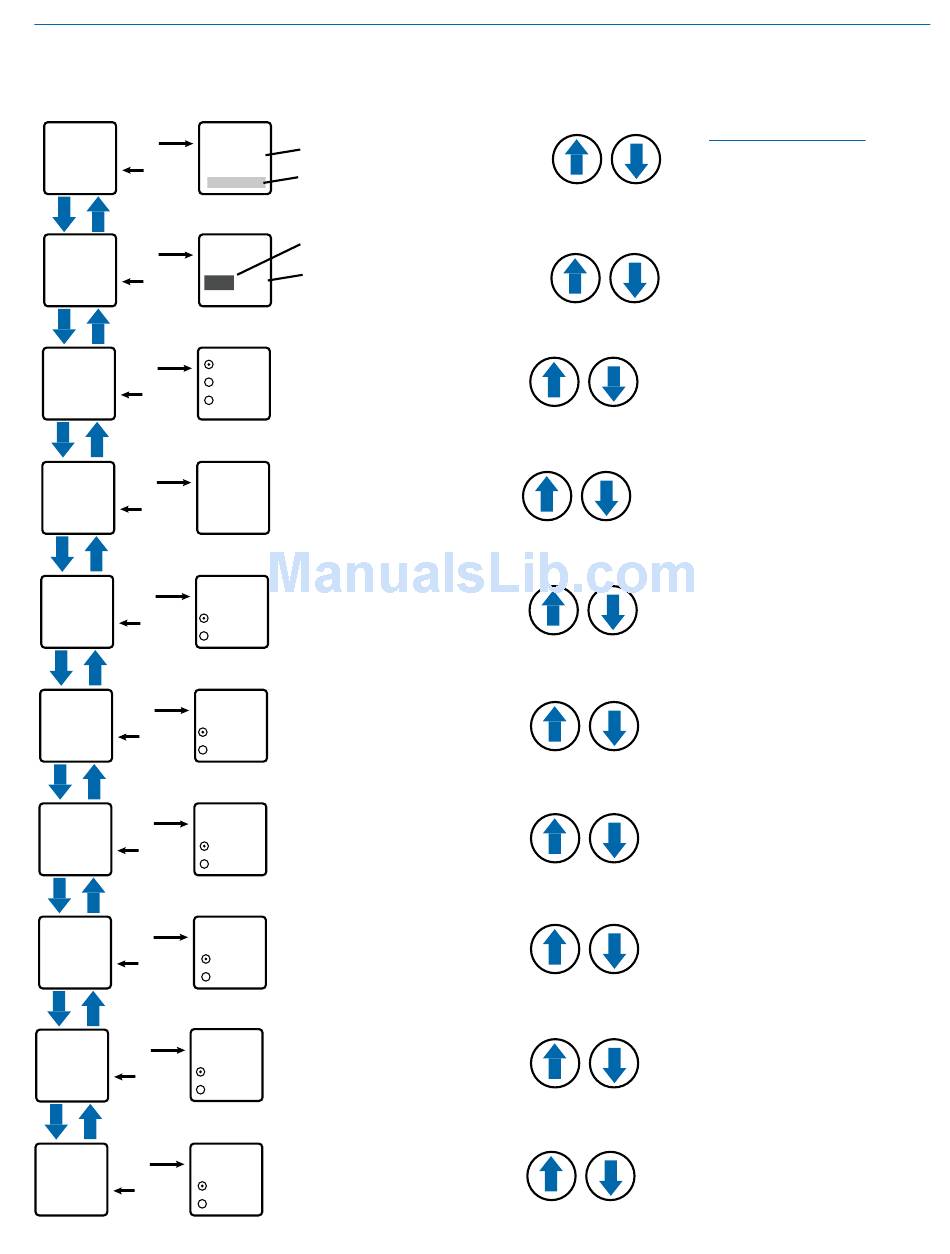

LCD Menu Map

Gain
SEL
Gain
BACK
Freq.
SEL
Freq.
BACK 470.675
SEL
ProgSw
BACK
Rolloff
SEL
Rolloff
BACK
Phase
SEL
Phase
Normal
BACK
Invert
BatType
SEL
BatType
Alk.
BACK
Lith.
Bat 5:41
SEL
Reset?
BatTime
Yes
BACK
No
Locked?
SEL
Locked?
Yes
BACK
No
Default
SEL
Settings
Default
No
BACK
Yes
WipeKey?
SEL
WipeKey
No
BACK
Yes
Rio Rancho, NM
Use arrow buttons
to select value
22
Level meter at bottom of screen
Press MENU/SEL to highlight MHz or kHz
Select value with arrow buttons
(none)
Mute Select option with arrow buttons
Power
Select value with arrow buttons
50 Hz
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Digital Hybrid Wireless Belt-Pack Transmitter
NOTE: The settings will
be stored when the BACK
button is pressed.
