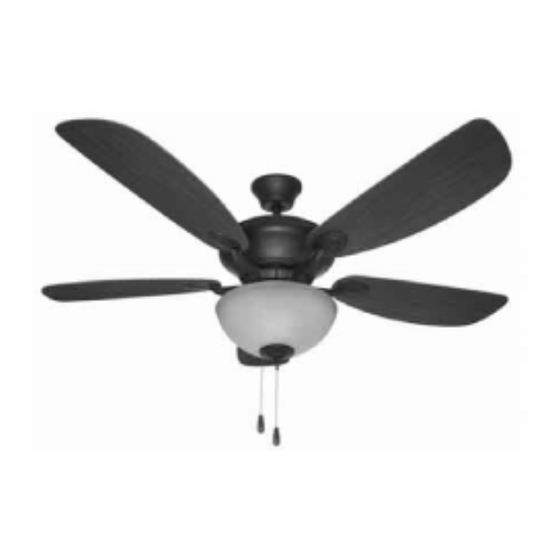

Litex Industries VN52 Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Installation Guide

For Model:

VN52

E124404

net weight of fan: 17.22 lb. (7.81 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the VN52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Litex Industries VN52

Page 1: Table Of Contents
SAVE THEM FOR FUTURE USE Installation Guide Table of Contents: For Model: Safety Tips. pg. 1 VN52 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly. pgs. 4 - 5 Wiring.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches the hanging location allows the blades a clearance 7 feet (76cm) of 7ft. (2.13m) from the floor and 30in. (76cm) from (2.13m) any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. If you wish to extend the hanging length of your set screw hole fan, you must remove the hanging ball from the set screw downrod provided to use with an extended stop pin downrod (sold separately). [If you wish to use the downrod provided, please proceed to instructions following the dotted line below.] hanging ball...
Page 6 5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now hanging bracket tab ready to hang your fan. Grab the fan firmly with hanging ball slot two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on hanging bracket.
Page 7: Wiring
7. Wiring. CAUTION: Be sure outlet box is properly grounded white supply wire ground and that a ground wire (GREEN or Bare) is present. (green or bare) black supply wire Make sure all electrical connections comply with Local Codes or Ordinances and the National from ceiling Electrical Code.
Page 8: Blade Assembly
9. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and break. motor housing Time Saver: Washers for blade screws can be set on blade attachment each blade screw prior to installing blades.
Page 9 10. Light Kit Assembly (Optional). (cont). switch housing Install two 6.5 watt medium base LED bulbs (included). Important: When replacing bulbs, please allow bulbs light kit fitter and glass shade to cool down before touching. Raise glass shade in order to guide pull chains through threaded rod bulb appropriate holes in glass shade.
Page 10: Testing Your Fan
11. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain on the switch housing. Start at the OFF position (no blade movement).
Page 11: Troubleshooting
Service at 1-800-527-1292 to arrange for return of fan. 2. Verify that reverse switch is set completely in Return fan, shipping prepaid, to Litex Industries, Ltd. We will either direction. repair or ship you a replacement fan, and we will pay the 3.
