i3 International Ax61 series Quick Start Manuals

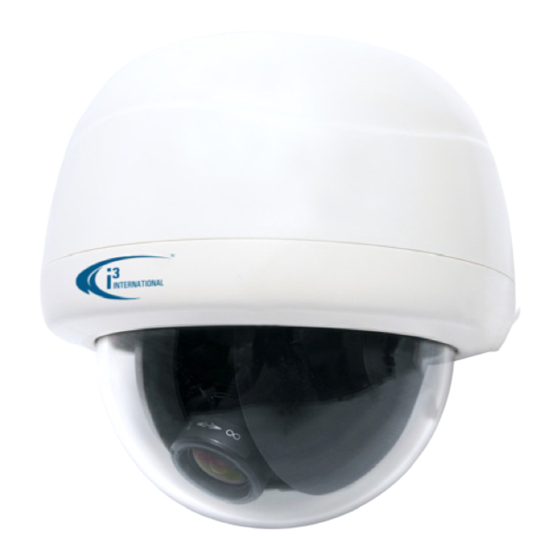

3MP Network Dome Camera
SAFETY
When installing your Ax61/Ax62 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -10° Celsius or 14° Fahrenheit and above 50° Celsius or 122°
.
Fahrenheit

POWER SUPPLY

Ensure the supplied voltage meets the power consumption requirements of this camera
before powering the camera on. Incorrect voltage may cause irreparable damage to the
video camera and will effectively void the camera warranty.
PoE power is supported in the indoor (Ax61/Ax62D-series) and outdoor (Ax62V) installa-
tions.
CLEANING
• For maximum optical clarity, the camera dome or lens must remain clean. Use a soft,
dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may dam-
age the surface finishes.
SERVICING
To avoid electrical shock and to preserve the product warranty, DO NOT disasemble the
camera. Refer servicing to qualified personnel only.

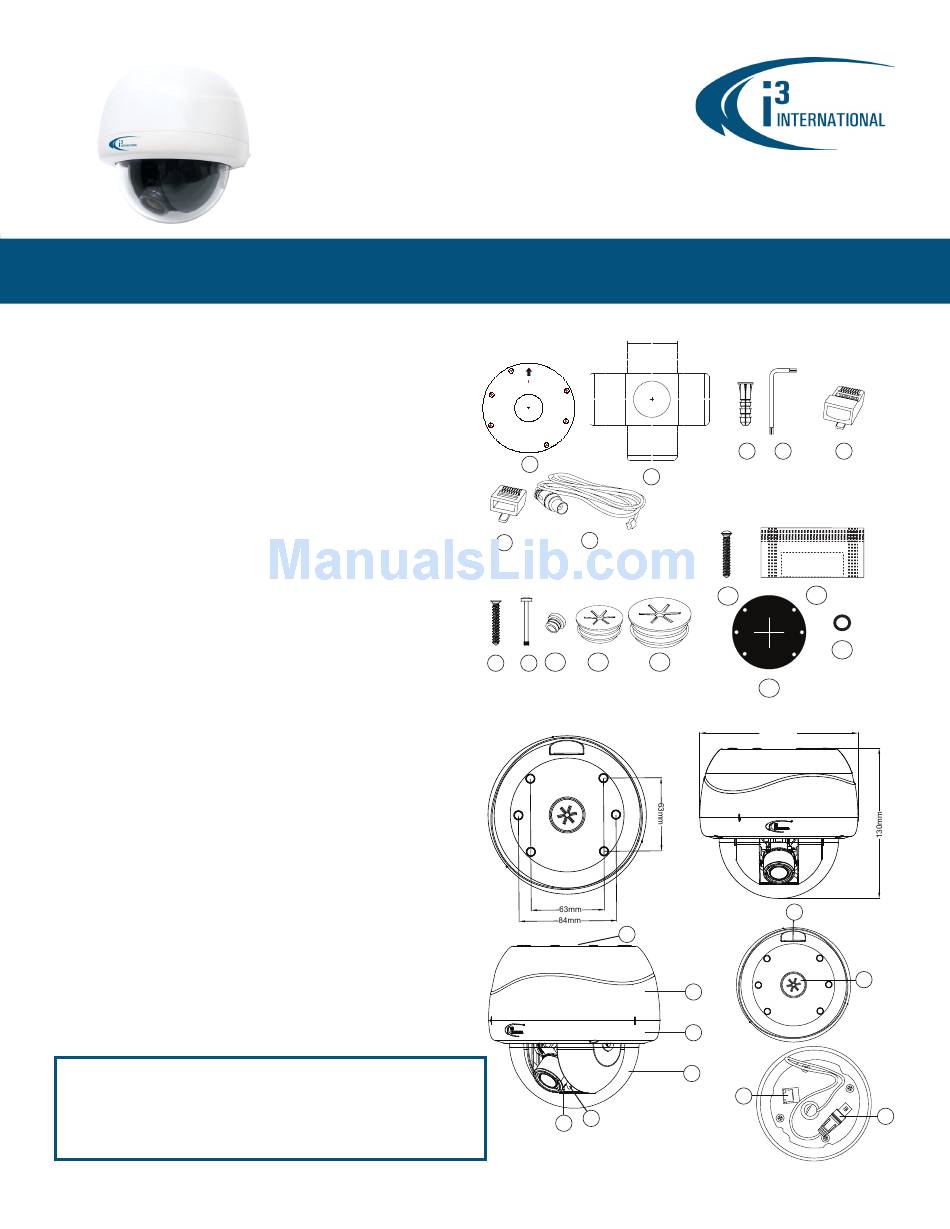

PACKAGE CONTENTS

In addition to this manual and a fully assembled camera, the dome camera packing box
includes:
(All Ax61/Ax62 series)
1. Guide Pattern sticker x1
2. Flush Mount template (the box
lining) x1
3. Plastic Anchor x4
4. Hex key x1
5. Standard RJ45 Connector x1
6. Short RJ45 Connector x1
7. 2nd video monitor output BNC
cable x1
Please Note: Scan the QR code at the bottom of this document or visit www.i3international.
com to view and download the full User Manual for this camera. Also available for download
is the AnnexxusConfigurationTool or ACT program used to locate and configure your
cameras with your SRX-Pro software. This program is already installed in SRX-Pro v3.3.3.69
and higher. Please contact our Technical Support team if you have any questions or concerns
regarding camera installation or you require software services or support. Technical support
can be reached by email at:
support@i3International.com or by phone toll free 1.877.877.7241.
i3-TRNG-CAMS-Ax61/Ax62-QuickGuide.indd
(Ax61D/Ax62D series only)
8. Flat Head Screw (Tapping Type) x4
9. Flat Head Screw (Machine Type 26L) x3
10. Rubber plug x8
11. NPT 1/2" Rubber x1
12. NPT 3/4" Rubber x1
(Ax62V series only)
13. Round Head Screw (Tapping Type) x4
14. Desiccant in a package x1
Note: Attach to the inside of the inner liner.
15. Rubber gasket x1
16. O-rings x4

Quick Start Guide

ACCESSORIES (not to scale)
All Ax61/Ax62 series
M
Lens Direction
Note: Mounting surface material
determines screw type. Refer to manual.
GUIDE PATTERN
1
6
2
7
6
Ax61D/Ax62D series only
8 9 10 11 12

CAMERA PARTS AND DEFINITIONS

1
1
6
5
Ax61/Ax62-series
3 4 5
Ax62V series only
14
13
16
15
137mm
a
a
b
b
2
3
4
c
c
Rev. 160907
d
d
