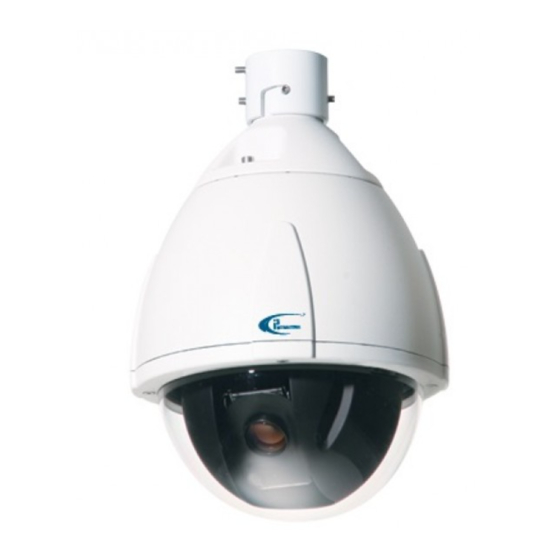

i3 International Ax63Z Series Quick Start Manual

High Speed Network Dome Camera
SAFETY
When installing your Ax63Z camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -40° Celsius or -40° Fahrenheit and above 50° Celsius or 122°
.
Fahrenheit
• For more details on installation and operation, please refer to the CD
provided.

POWER SUPPLY

Ensure the supplied voltage meets the power consumption requirements of this camera before
powering the camera on.
Ax63Z power consumption requirement: Indoor - PoE+ (IEEE 802.3at) or AC24V; Low temperature
outdoor - AC24V only. PoE+ power is supported in indoor installations only.
Maximum power consumption for outdoor installations with heater on: 36W
Incorrect voltage may cause irreparable damage to the video camera and will effectively void the
camera warranty.
CLEANING
• For maximum optical clarity, the camera dome or lens must remain clean. Use a soft,
dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may dam-
age the surface finishes.
SERVICING
To avoid electrical shock and to preserve the product warranty, DO NOT disasemble the camera.
Refer servicing to qualified personnel only.

PACKAGE CONTENTS

In addition to this manual and a fully assembled camera, the dome camera packing box includes:
1. Blind set screw
2. Hex driver (Allen key)
3. Torx driver (Torx key)
4. RJ45 Female/Female Coupler
5. CD (Documentation, Annexxus Finder) x1
ACCESSORIES (not to scale)
1
2 3
i3-TRNG-CAMS-Ax63Z-QuickGuide.indd
User Guide
IP Finder
4
5

Quick Start Guide

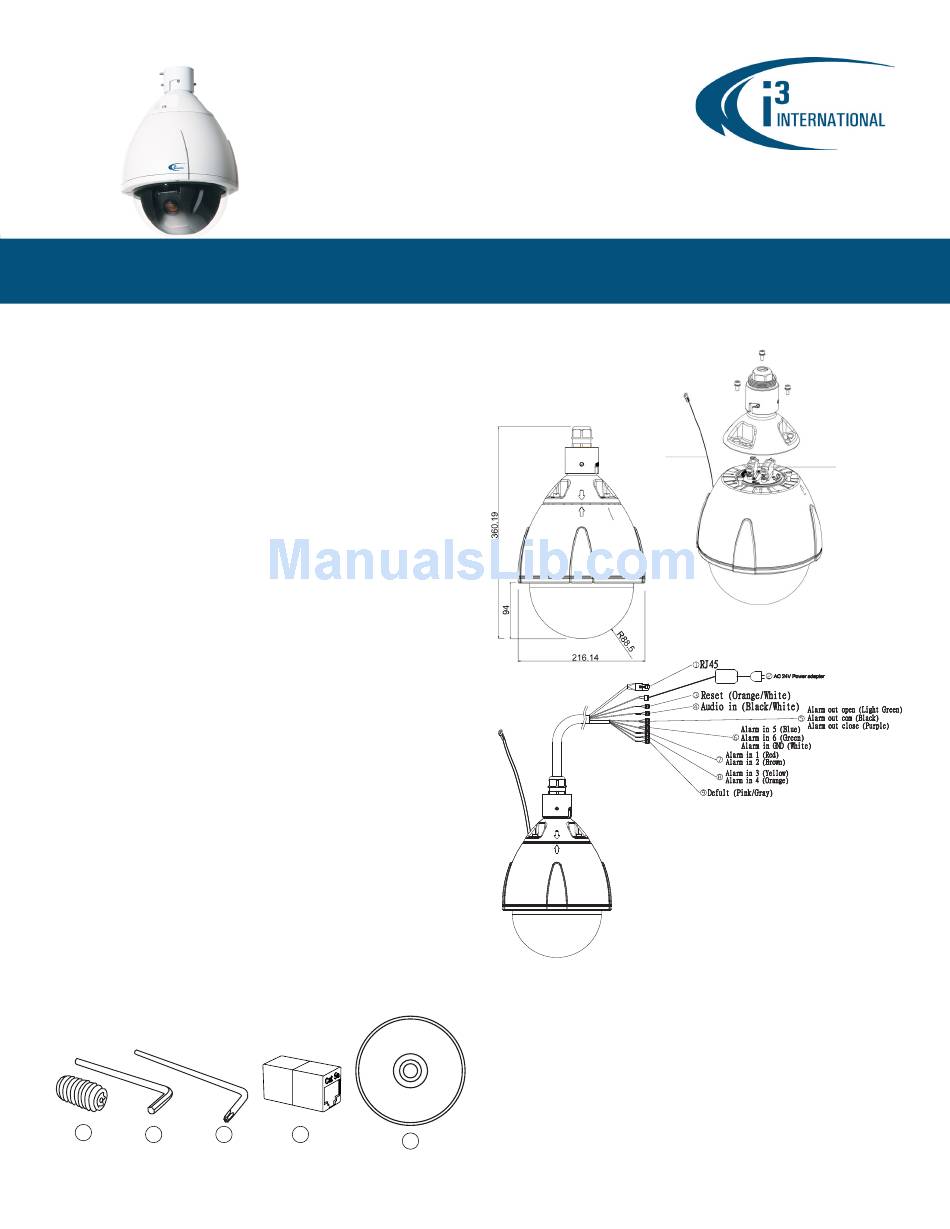

CAMERA PARTS AND DEFINITIONS

Safety
Wire
INSTALLATION
1. Remove the dome cover
2. Remove the EPE
3. Using a soft lint-free cloth, wipe the dome cover clean and remove fingerprints
4. Attach camera housing
5. Turn on the camera
6. Mount the camera (basic options presented below)
7. Connect the camera to a power source (AC24V for indoor or outdoor installations;
or PoE+ for indoor installations only)
8. Connect control inputs to terminals GND, Alarm in, Alarm out, Audio in, Default
and Reset
9. Connect camera to DVR
Ax63Z
Main signal
connector
Rev. 141125
