M U L T I M E D I A A U D I O A N D V I S U A L

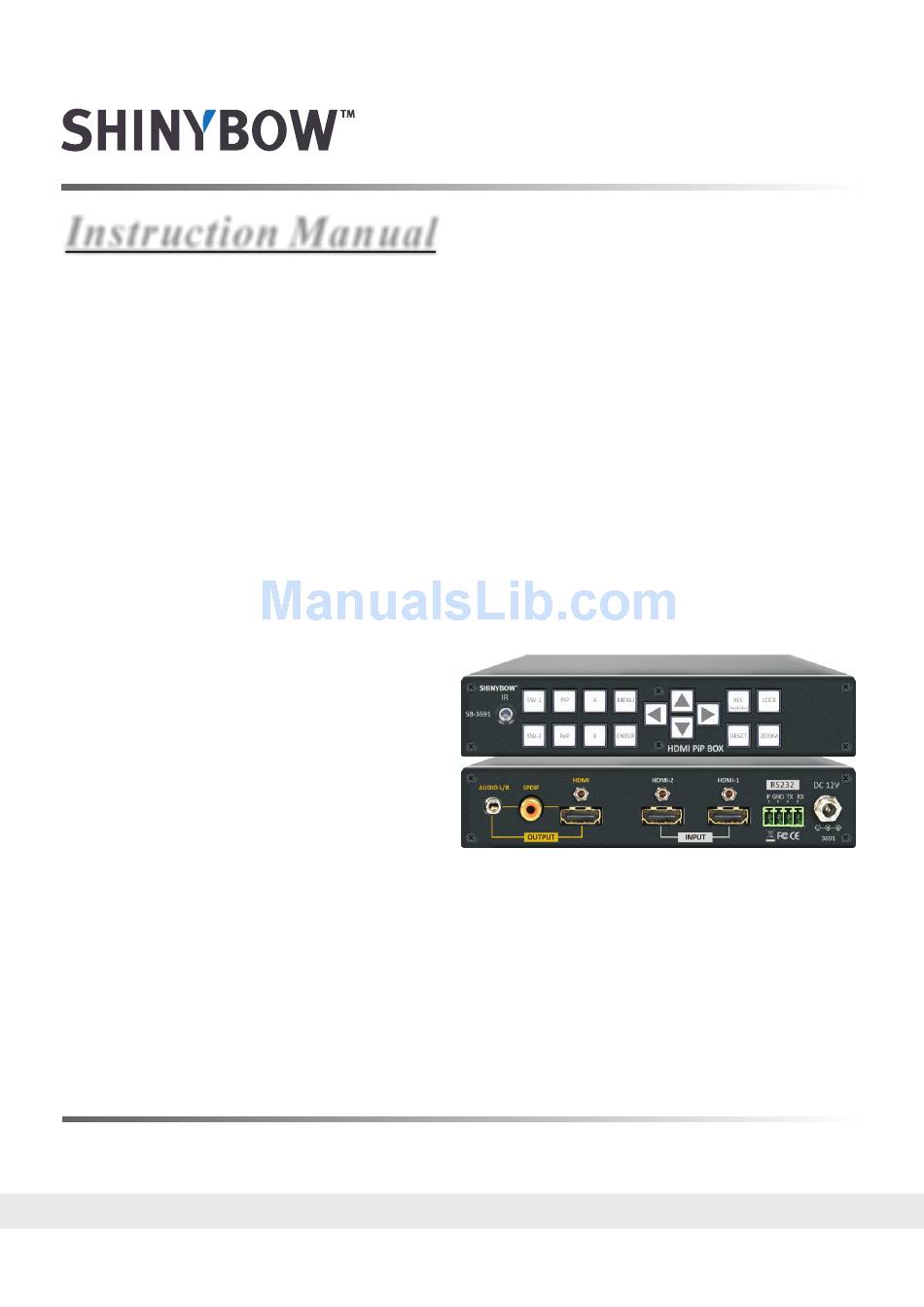

Instruction Manual
MODEL : SB-3691
2x1 HDMI™ PiP/PoP SELECTOR SWITCH SCALER
MultiVideo Digital Converter Series
Version No.: 3691-20150519-003
Thank you for purchasing the SB-3691 2x1 HDMI™ PiP/PoP Selector switch Scaler. You will find this unit easy to install
and highly reliable but it is essential that you read this manual throughly before attempting to use Selector switcher.
Part No.: ENCL003691000A0
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-3691
Summary of Contents for Shinybow USA SB-3691
-
Page 1: Instruction Manual
Version No.: 3691-20150519-003 Thank you for purchasing the SB-3691 2x1 HDMI™ PiP/PoP Selector switch Scaler. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use Selector switcher. -
Page 2: Safety Information
SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. - Page 3 T prevent electric shock do not use this (polarised) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. T prevent electric shock, match wide blade of plug to wide slot, fully insert. PAGE SB-3691 INSTRUCTION & OPERATION MANUAL...
-
Page 4: Introduction And Package Contents
Support video resolution up to 1080p with a signal bandwidth of 165MHz and data rate up to 4.95Gbps with no signal degradation. The SB-3691 is HDMI™ 1.3 and HDCP 1.2 compliant, with CE and FCC certifications. Zoom management can be selected between 5 modes. Input resolutions can be scaled up to 1080p or down to 480p. - Page 5 Provide IR remote control Frequency (38KHz). Various User Interface control: ‧ Front Panel push button ‧ IR wireless remote control ‧ RS 232 interface control driver for 2000/XP/WIN7-32/WIN7-64/WIN8 Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz. SB-3691 INSTRUCTION & OPERATION MANUAL PAGE...
-
Page 6: Menu Button
Press ENTER to confirm entries. MENU BUTTON - Press ENU button to open the On-Screen display interface. Press again to exit Menu. For guidance on the OSD optiona, please refer to the OSD instruction manual. PAGE 06 SB-3691 INSTRUCTION & OPERATION MANUAL... -
Page 7: Front Panel
- Press the A or B button,To setup the A,B position source. (the button will illuminate). PiP A,B Source position Table : Type-1 : Source #1/Source #2 Type-2 : Source #2/Source #1 The new configuration will be stored. PAGE 07 SB-3691 INSTRUCTION & OPERATION MANUAL... - Page 8 - Press the A or B circular button,To setup the A,B position source. (the button will illuminate). PoP A,B Source position Table : Type-1 : Source #1/Source #2 Type-2 : Source #2/Source #1 The new configuration will be stored. PAGE 08 SB-3691 INSTRUCTION & OPERATION MANUAL...
-
Page 9: Front Panel - Function Keys
- Press and hold LOCK button for three seconds lockout the front panel. - Press and hold LOCK button for three seconds to enable the front panel. ZOOM BUTTON Press the ZOOM button to zoom out the screen when enable the SCN-ADJ function. PAGE 09 SB-3691 INSTRUCTION & OPERATION MANUAL... -
Page 10: Rear Panel
Connect the digital audio output from source digital audio. AUDIO OUTPUT AUDIO Connect the stereo audio output port of your source audio Stereo Audio (AR/AL) Via 1x OD3.5mm device to the stereo audio (AR/AL) inputs. jack connector PAGE 10 SB-3691 INSTRUCTION & OPERATION MANUAL... -
Page 11: Specification
DC12V, Powr Input : AC 100~240 VAC 50/60Hz (universal Type Supply) _____________________________________________________________________________________________________________ Safety Approvals : CE, FCC, REACH. _____________________________________________________________________________________________________________ Product Weight : 0.677 Kgs / 1.5 lb _____________________________________________________________________________________________________________ “As product improvements are continuous, specifications are subject to change without notice” PAGE SB-3691 INSTRUCTION & OPERATION MANUAL... - Page 12 1280x800 @75 Hz ___________________________________________________________________________________________________________________ 1280x960 @60 Hz ___________________________________________________________________________________________________________________ 1280x1024 @60 Hz ___________________________________________________________________________________________________________________ 1280x1024 @75 Hz ___________________________________________________________________________________________________________________ 1366x768 @60 Hz ___________________________________________________________________________________________________________________ 1365x1024 @60 Hz ___________________________________________________________________________________________________________________ 1400x788 @60 Hz ___________________________________________________________________________________________________________________ 1400x1050 @60 Hz ___________________________________________________________________________________________________________________ 1400x1050 @75 Hz ___________________________________________________________________________________________________________________ PAGE SB-3691 INSTRUCTION & OPERATION MANUAL...
- Page 13 1792x1344 @60 Hz ___________________________________________________________________________________________________________________ 1792x1344 @75 Hz ___________________________________________________________________________________________________________________ 1856x1392 @60 Hz ___________________________________________________________________________________________________________________ 1856x1392 @75 Hz ___________________________________________________________________________________________________________________ 1152x864 @75 Hz ___________________________________________________________________________________________________________________ 1920x1080@60 Hz ___________________________________________________________________________________________________________________ 1920x1200 @75 Hz ___________________________________________________________________________________________________________________ 832x6248 @75Hz ___________________________________________________________________________________________________________________ 1152x870 @75 Hz ___________________________________________________________________________________________________________________ SB-3691 INSTRUCTION & OPERATION MANUAL PAGE...
- Page 14 HDMI OUTPUT Resolution ___________________________________________________________________________________________________________________ SVGA 480p 576p 720p 1080p 1080i (HDMI) Input Resolution 1680x1050 1680x1050 1680x1050 1680x1050 1680x1050 1680x1050 1920x1080 ___________________________________________________________________________________________________________________ ___________________________________________________________________________________________________________________ 480i ___________________________________________________________________________________________________________________ 480p ___________________________________________________________________________________________________________________ 576i ___________________________________________________________________________________________________________________ 576p ___________________________________________________________________________________________________________________ 720p ___________________________________________________________________________________________________________________ 1080i ___________________________________________________________________________________________________________________ 1080p ___________________________________________________________________________________________________________________ PAGE SB-3691 INSTRUCTION & OPERATION MANUAL...
-
Page 15: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Samples connection : 1. Using RS-232 command to control Selector Switch Scaler (SB-3691) for PiP-PoP function via PC. 2. Input supports : 2x HDMI™ source devices. 3. Output support : 1x HDMI™ to displays. NOTE : 1. -
Page 16: Remote Control
: open SCN-ADJ to RESET SCN-ADJ configuration. - Press and hold LOCK button for three seconds lockout LOCK: the front panel. - Press and hold LOCK button for three seconds to enable the front panel. PAGE 16 SB-3691 INSTRUCTION & OPERATION MANUAL... - Page 17 The IR Data Code: 5A69 0AF5 5A69 07F8 Example 2: Video -> move right -> move down to next layer -> enter to confirm selection The IR Data Code: 5A69 BB44 5A69 AA55 5A69 AB54 SB-3691 INSTRUCTION & OPERATION MANUAL PAGE 17...
-
Page 18: Rs-232 Serial Interface
The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the unit recognises a complete command it will perform the requested action - there is no delimiter character required. PAGE 18 SB-3691 INSTRUCTION & OPERATION MANUAL... -
Page 19: Limited Warranty
Site or its Content, products or services. PAGE 19 SB-3691 INSTRUCTION & OPERATION MANUAL... - Page 20 M U L T I M E D I A A U D I O A N D V I S U A L w w w . s h i n y b o w . c o m...
