M U L T I M E D I A A U D I O A N D V I S U A L

Instruction Manual

8x2 MultiVideo To VGA Switcher Series

Thank you for purchasing the SB-3866 MultiVideo To VGA Switcher. You will find this unit easy to install

and highly reliable but it is essential that you read this manual throughly before attempting to use 8x2

Multivideo To VGA Switcher.

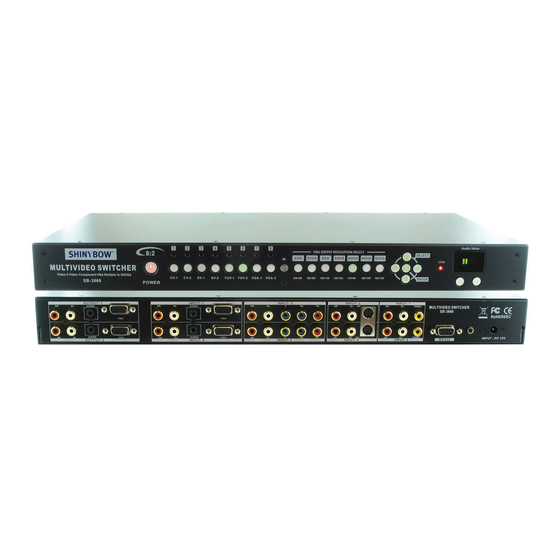

8x2 MultiVIDEO TO VGA SWITCHER

MODEL : SB-3866

Part No.: ENCL003866000A0

Table of Contents

Need help?

Do you have a question about the 8x2 MultiVideo To VGA Switcher Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Shinybow USA 8x2 MultiVideo To VGA Switcher Series

Page 1 MODEL : SB-3866 8x2 MultiVIDEO TO VGA SWITCHER 8x2 MultiVideo To VGA Switcher Series Thank you for purchasing the SB-3866 MultiVideo To VGA Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 8x2 Multivideo To VGA Switcher.
Page 2 SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation.
Page 3: Table Of Contents
INTRODUCTION AND TABLE OF CONTENTS INTRODUCTION The SB-3866 is a 8:1 Multi-Video Routing Switcher featuring 8 inputs and pre-emphasized 2 outputs. FRONT PANEL > 8 inputs as following : 2 x Composite Video+Audio 2 x S-Video+Audio, REAR PANEL 2 x Component Video+Audio, 2 x VGA+Audio, REMOTE CONTROL >...
Page 4: Front Panel
FRONT PANEL FRONT PANEL Audio Value VGA OUTPUT RESOLUTION SELECT SELECT SVGA SXGA WXGA WSXGA WUXGA Line MULTIVIDEO SWITCHER Video-S-Video-Component-VGA Multiple To WUXGA CV-1 CV-2 SV-1 SV-2 YUV-1 YUV-2 VGA-1 VGA-2 640-480 800-600 1024-768 1280-1024 1366-768 1680-1050 1920-1200 ENTER SB-3866MRM POWER POWER ON SWITCH SELECT VGA RESOLUTION BUTTONS...
Page 5: Rear Panel
REAR PANEL REAR PANEL OUTPUT- 1 INPUT- 7 INPUT- 5 INPUT- 3 INPUT- 1 MULTIVIDEO SWITCHER AUDIO AUDIO VIDEO SB-3866 RoHS/95/EC INPUT IR EXT. RS 232 DC 12V AUDIO AUDIO VIDEO OUTPUT- 2 INPUT- 8 INPUT- 6 INPUT- 4 INPUT- 2 2x VGA-AUDIO OUTPUTS INPUT- 3&4 S-VIDEO INPUTS Two VGA-Audio outputs are same picture...
Page 6: Remote Control
REMOTE CONTROL Before making any connections to the SB-3866. Observe the following: > Ensure the mains voltage supply matches the label on the supplied plug- > Connect all audio video sources and destination equipment Pack (+/- 10%) > power up all source and destination audio-visual sources >...
Page 7: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORTS IR EXTENDER CONTROL MULTIVIDEO SWITCHER SB-3866 RoHS/95/EC INPUT RS - 232 IR EXT. DC 12V ROOM SB-100 SB-100 EXTEND TO 300 M An IR Extender for Room POWER 1280x1024 1440x900 1680x1050 1920x1200 Menu Exit ENTER ENTER...
Page 8: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM RS-232 SERIAL INTERFACE RS-232 Definition ------ Not used Transmitter Receiver ------ Not used Ground ------ Not used ------ Not used ------ Not used ------ Not used RS232 The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system.
Page 9 RS-232 SERIAL COMMANDS MORE STUFF FOR SB-3866 Note: Turning the unit System Power Off over RS232 will extinguish the LED channel display leaving only the Power switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by RS232 it will continue to accept and act upon switching commands.
Page 10: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES 1. Support 8 inputs to 2 outputs Routing Switcher Multivideo signal as VGA/S-Video/Composite Video/Component Video/Audio 2. Inputs : 8x Group as 2x AV, 2x S-Video/Audio, 2x Component/Audio & 2x VGA/Audio Outputs: 2x (VGA+Stereo Audio) 3. Automatically input TV standard composite video/S-Video and HDTV Component Video 50/60Hz, 480p,720p and 1080i/p system detection 4.
Page 11 OSD PICTURE ADJUSTMENT Content PICTURE BRIGHTNESS BRIGHTNESS CONTRAST COLOR Brightness TINT SHARPNESS Adjusts back ground BRIGHTNESS black level of the screen image, low enough that a black area of the picture emits no light, but high enough that setting the control any higher would cause the area to become a dark gray.
Page 12 OSD PICTURE ADJUSTMENT Content PICTURE BRIGHTNESS TINT CONTRAST COLOR Tint TINT SHARPNESS Allows adjustment to increase or decrease Tint. PICTURE BRIGHTNESS SHARPNESS CONTRAST COLOR Sharpness TINT SHARPNESS Allows adjustment to increase or decrease the Sharpness of the image. This function does not change Resolution.
Page 13 OSD SETUP VGA OUTPUT RESOLUTIONS Content RESOLUTION 640x480 800x600 1024x768 Resolution Adjustment 1280x1024 1366x768 Changes the output resolution to one of the pre- set 1680x1050 values. Note that after you make this change, your 1920x1200 display device might need to re- clock to the signal. You can do this by changing your source input and then back again to the SB- 3866 input.
Page 14 OSD VIDEO SOURCES SELECTIONS Content INPUT SOURCE CVBS1 CVBS2 S- VIDEO1 Input Source S- VIDEO2 YPBPR1 Changes the Input Signal Source to one of pre- set YPBPR2 values. The front panel LED will also display the VGA1 Input Signal Source selected. VGA2 As product improvements continues, specifications and procedures are subject to change and without...
Page 15 OSD FUNCTION SETTING Content OSD SETTING LANGUAGE ENGLISH VISIBILTTY Language INFORMATION VER- 001 Follow you to cheese from English or Chinese. SLEEP RESET OSD SETTING LANGUAGE ENGLISH VISIBILTTY Visibility INFORMATION VER- 001 Changing this value sets the transparency ration SLEEP between the OSD and the background image.
Page 16 OSD FUNCTION SETTING Content OSD SETTING LANGUAGE ENGLISH VISIBILTTY Sleep INFORMATION VER- 001 The Sleep Timer will automatically shutdown the SLEEP SB- 3866 at a pre- determined amount of time. The preset values start at 10 minutes and goes to 120 RESET minutes, in increments of 10 minutes each OSD SETTING...
Page 17: Limited Warranty
LIMITED WARRANTY SHINYBOW WARRANTY SHINYBOW Technology warrants this product against defects in materials and workman ship for a period of 1 year from the date of purchase. Should this product, in SHINYBOW Technology's opinion, prove defective within this warranty period, SHINYBOW Technology, at its option, repair this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition.
Page 19 M U L T I M E D I A A U D I O A N D V I S U A L 1399 Wildfire Lane Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
