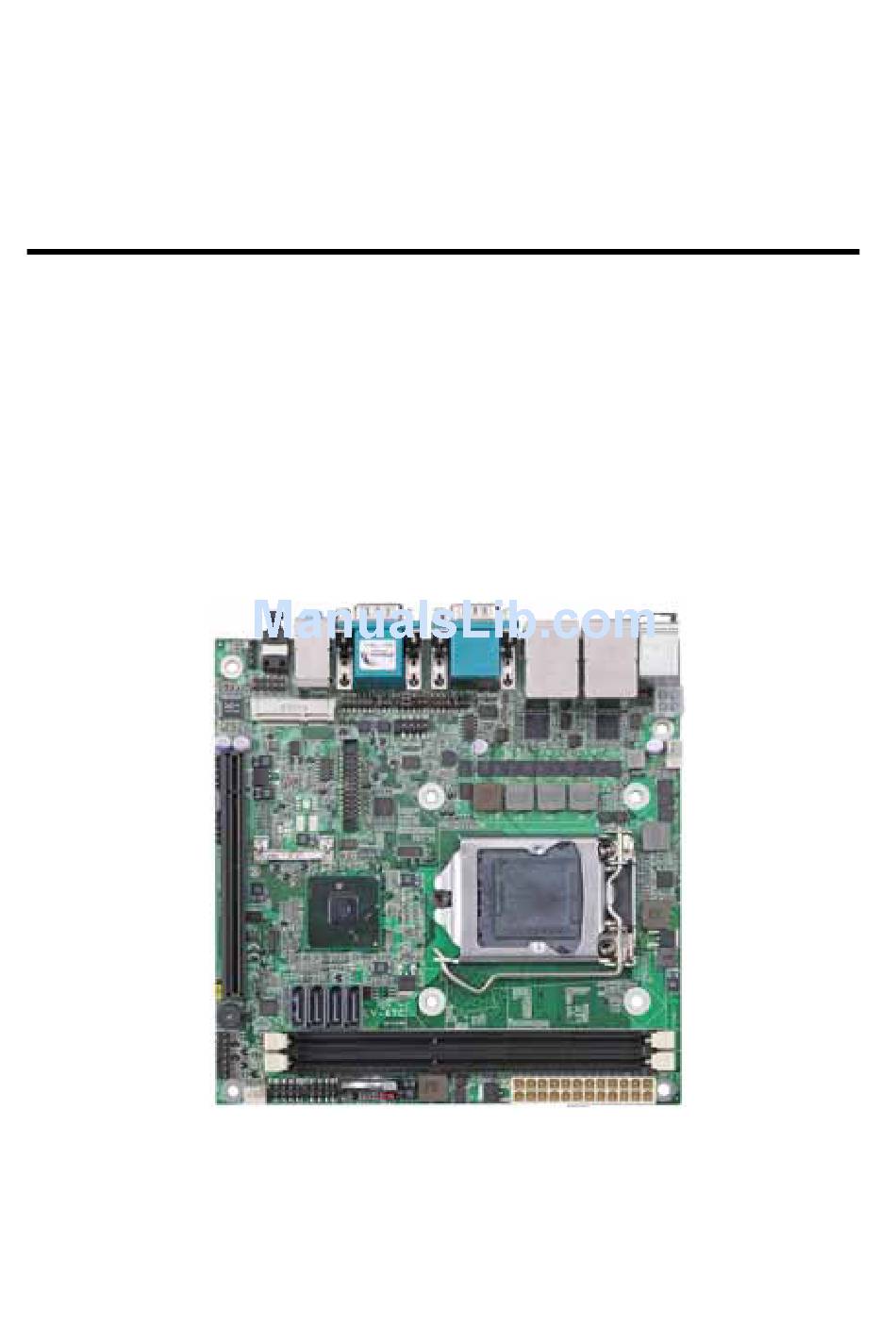

- Page 1 LV-67C Mini-ITX motherboard User’s Manual Edition: 1.0 2010/07/09...
- Page 2 LV-67C User’s Manual Copyright Copyright 20010 All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LV-67C User’s Manual Packing List Please check package component before you use our products. Hardware: LV-67C Mini-ITX motherboard x 1 Cable Kit: I/O Shield x 1 (OPLATE-67A) SATA Cable x 2 (OALSATA-L) DVI module with bracket x 1 COM Port Cable x 1 (ADPDVI &... - Page 4 LV-67C User’s Manual Index Chapter1 <Introduction> ............7 1.1 <Product Overview> .....................7 1.2 <Product Specification> ..................8 1.3 <Block Diagram> ....................10 1.4 <Mechanical Drawing > ..................11 Chapter 2 <Hardware Setup> ..........12 2.1 <Connector Location>..................12 2.2 <Jumper Reference> ..................13 2.3 <Connector Reference>..................14 ..............14...
- Page 5 LV-67C User’s Manual 3.2 <SATA RAID Configuration> ................35 3.3 <Audio Configuration> ..................37 3.4 <Display Properties Setting>................38 Chapter 4 <BIOS Setup> ............40 Appendix A <I/O Port Pin Assignment> ........42 A.1 <Serial ATA Port>....................42 A.2 <IrDA Port>......................42 A.3 <Serial Port>.......................43 A.4 <VGA Port> ......................44 A.5 <LAN Port>......................44...
- Page 6 LV-67A User’s Manual (This Page is Left for Blank...
-
Page 7: Chapter1
LV-67C User’s Manual Chapter1 <Introduction> 1.1 <Product Overview> LV-67C is the motherboard with last Intel desktop technology with Mini-ITX form factor. ® ® Based on Intel Q57, the board integrates I3/I5/I7/Pentium processor 1156-pin socket, ® DDR3 memory socket, Intel HD Graphic technology, Serial ATA II with RAID function for a powerful desktop system. -
Page 8: Product Specification
LV-67C User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard ® Intel® I3/I5/I7/Pentium processor With LGA1156 socket Package type: FCLGA 1156 Bus Speed:2.5GT/s DMI Memory 2 x 240-pin DDR3 1066/1333MHz SDRAM up to 8GB Unbufferred, none-ECC memory supported only Chipset Intel®... - Page 9 LV-67C User’s Manual Ethernet Interface Controller Two Intel 82574L Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T Auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Two External RJ45 connectors with LED on rear I/O panel Audio Interface Chipset Intel® integrated Q57with Realtek ALC888HD Audio...
-
Page 10: Block Diagram
LV-67C User’s Manual 1.3 <Block Diagram> 2 x 240-pin DDR3 1066/1333MHz up to 8GB 4 x Serial ATAII ports Intel 82574L 8 x USB2.0 ports 2 x GLAN Intel Q57 Mini-PCI card slot/PCI-E x16 HD Audio Mini-PCI slot 2 x Serial ports... -
Page 11: Mechanical Drawing
LV-67C User’s Manual 1.4 <Mechanical Drawing > Unit: inch... -
Page 12: Chapter 2
LV-67C User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_USB1/2 DDRIIIA/B SYSFAN JFRNT S_ATA1~4 CN_SMBUS CN_IR CPUFAN CN_12V CN_AUDIO CDIN CN_COM2 CN_DVI CN_DIO Audio COM3+COM4 SPDIF USB_RJ45_1/2 COM1 + CRT... -
Page 13: Jumper Reference
LV-67C User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting COM1 signal mode switch (For Pin-1 & Pin-9) COM2 signal mode switch (For Pin-1 & Pin-9) Power mode select CN_COM2 RS-232 RS422 RS485 Setting JCSEL1 JCSEL2 CN_IR IrDA Setting... -
Page 14: Connector Reference
LV-67C User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark LGA1156 CPU socket DDRIII1/2 240 –pin DDR3 SDRAM DIMM socket S_ATAII1/2/3/4/ 7-pin Serial ATA II connector 24-pin power supply connector CN_12V 4-pin +12V additional power supply connector CN_AUDIO... -
Page 15: Cpu And Memory Setup
LV-67C User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU installation> LV-67C has a LGA1156 CPU socket onboard; please check following steps to install the processor properly. Attention If LV-67C need RMA please Keep CPU socket cover on the CPU Socket. -
Page 16: Memory Installation
LV-67C User’s Manual 2.4.2 <Memory installation> LV-67C has two 240-pin DDR3 DIMM support up to 8GB of memory capacity. The memory frequency supports 1066/1333 MHz. Only Non-ECC memory is supported. DDRIII A/B 96-pin 144-pin Please check the pin number to match the socket side well... -
Page 17: Cmos Setup
LV-67C User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 18: Serial Ata Installation
LV-67C User’s Manual 2.6 <Serial ATA installation> LV-67C has Four Serial ATA II interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s. Please go to http://www.serialata.org/ for more about Serial ATA technology information. Based on Intel® PCH, it supports Intel® Matrix Storage Technology with combination of RAID 0,1,5 and 10. -
Page 19: Lan Installation
LV-67C User’s Manual 2.7 <LAN installation> The board integrates with two Intel 82574L Gigabit Ethernet controllers, as the PCI Express bus. The Intel 82574L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. LAN1 LAN2 LAN Installation... -
Page 20: Onboard Display Interface
LV-67C User’s Manual 2.8 <Onboard Display Interface> Based on Intel Q57 chipset with built-in graphics, the board provides one DB15 Connector on real external I/O port and the board also provides 26-pin DVI interface Notice: When you install any PCI Graphic card, the onboard graphics would be disabled automatically. -
Page 21: Dvi Display
LV-67C User’s Manual 2.8.2 <DVI Display > The board also comes with a DVI interface with Chrontel for digital video interface. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment TX1+ TX1- Ground... -
Page 22: Audio Installation
LV-67C User’s Manual 2.9 <Audio Installation> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 23 LV-67C User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R ACZ_DET Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD –...
-
Page 24: Gpio And Smbus Interface
LV-67C User’s Manual 2.10 <GPIO and SMBUS interface> The board provides a programmable 8-bit digital I/O interface, and a SMBUS (System management bus) interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground... -
Page 25: Usb Installation
LV-67C User’s Manual 2.11 <USB Installation> LV-67C integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Controller Intel Q57 PCH Transfer Rate Up to 480Mb/s Voltage The Intel® Q57 contains two Enhanced Host Controller Interface (EHCI) and five Universal Host Controller Interfaces (UHCI), it can determine whether your connected device is for USB1.1 or USB2.0, and change the transfer rate automatically. - Page 26 LV-67C User’s Manual Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for USB5/6 Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground CN_USB1/2...
-
Page 27: Power And Fan Installation
LV-67C User’s Manual 2.12 <Power and Fan Installation> The LV-67C provides a standard ATX power supply with 24-pin ATX connector and additional 12V connector, and the board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system and Northbridge chip. - Page 28 LV-67C User’s Manual Connector: ATX Type: 24-pin ATX power connector PIN assignment 3.3V 3.3V 3.3V -12V PS_ON PW_OK 5V_SB 3.3V Connector: CN_12V Type: 4-pin standard Pentium 4 additional +12V power connector Description Description Ground Ground +12V +12V Connector: CPUFAN Type: 4-pin fan wafer connector...
-
Page 29: Serial Port
LV-67C User’s Manual 2.13 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for CN_COM2. COM1 COM3 COM4 Connector: CN_COM2 Type: 9-pin header connector for COM2... - Page 30 LV-67C User’s Manual Setting RS-232 & RS-422 & RS-485 for CN_COM2C CN_COM2 JCSEL2 JCSEL1...
- Page 31 LV-67C User’s Manual Function JCSEL2 JCSEL1 RS-422 RS-485 RS-232 Default setting: JCSEL2: (1-2) JCSEL1: (1-3, 2-4, 7-9, 8-10) Jumper: JP1 (COM 1)/ JP2(COM2) Type: onboard 3 x 2-pin header JP1/JP2 Mode Standard COM Port Pin1 with 5V signal Pin9 with 12V signal...
-
Page 32: Switch And Indicator
LV-67C User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... - Page 33 LV-67C User’s Manual (This Page is Left for Blank)
-
Page 34: Chapter 3
LV-67C User’s Manual Chapter 3 <System Configuration> 3.1 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -
Page 35: Sata Raid Configuration
LV-67C User’s Manual 3.2 <SATA RAID Configuration> The board integrates Intel® Q57 PCH with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. - Page 36 LV-67C User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.
-
Page 37: Audio Configuration
LV-67C User’s Manual 3.3 <Audio Configuration> The board integrates Intel® Q57 PCH with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager. -
Page 38: Display Properties Setting
LV-67C User’s Manual 3.4 <Display Properties Setting> Based on Intel Q57 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 39 LV-67C User’s Manual This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen...
-
Page 40: Chapter 4
LV-67C User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 41 LV-67C User’s Manual (This Page is Left for Blank)
-
Page 42: Appendix A
LV-67C User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: S_ATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground... -
Page 43: A.3
LV-67C User’s Manual A.3 <Serial Port> Connector: COM1/3/4 Type: 9-pin D-sub male connector on bracket Description Description Ground Connector: COM2 Type: 9-pin header connector for COM4 Description Description Ground... -
Page 44: A.4
LV-67C User’s Manual A.4 <VGA Port> Connector: CRT1 Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground DDC_DA BLUE Ground HSYNC VSYNC Ground Ground DDC_CLK A.5 <LAN Port> Connector: RJ451/2 Type: RJ45 connector with LED on bracket... -
Page 45: Appedix B
LV-67C User’s Manual Appedix B <System Resources> B.1 <I/O Port Address Map>... - Page 46 LV-67C User’s Manual...
-
Page 47: B.2
LV-67C User’s Manual B.2 <Memory Address Map>... -
Page 48: B.3
LV-67C User’s Manual B.3 <System IRQ Resources>... -
Page 49: Appendix C
LV-67C User’s Manual Appendix C <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration -o 2E 87 -o 2E 07 -o 2F 09 ;enale GPIO function... -
Page 50: Appendix D
LV-67C User’s Manual Appendix D <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 51: Contact Information
19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc. Contact Information...
