Touch-Screen User Interface

The touch screen is the primary source
of information when operating the
MixPre-3. All settings are configured and
menus easily navigated via the touch
screen. All signal level meters may be
viewed on screen.
This chapter describes meter views,
including the HOME screen which is
displayed when no other screens are
active, the main MENU screens, and
navigation icons.
Other icons and screens, such as the
Channel Settings screen, are described
where applicable throughout the guide.

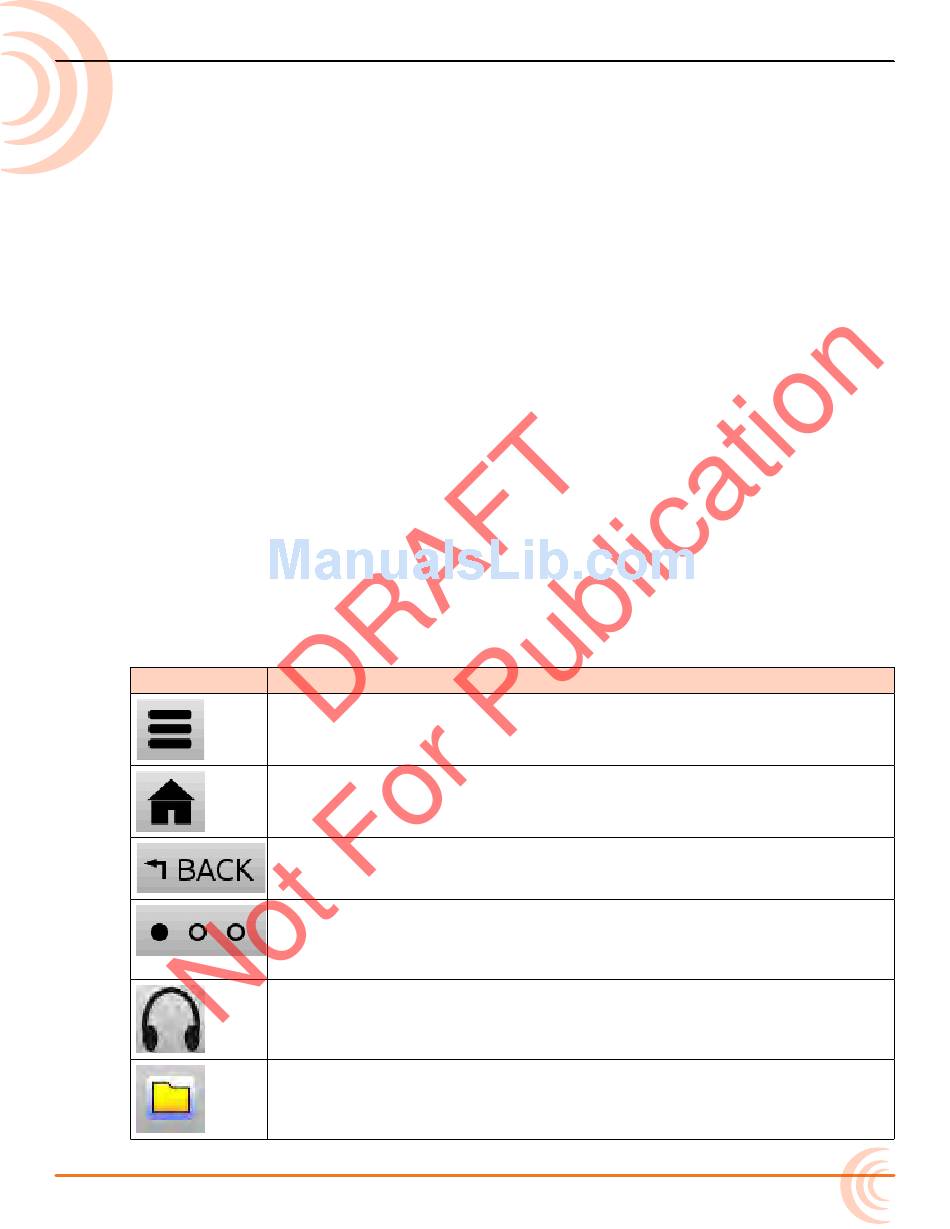

Icons
The MixPre-3 uses a variety of icons to ease navigation. This quick reference
table shows the icons and what they mean.
i
con
D
escription
Menu icon. Tap this icon to access the main MENU screen.
Home icon. Tap this icon to navigate to the HOME screen (meter view).
Back icon. Tap this icon to return to previous screen.
Pages icon. Tap this icon to toggle through pages. For instance, menus
with multiple settings may require a multi-page display. The solid black dot
represents the page shown. One or two other hollow dots may appear to
represent the additional pages that are available.
Headphone icon. Tap this icon to settings associated with headphones.
Folder icon. Tap this icon to view the Take List of recorded tracks.
Topics in this section include:
Icons
Meter Views
Using Meter Views
Returning HOME to main Meter View
Metering Ballistics and Peak Hold
Accessing the MENU Screen
Customizing the LCD and LEDs
