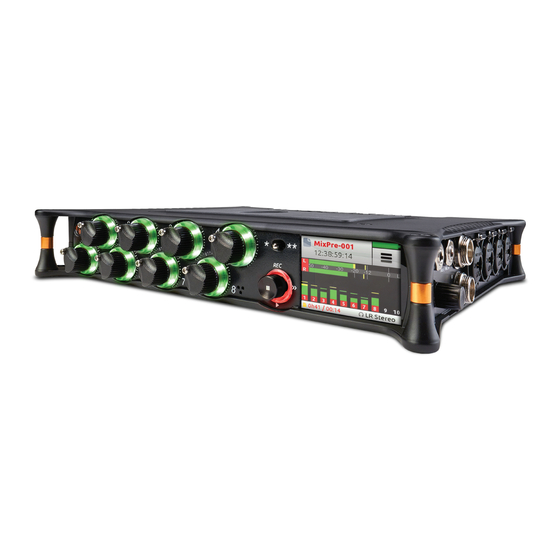

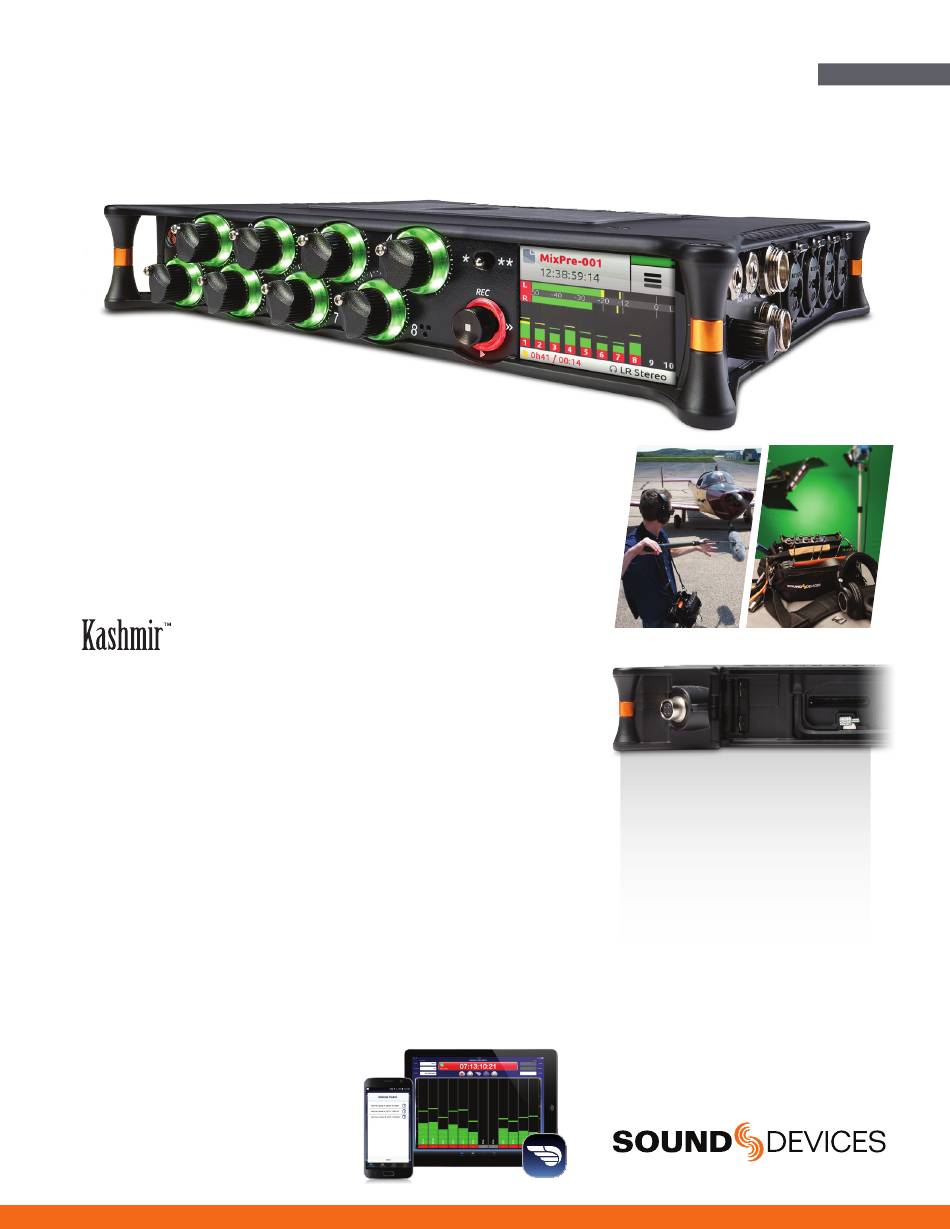

MixPre-10T
Audio Recorder with USB Audio Interface and Built-In Timecode
The Smallest 10-Input/12-Track Recorder
The MixPre-10T is the newest member of the groundbreaking MixPre Series of audio
recorders. This lightweight, 10-input, 12-track recorder offers world-class sound quality,
mixing, flexible powering, and a built-in, highly accurate timecode generator/reader –
perfect for production sound mixers, field recordists, and sound designers. It also may be
used as a multichannel USB audio interface for computer-based applications.
Mic Preamps
Exceptional Audio Quality
The MixPre 10T features eight Kashmir
ultra-low-noise, discrete, Class-A mic preamps were custom-engineered by Sound
Devices. The Kashmir mic preamps feature a -130 dBV noise floor, analog limiters, and
new 32-bit A-to-D converters, and ensure the highest quality audio recordings that far
surpass those of other recorders using simple off-the-shelf IC-based mic preamps.
Synchronization in Any Environment
Accurate Timecode Generator/Reader Plus Wordclock
As its name suggests, the MixPre-10T features a built-in, high accuracy timecode
generator and reader. Even when turned off or all power is removed, the MixPre-10T
continues to hold accurate timecode for hours, more than long enough even for the
most extended lunch break (or break in production)! With its dual BNC, Aux, and HDMI
timecode connections, all common frame rates and timecode modes are supported as
well as the ability to lock to or output wordclock.
Wireless Control
The MixPre features integrated Bluetooth
Smart
for easy wireless connection, control
®
and metering via the free Sound Devices
Wingman app on iOS and Android devices.
microphone preamps. These high-performance,
™
Flexible Powering
For the ultimate in portability and
convenience, the MixPre-10T features a
locking 4-pin Hirose connector (10-18V)
for either external battery powering or
AC-powering (with optional AC adapter).
The MixPre-10T comes with a
detachable battery sled for eight AA
cells. An optional sled for up to two,
hot-swappable Li-Ion batteries is
also available. Based on its multiple
powering options, the MixPre-10T is
capable of automatically switching from
one power source to another without
stoppage in operation.
®
www.sounddevices.com
MixPre Series
Advertisement
Table of Contents
Related Manuals for Sound Devices Kashmir MixPre Series
Summary of Contents for Sound Devices Kashmir MixPre Series
- Page 1 Wireless Control stoppage in operation. The MixPre features integrated Bluetooth Smart for easy wireless connection, control ® and metering via the free Sound Devices Wingman app on iOS and Android devices. ® www.sounddevices.com...
- Page 2 L-SERIES Li-Ion BATTERY SLED (batteries not included) ® Post Office Box 576 E7556 State Rd. 23 and 33 Reedsburg, Wisconsin 53959 USA +1 608.524.0625 main Features, nomenclature, and specifications subject to www.sounddevices.com DISCOVER MORE AT change.© 2017, Sound Devices, LLC Rev. A (09/17)
- Page 3 ® MixPre-10T Multichannel Recorder | Mixer | USB Audio Interface User Guide...
- Page 4 Trademarks The “wave” logo is a registered trademark and Kashmir is a trademark of Sound Devices, LLC. iPad, iPhone, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries. Windows is a registered trademark of Microsoft Corporation in the U.S.
-
