User Guide

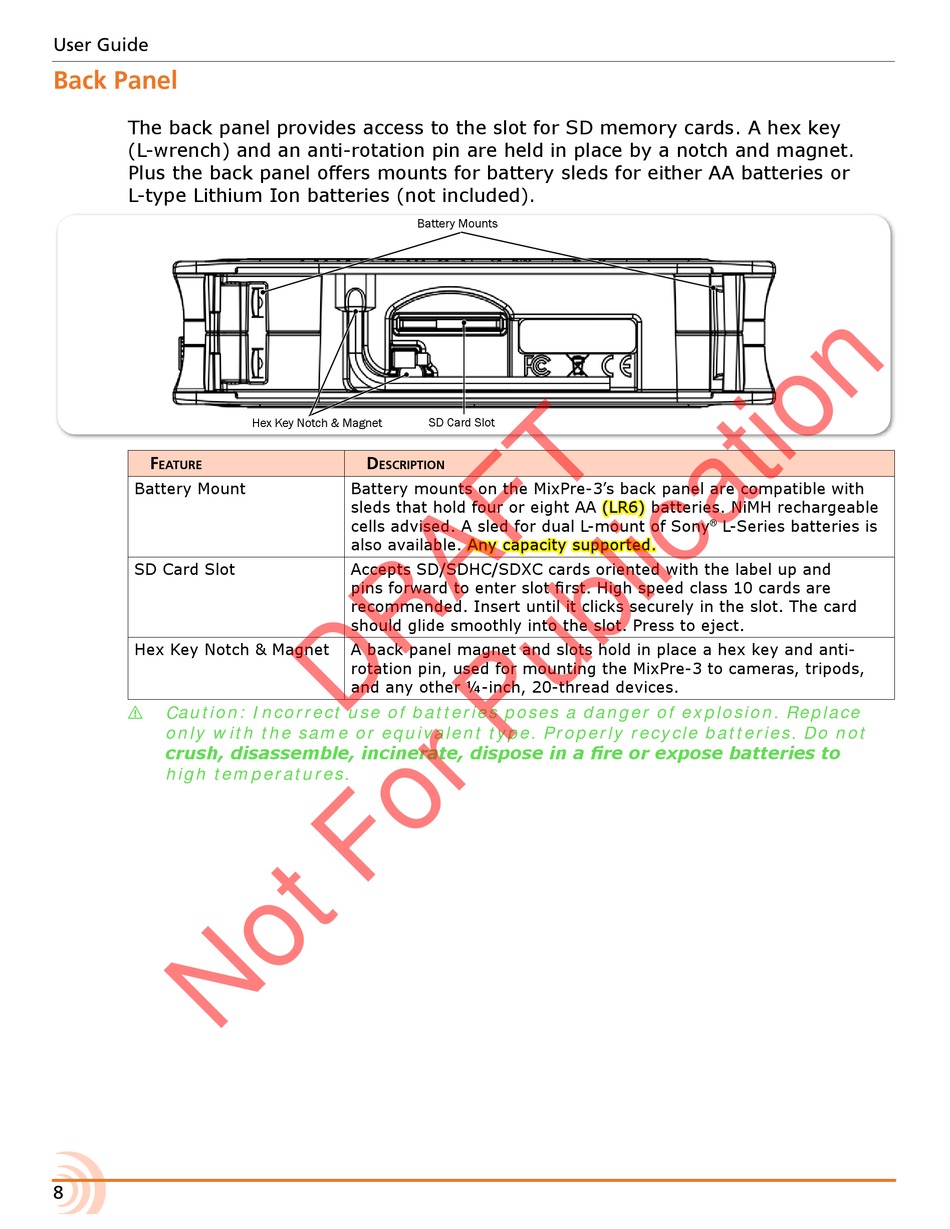

Back Panel

The back panel provides access to the slot for SD memory cards. A hex key
(L-wrench) and an anti-rotation pin are held in place by a notch and magnet.
Plus the back panel offers mounts for battery sleds for either AA batteries or
L-type Lithium Ion batteries (not included).
F
eature
Battery Mount
SD Card Slot
Hex Key Notch & Magnet
⚠ Caution: Incorrect use of batteries poses a danger of explosion. Replace
only with the same or equivalent type. Properly recycle batteries. Do not
crush, disassemble, incinerate, dispose in a fire or expose batteries to
high temperatures.
8
Battery Mounts
Hex Key Notch & Magnet SD Card Slot
D
escription
Battery mounts on the MixPre-3's back panel are compatible with
sleds that hold four or eight AA (LR6) batteries. NiMH rechargeable
cells advised. A sled for dual L-mount of Sony
also available. Any capacity supported.
Accepts SD/SDHC/SDXC cards oriented with the label up and
pins forward to enter slot first. High speed class 10 cards are
recommended. Insert until it clicks securely in the slot. The card
should glide smoothly into the slot. Press to eject.
A back panel magnet and slots hold in place a hex key and anti-
rotation pin, used for mounting the MixPre-3 to cameras, tripods,
and any other ¼-inch, 20-thread devices.
L-Series batteries is
®
