User Guide
F
eature
LCD
Faders (1-3)
Input Activity Ring
LEDs
Power Light
Transport Controls

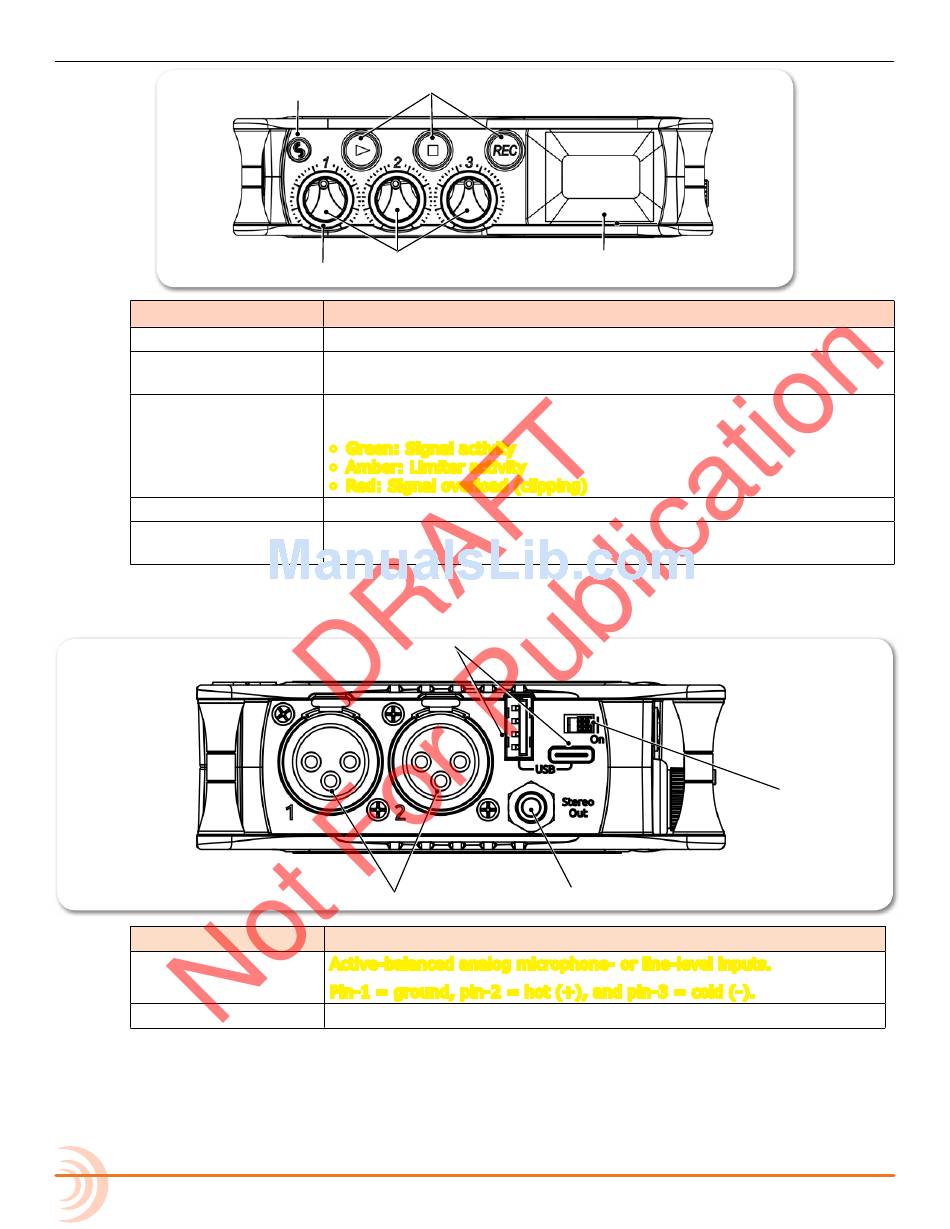

Left Side Panel

F
eature
XLR Inputs (1-2)
Power Switch
6
Transport Controls
Power Light
Faders
Input Activity Ring LED
D
escription
A back-lit touch screen that displays metered views and menus.
Adjusts fader level for channels 1-3. Push in each one to access the
Channel Settings screen.
Wrapped around each of the faders are LED rings that illuminate to
indicate input signal activity and status.
• Green: Signal activity
• Amber: Limiter activity
• Red: Signal overload (clipping)
Light, showing Sound Devices logo, illuminates when power is on.
Illuminated Play, Stop, and REC buttons for controlling playback and
recording.
USB Connections
XLR Inputs
D
escription
Active-balanced analog microphone- or line-level inputs.
Pin-1 = ground, pin-2 = hot (+), and pin-3 = cold (-).
Powers MixPre-3 on and off.
LCD
Stereo Output
Power Switch
