Sound Devices MixPre-3 User Manual page 73

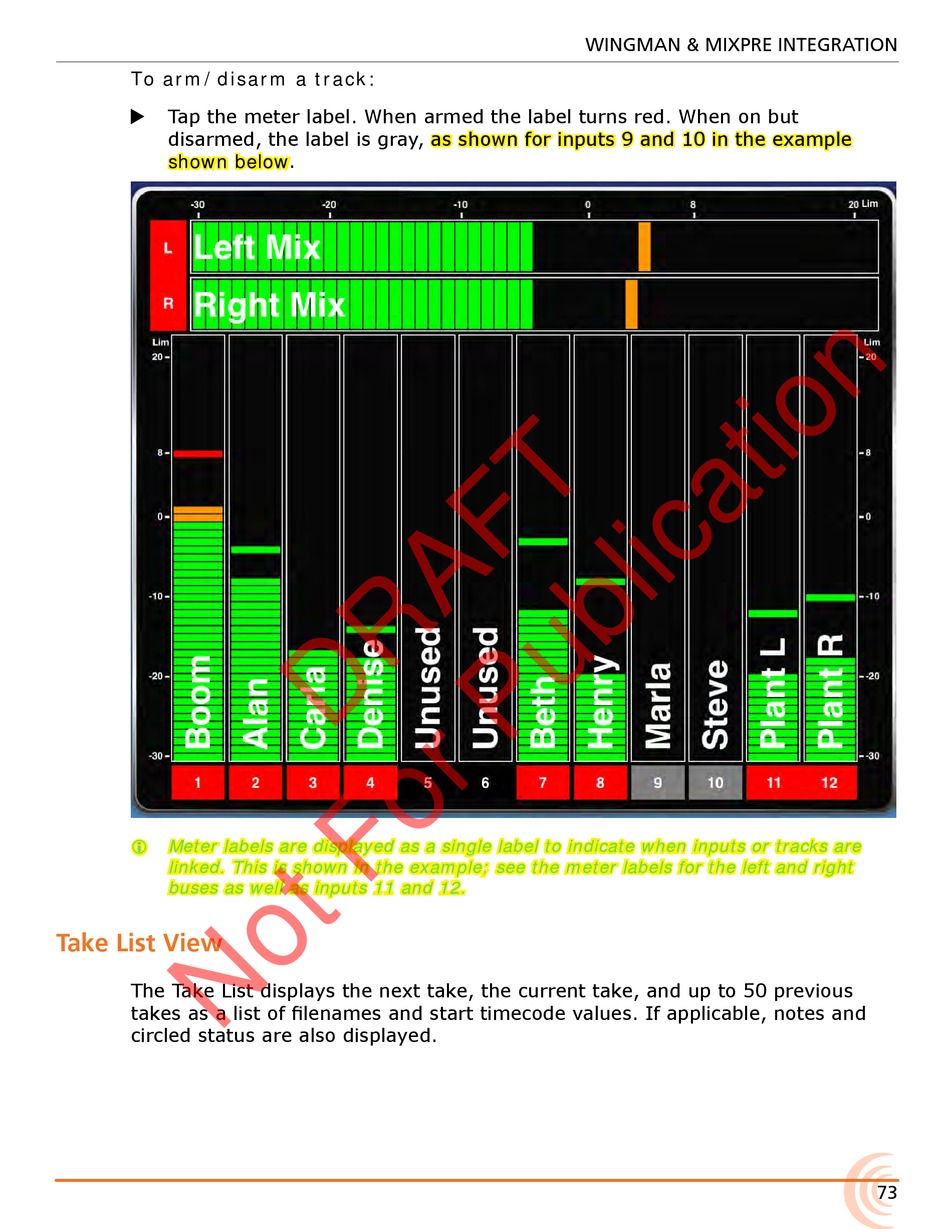

To arm/disarm a track:
Tap the meter label. When armed the label turns red. When on but
X
disarmed, the label is gray, as shown for inputs 9 and 10 in the example
shown below.
Meter labels are displayed as a single label to indicate when inputs or tracks are
i
linked. This is shown in the example; see the meter labels for the left and right
buses as well as inputs 11 and 12.
Take List View
The Take List displays the next take, the current take, and up to 50 previous
takes as a list of filenames and start timecode values. If applicable, notes and
circled status are also displayed.
WINGMAN & MIXPRE INTEGRATION
73
