Projecta IC2500L User Manual page 8

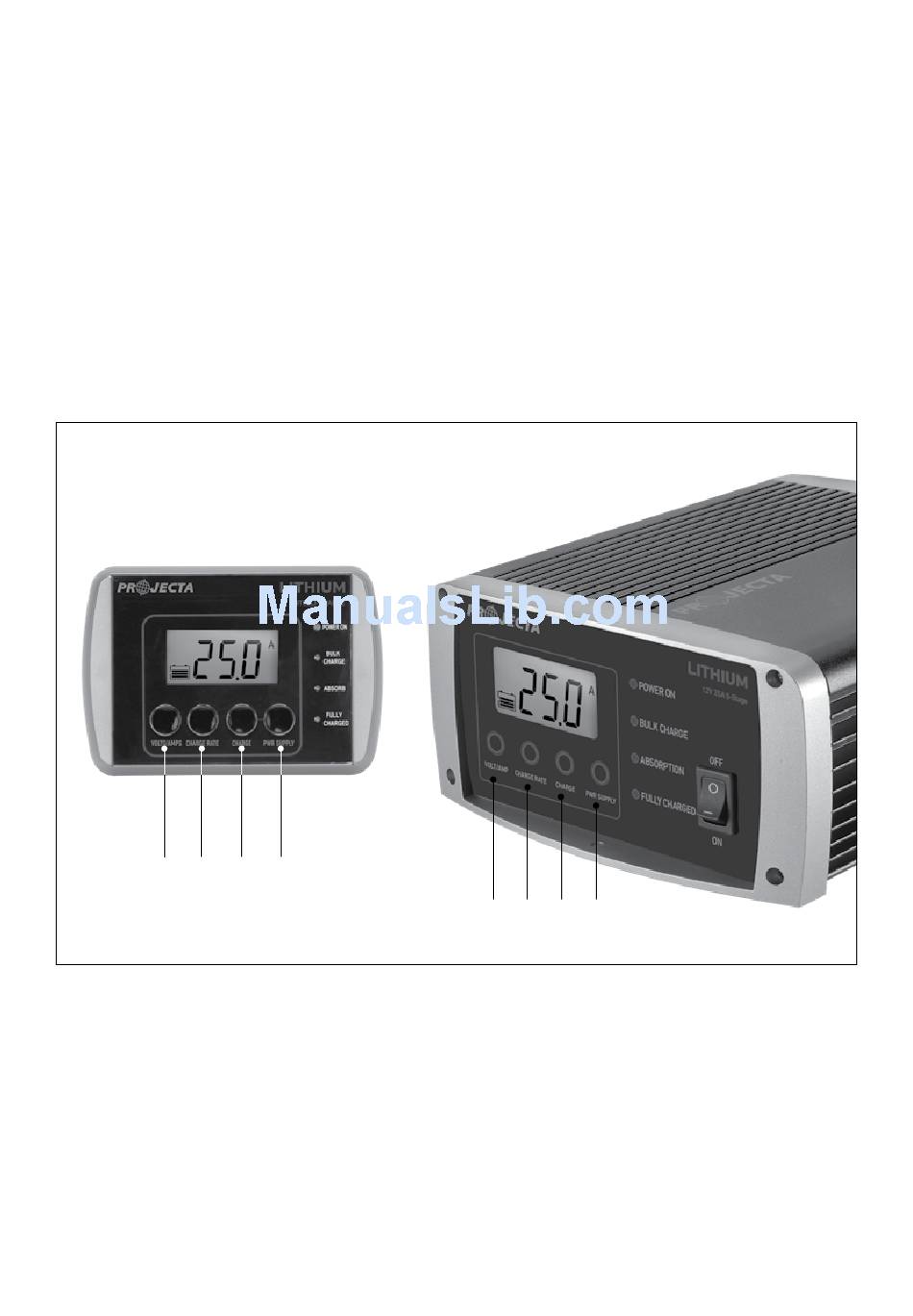

CONTROLS
The battery charger and remote control interfaces are synchronised and identical
in operation allowing you to monitor the battery charger's performance and
customise the charge settings to best suit your battery. The function of each button
is explained below:
1. VOLT/AMP: Change LCD screen display from battery voltage to input current
2. CHARGE RATE: Set the charge rate to suit the size of the battery
3. CHARGE: Sets the charger to charge in Lithium mode
4. PWR SUPPLY: Sets the charge voltage to a constant 13.8V
2
1
8
3 4
4
1 2 3
