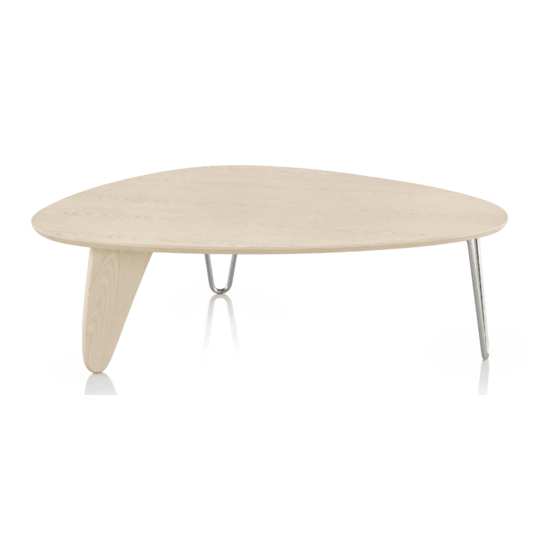

Rudder Coffee Table (IN52)
®
How to assemble
your table.
For more information about our products and services or to see a list of dealers, please visit us at
hermanmiller.com or call (800) 851 1196.
© 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1BBF9Z - A.
® Y, Noguchi are among the registered trademarks of Herman Miller, Inc.
Tools Required
Power Driver
#2 Philips drive bit
Step 1
1.1
By hand, place the Top upside down on a protective surface.
1.2
Position leg to the top in a way the screw holes on the leg are aligned to the screw holes
on the top.
1.3
Using power driver on low torque setting, tighten screws.
1.4
Repeat for other leg.
HermanMiller Noguchi
Rudder Table
®

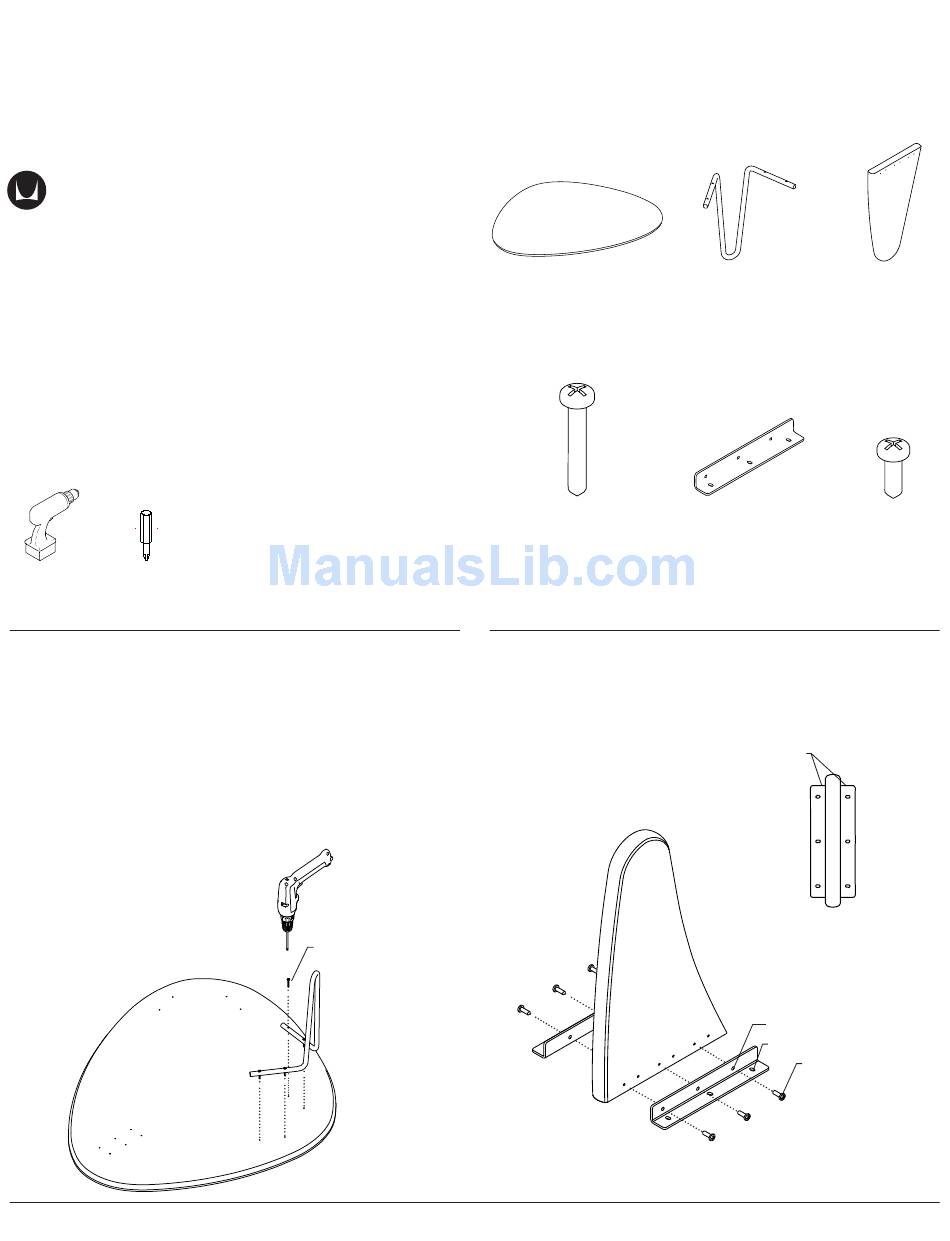

Parts Included
Step 2
2.1
Assemble Leg Brackets to Wood Leg.
(4) Long Screw
1
(1) Top
(2) Wire Leg (Qty: 2)
(4) Long Screw (Qty: 8)
(5) Leg Brackets (Qty: 2)
(3) Wood Leg (Qty: 1)
(6) Short Screw (Qty: 12)
Align
Hole
Slot
(6) Short Screw
Assembly Instructions
