Layout Studio
Recycling Instruction
Parts Included:
A
Dual Sided Cubby
C
Parallel Rail Mounted
Stanchion
H
G
5/16-18 x 3" Hex
Socket Head
Cap Screw
N
Perpendicular Rail
Mounted Stanchion
T
M6 x 35 Hex
U
Socket Head
Cap Screw (2)
Z
© 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHB0T rev B.
Y, L, Canvas are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifi cations are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifi cations at any time, without notice, and also to discontinue products.
Storage Installation and Disassembly for
™
B
Single Sided Cubby
D
Lower Plate
Flat Washer
K
J
M6 Hex Nut (4)
T - Nut
Hardware Pack
R
P
Lower Plate
K
Clamp Assembly (2)
Hardware Pack
F
E
Upper Plate
(L2SS.CE)
L
M6 x 20 Socket
Flat Head Machine
Screw (2)
S
Spin Stanchion
Upper Plate
L
M6 x 20 Socket
Flat Head Machine
M6 Hex Nut (4)
Screw (2)
Upper Plate (2)
(L2SS.CS)
M
10-13 x 3/4 Flat
Head Wood
Screw (4)
V
10-12x 5?8 Pan
Head Tapping
Screw (4)
1
Advertisement
Related Manuals for HermanMiller Layout Studio
Summary of Contents for HermanMiller Layout Studio

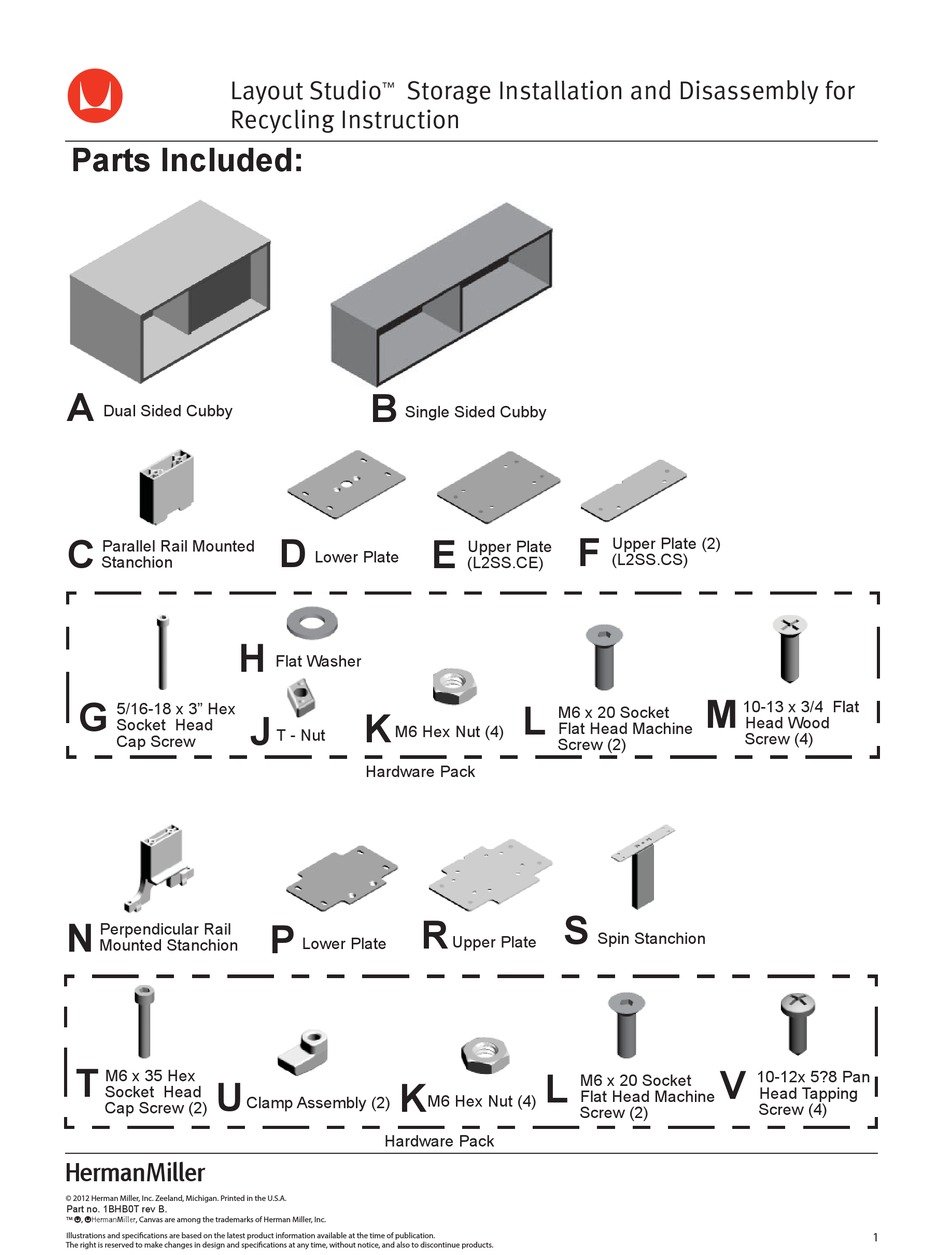

- Page 1 Layout Studio Storage Installation and Disassembly for ™ Recycling Instruction Parts Included: Dual Sided Cubby Single Sided Cubby Upper Plate (2) Parallel Rail Mounted Upper Plate Lower Plate (L2SS.CS) Stanchion (L2SS.CE) Flat Washer 10-13 x 3/4 Flat 5/16-18 x 3” Hex...
-
