Headway Y-Leg Table Installation and
™
Disassembly for Recycling Instructions
How to assemble your Y-Leg Table.
Tools Required
Power Driver
Phillips Bit
Ratchet Wrench
Tape Measure Safety Glass
Single Piece Work Surface Table:

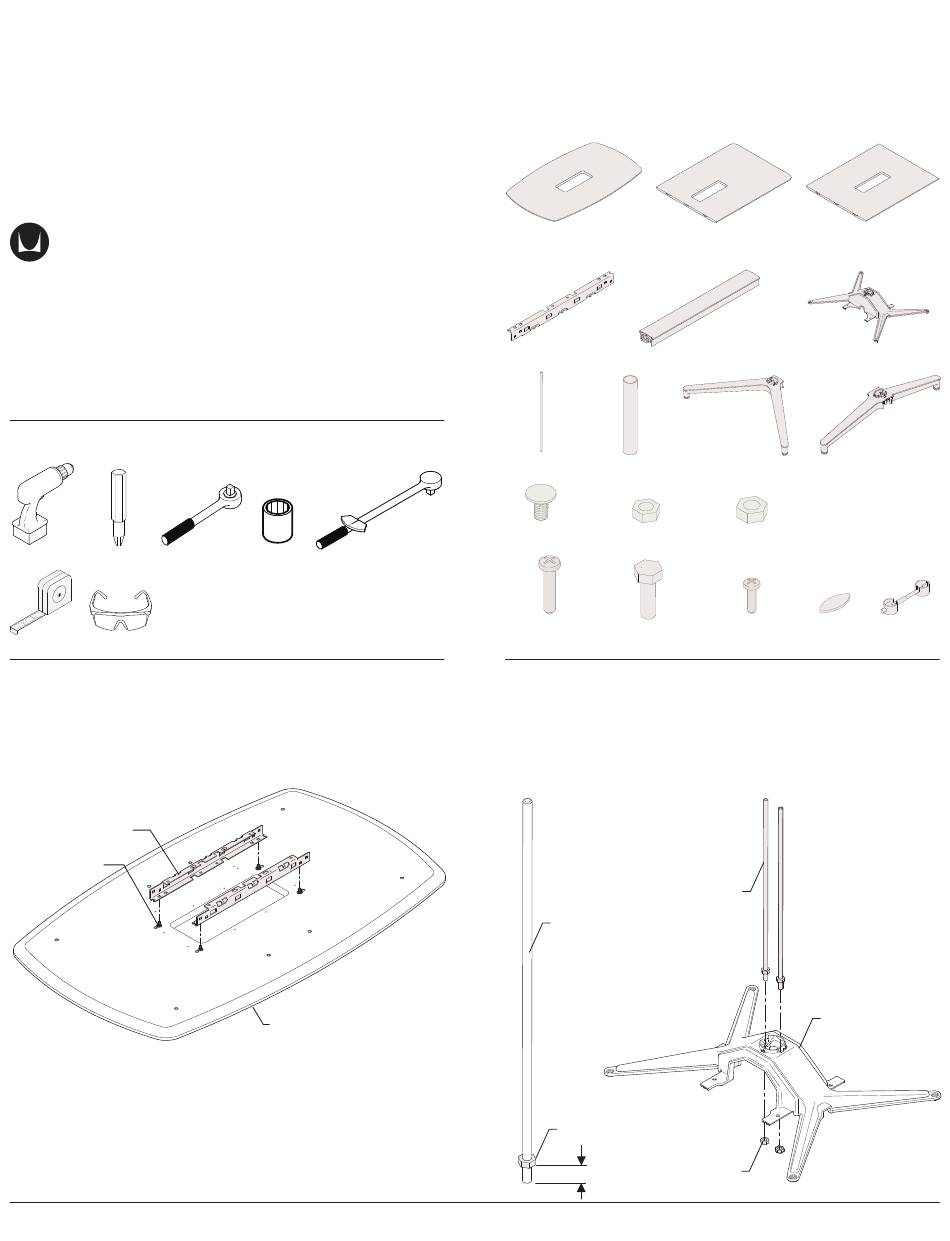

Step 1
1.1 Place Worksurface on clean padded surface.
1.2 Insert Carriage Bolts through holes in bottom of 2 Rails.
1.3 Place Rails in approximate positon on bottom side of Work Surface.
Rail
Carriage Bolt
Note: For Tables with one piece tops; build table upside down or in upright
position.
For tables with two or three piece tops; build table in upright position.
HermanMiller
13 mm Socket
Torque Wrench
Worksurface
Parts Included
DP1AY., DP2AY., DP1BY., DP2BY., DP1CY., DP2CY., DP1DY., DP2DY.,
DP3Y., DP4Y.
Single Worksurface
(For Table with 2 or 3 Sections)
Rail (2-6)
Stretcher (1-3)
Threaded Rod (4,6,8) Leg Tube (2,3,4)
M8 x 16 Carriage
M8 Hex Nut (4,8,12)
Bolt (4,8,12)
#14-10 x 1 Pan Head M10 x 25 Hex Head
Screw (4 per leg)
Bolt (2-6)
Step 2
2.1 Spin M10 Hex Nuts approximately 1.25" onto (2) Threaded Rods.
2.2 Insert that end rod into Arm Support .
2.3 Secure (2) Threaded Rod Assemblies to Arm Support with M10 Hex Nuts.
2.4 Repeat for as many Arm Supports as needed.
Threaded Rod Assembly
Threaded Rod
M10 Hex Nut
M10 Hex Nut
1.25"
1
1BR9RRrev A
Middle Worksurface
End Worksurface
(For Table with 3 Sections)
Support Arm (2-4)
End Foot (2)
Middle Foot (1 or 2)
M10 Hex Nut (12,18,24)
#10-12 x 3/4 Pan
Biscuit
Head Screw (varies)
Arm Support
Assembly Instructions
Biscuit Joiner
